Optical Digital Audio Output
Paddle Card
The Optical Digital Audio Output paddle card is installed in PCI slot #1.
A cable connects between CN301 on the Optical Digital Audio Output
paddle card and J23 on the system board.
An Optical Digital Audio Output connector provides the ability to
connect an audio device such as a DAT deck, minidisc player, or digital
signal processor (DSP) if the device is also equipped with an Optical
Digital Audio Output connector.
A cable connects between CN201 on the Optical Digital Audio Output
paddle card and J24 on the system board.
An S-Link (Control A1) connector provides the ability to connect an audio
device such as a CD changer or minidisc player if the device is also
equipped with an S-Link connector.

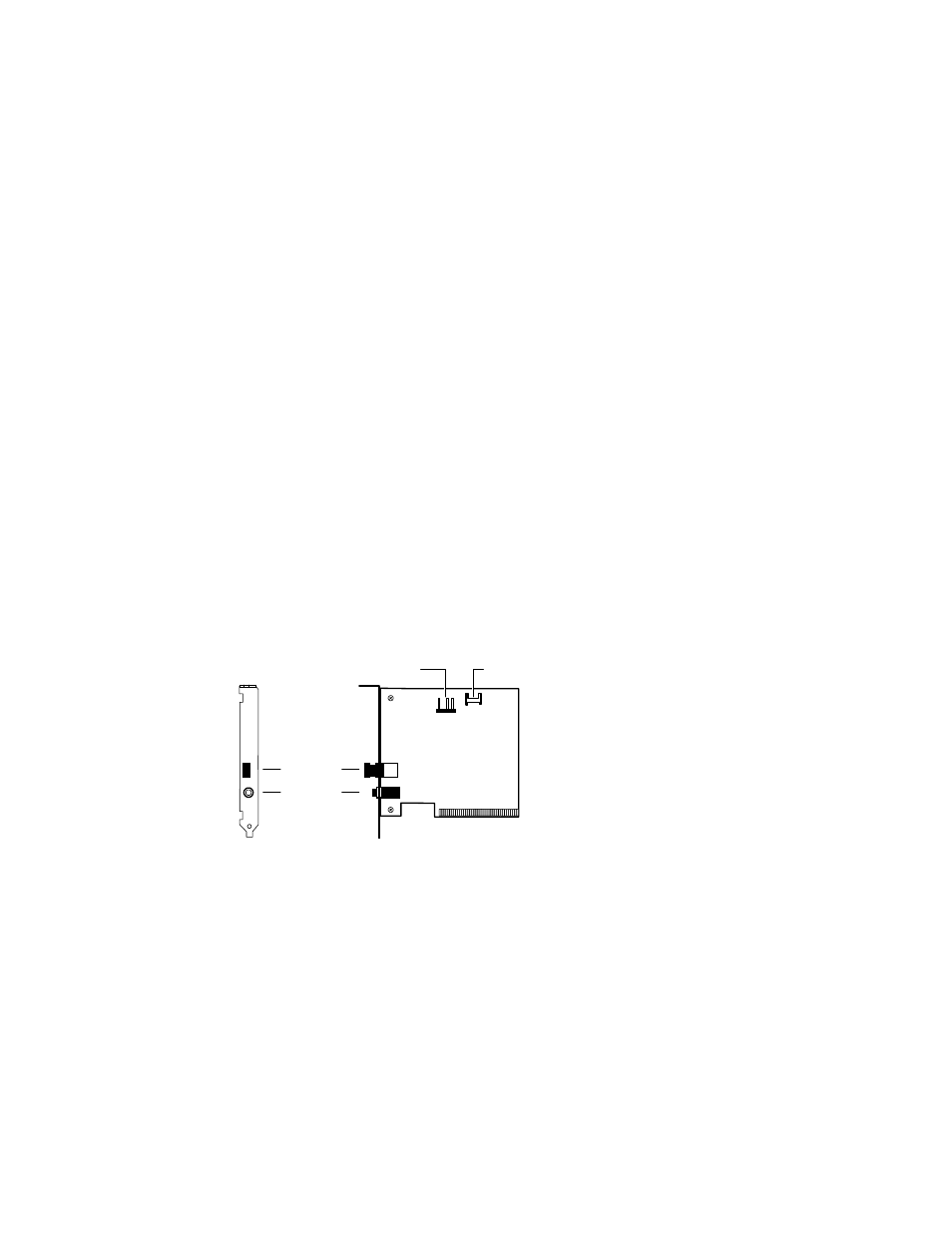

KY0035.VS
Optical Digital
Audio Output
S-Link
(Control A1)
CN301 CN201
