System Board
67
Optical Digital Audio Output Connector

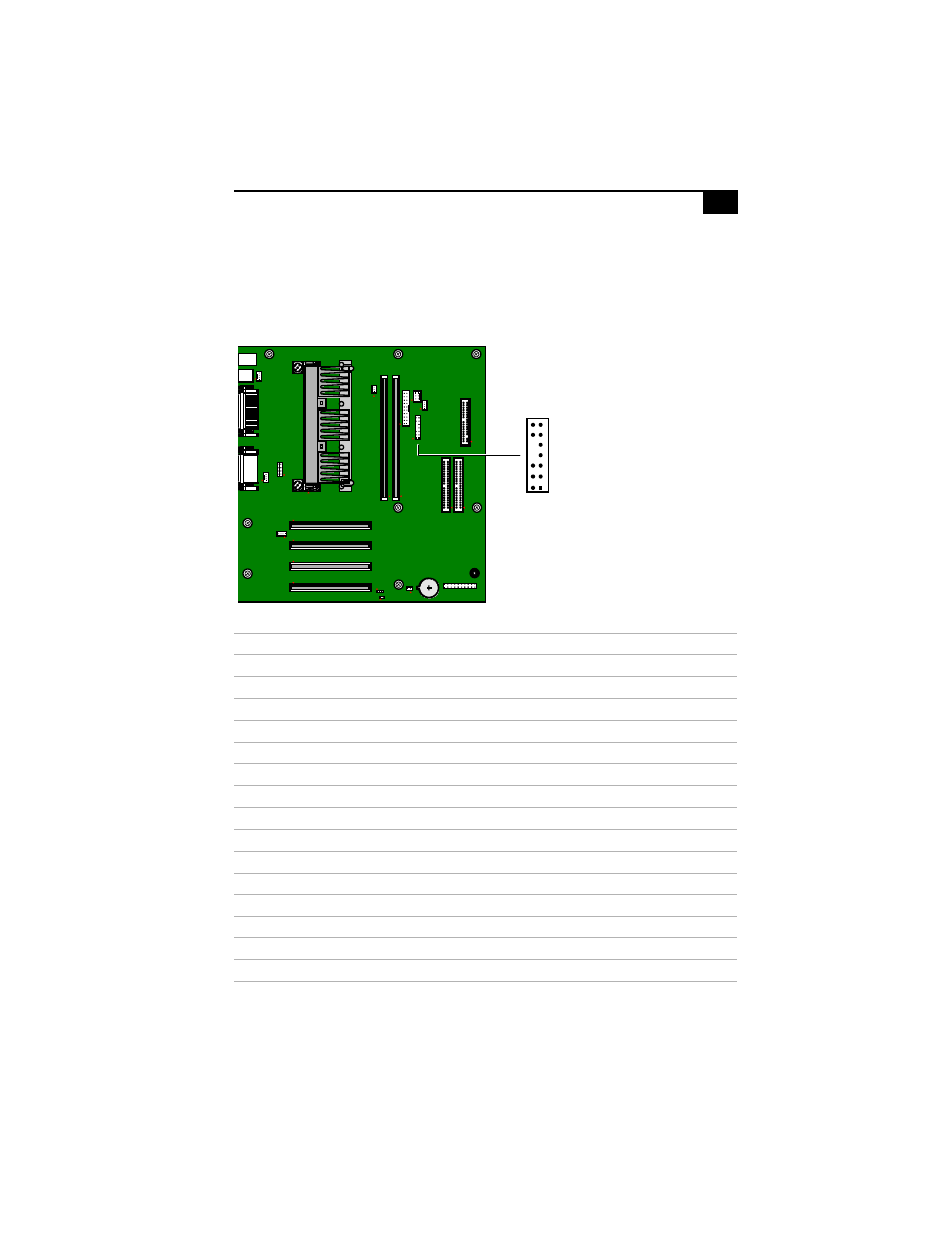

The Optical Digital Audio Output connector (J23) on the system board is
a 2 x 7-pin straight header connector and connects to CN301 on the
Optical Digital Audio Output Paddle card.
J23
Pin
Signal Name
1
GND
2
NC
3
GND
4
NC
5
GND
6
NC
7
GND
8
RESERVED (key)
9
NC
10
NC (key)
11
DOUT
12
GND
13
RET (GND)
14
GND
KY0063.VSD
J23
1
13
2
14
