Installing into video monitors – Sony BKM-21D User Manual
Page 45

21(E)

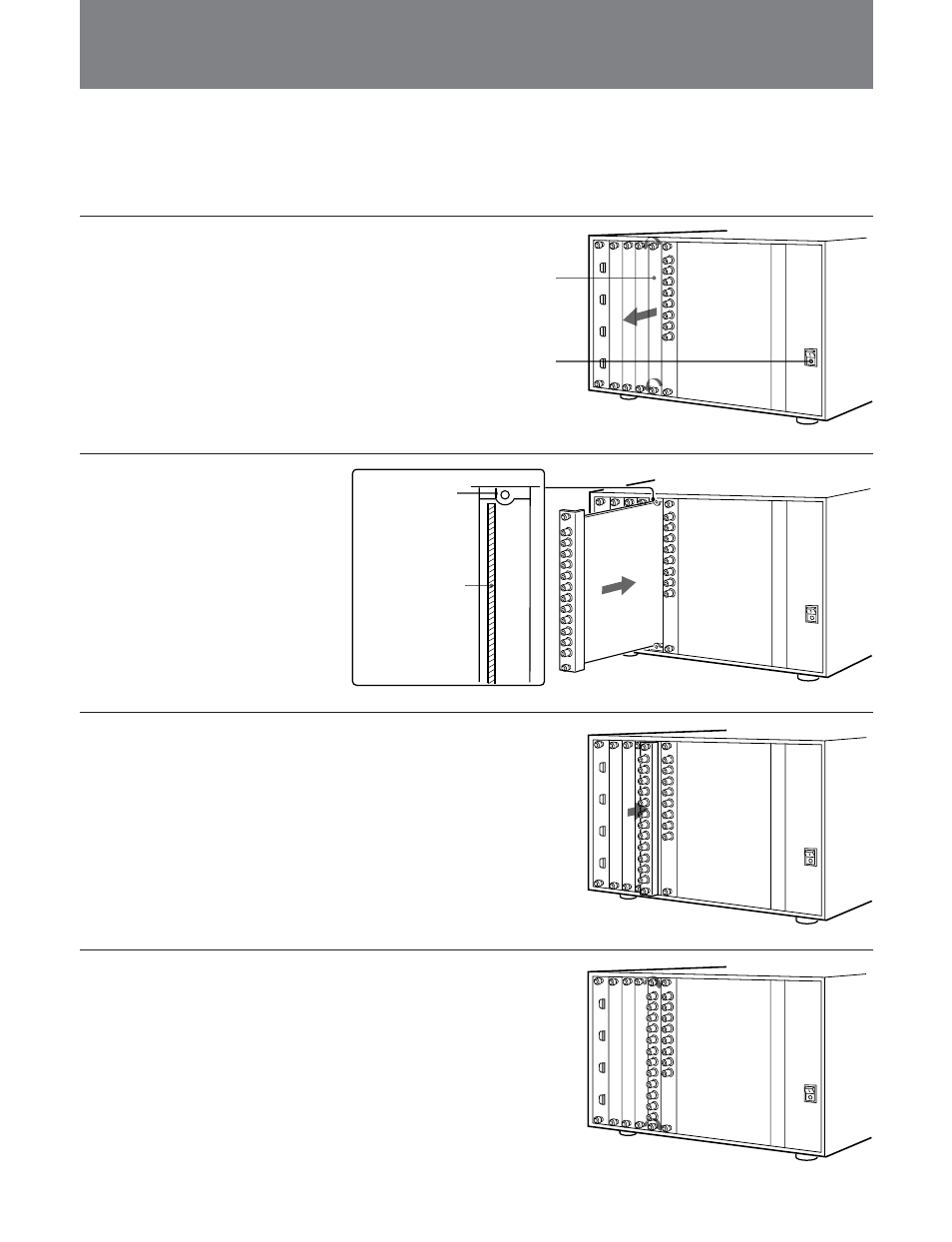

Installing into Video Monitors
Each adaptor can be installed in any input option slot.
Always turn your video monitor’s MAIN POWER
switch off before installing or removing adaptors.
1
Remove the cover of an input
option slot on the rear panel of
your video monitor.
2
Insert the adaptor below the
alignment mark on the left of
the upper screw hole of the
slot.
3
Push the adaptor in until it is
firmly seated in the connector
inside your video monitor.
4
Tighten the both screws to
retain the adaptor.
Check to be sure that the
video monitor’s MAIN POWER
switch is off.
Cover of an input option slot
Alignment mark
Insert the adaptor
below the mark.
