* You can watch the selected input image when you
connect the MONITOR OUT or HDMI OUT jack
to a TV (page 19). You can operate this receiver
using a GUI (Graphical User Interface) (page 39).

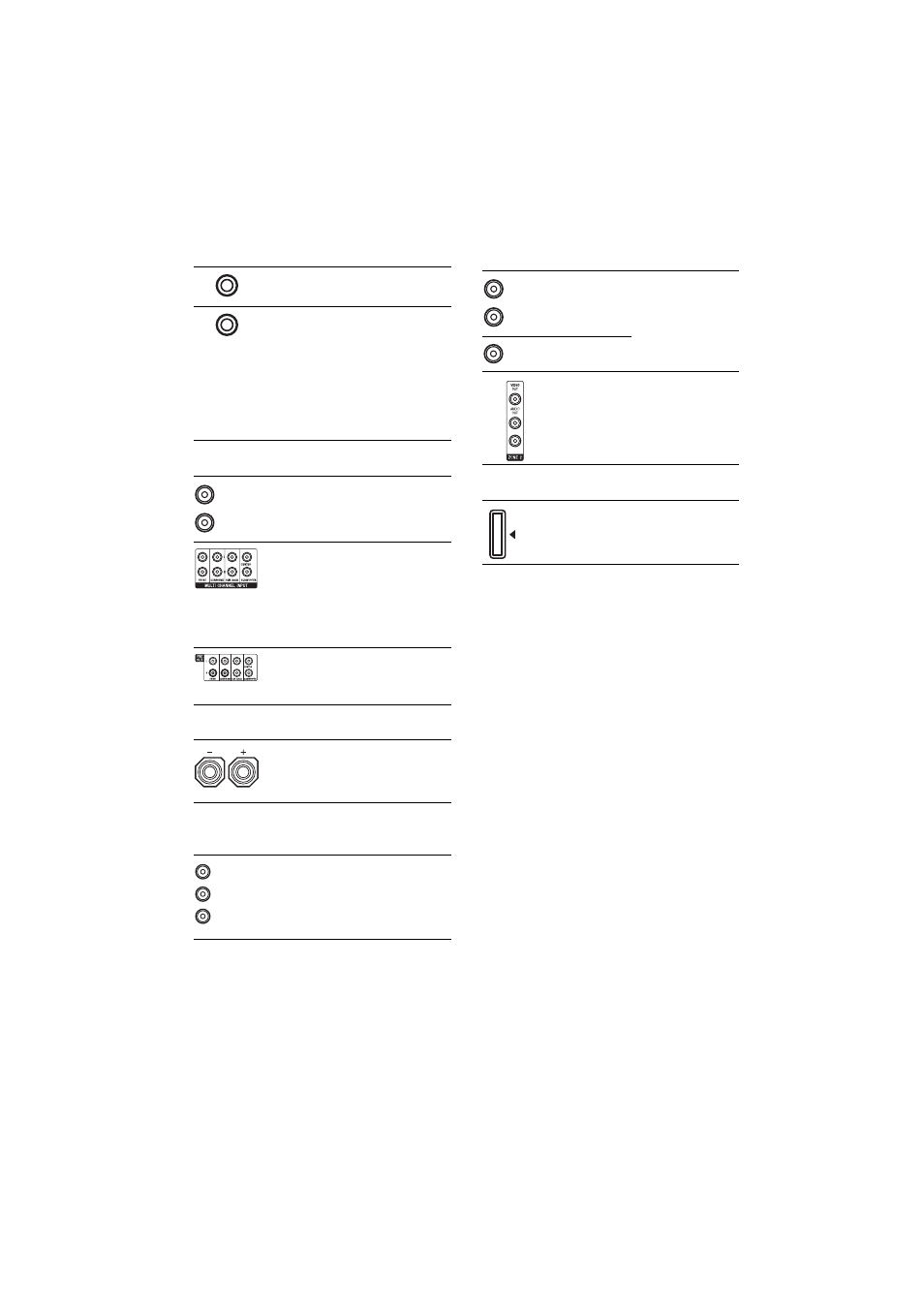

D Control jack for Sony equipment
and other external components
IR REMOTE
IN/OUT jacks Connect an IR
repeater (page 104).
TRIGGER
OUT jack Connects to an
interlock on/off of
the power supply of
other 12V
TRIGGER
compliant
components, or the
amplifier/receiver of
zone 2 (page 106).
E AUDIO INPUT/OUTPUT section
AUDIO IN/
OUT jacks Connect to a tape
deck or MD deck,
etc. (page 19, 21,
24).
MULTI
CHANNEL
INPUT jacks Connect to a Super
Audio CD player or
DVD player with an
analog audio jack for
7.1 channel or 5.1
channel sound (page
23).
PRE OUT jacks Connect to an
external power
amplifier (page 17).
F SPEAKERS section
Connects to speakers
(page 17).
G COMPONENT VIDEO INPUT/
OUTPUT section
Y, P
B
/C
B
, P
R
/
C
R
IN/OUT*
jacks
Connect to a DVD
player, TV, satellite
tuner, etc.
(page 19, 29, 30, 31).
Red (R)
White (L)
Green (Y)
Blue
(P
B/ C B )
Red
(P
R/ C R )
H VIDEO/AUDIO INPUT/OUTPUT
section
AUDIO IN/
OUT jacks Connect to a VCR or
a DVD player, etc.
(page 19, 29, 30, 31,
32).
VIDEO IN/
OUT* jacks
AUDIO OUT
jacks
VIDEO OUT
jack Connects to the
component in zone 2
(page 104).
I DMPORT
Connects to a Sony
DIGITAL MEDIA
PORT adapter
(page 21).
White (L)
Red (R)
Yellow
