System Board 57
i.LINK Connectors
The system board has two i.LINK (IEEE1394) connectors: a 4-pin
connector is accessible from the front panel, and a 6-pin connector is
accessible from the rear panel.
Use the front-panel connector to connect to devices that use a 4-pin
i.LINK (IEEE1394) connector. Use the rear-panel connector to connect to
devices that use a 6-pin
*
i.LINK (IEEE1394) connector.
* A 6-pin i.LINK connector can supply power from the computer to the device if the device also has a
6-pin i.LINK connector. A 4-pin i.LINK connector cannot supply power to a device.

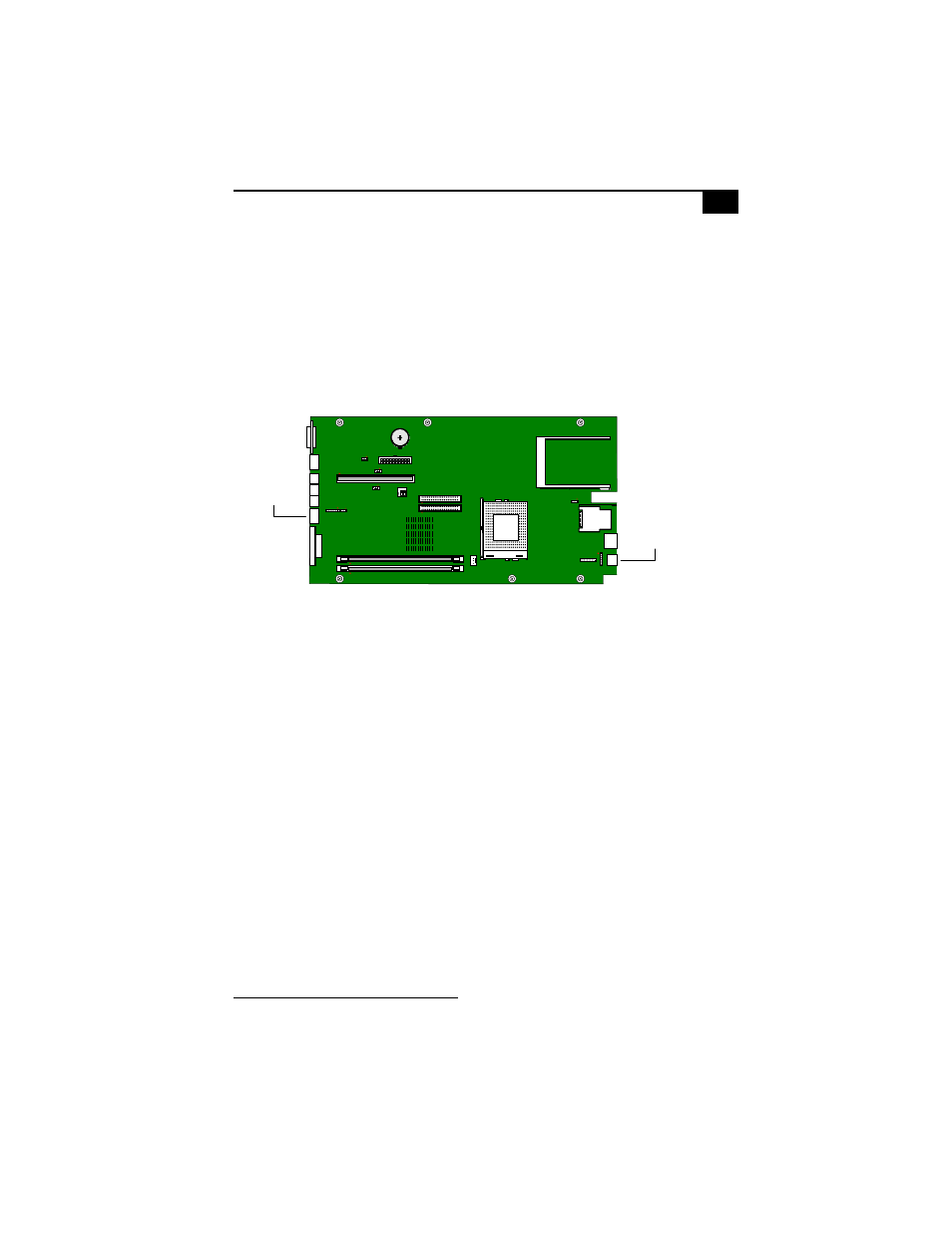

O N 1 2
i.LINK
(rear panel)
MAN001A.VSD
i.LINK
(front panel)
