VAIO Slimtop™ Reference Manual 12

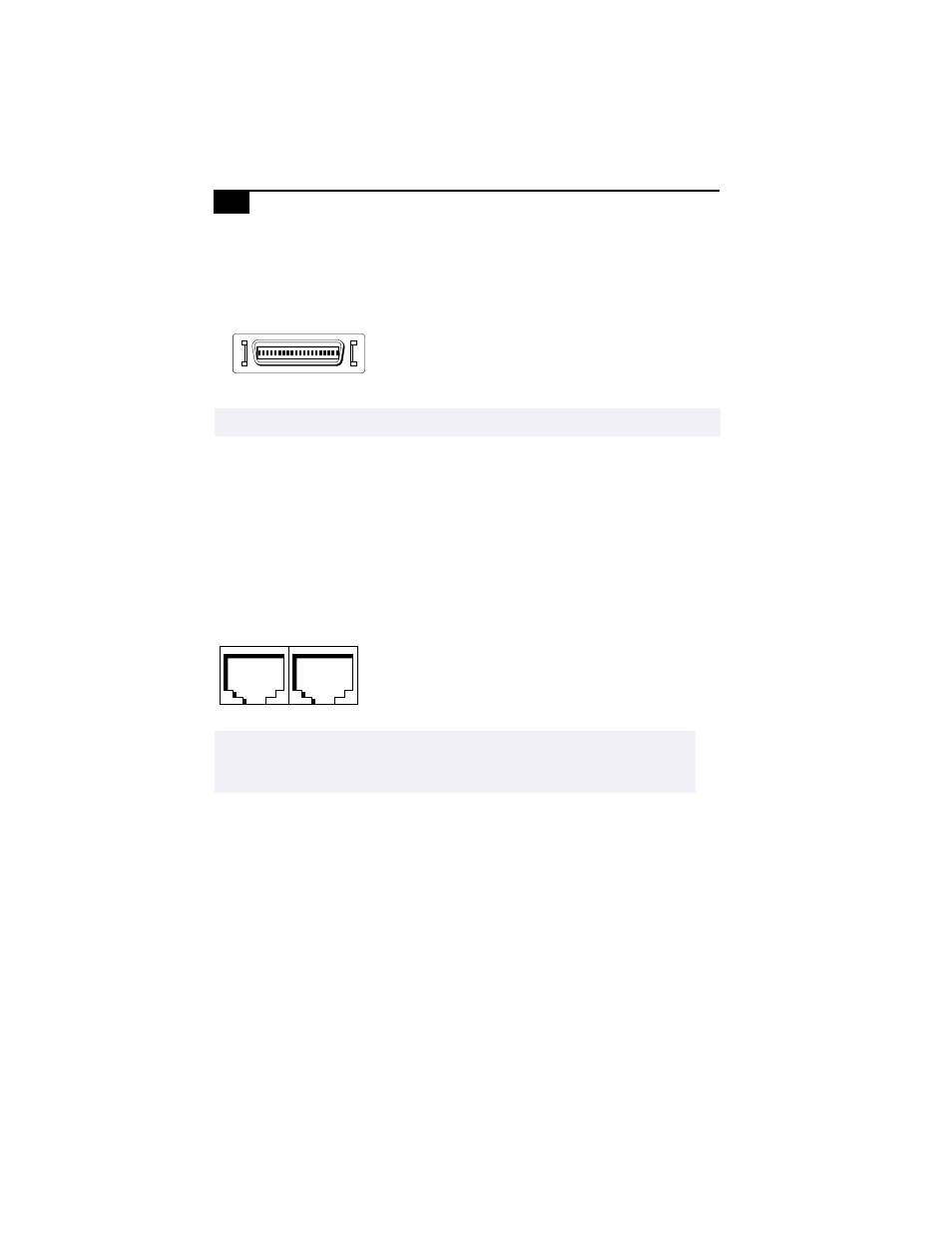

LCD
The LCD connector is a 32-pin female MDR-type connector and is located
on the rear panel.
LINE and PHONE
The LINE and PHONE jacks are physically identical and have identical
connections. They are standard RJ-11 female phone jacks. However, the
LINE jack is for connecting to a telephone line that comes from the wall
jack, and the PHONE jack is for connecting the computer to a telephone.
These jacks are located on the Modem plug-in card.
These connectors are located on the Modem plug-in card and are
accessible from the rear panel.
!
Do not connect any LCD monitor other than the Sony VAIO Slimtop LCD monitor.
✍
Accidentally plugging a phone line from the wall into the modem’s PHONE jack, and a
telephone into the LINE jack, will not damage the modem card or telephone equipment.
However, the modem will not work correctly.
KY0004.VSD
LINE PHONE
KY0014.VSD
