Identifying Components 11

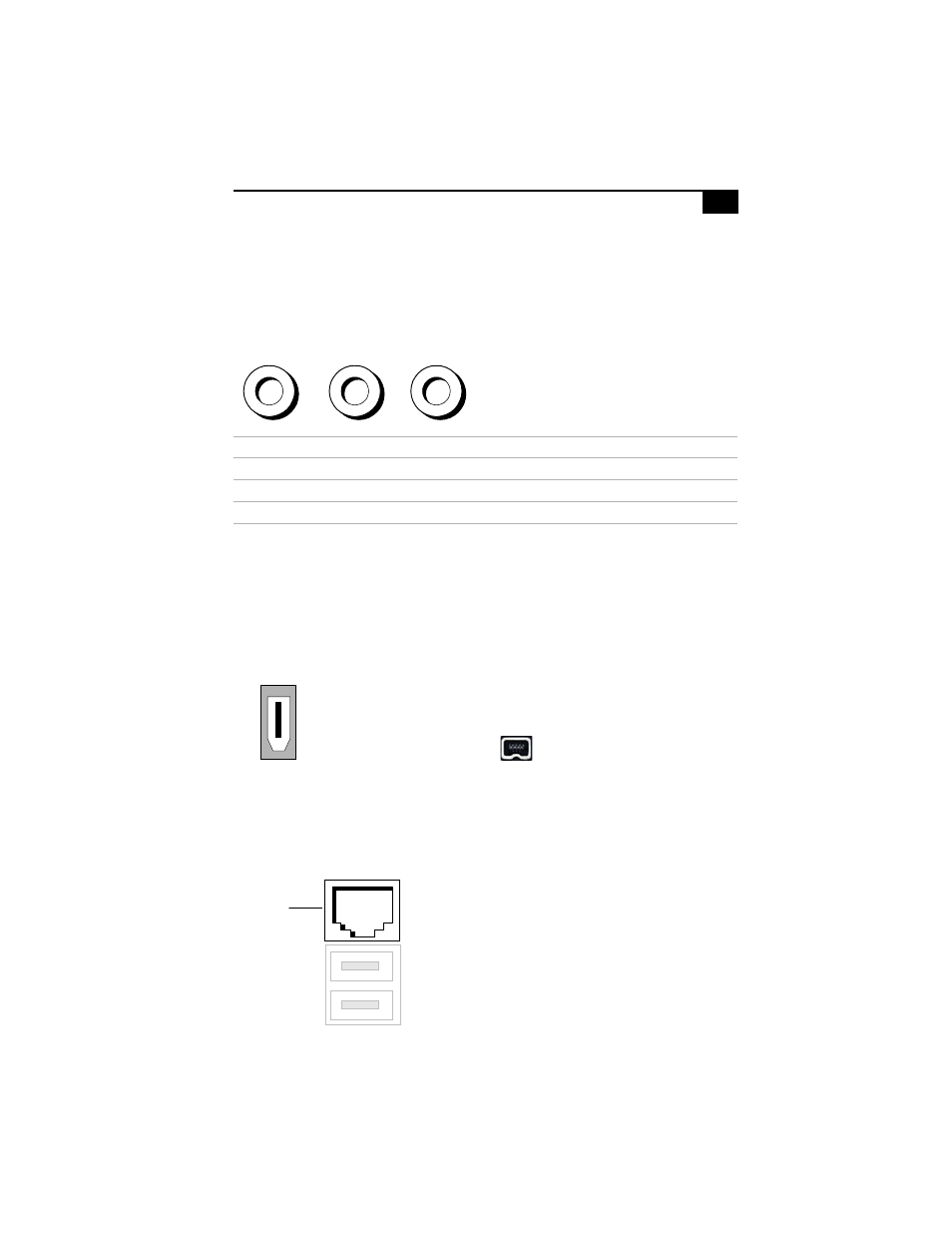

PHONE, LINE IN, and MIC
The PHONES, LINE IN, and MIC jacks are physically identical, but have
different connections. They are standard 3.5 mm stereo mini-jacks and are
located on the rear panel.
i.LINK (IEEE1394)
The 6-pin i.LINK (IEEE1394) connector on the rear panel can supply
power from the computer to a device if the device also has a 6-pin i.LINK
connector. The connector supplies 10V to 12V. The total power supplied
by the 6-pin i.LINK connector cannot exceed 6 watts.
Ethernet
The Ethernet connector on the rear panel connects to a 10Base-T/100Base-TX
Fast Ethernet network via an RJ-45 connector.
Connector Description
PHONES 1.0 Vrms output (typical) at 31 mW (32 ohm) output (max).
LINE IN 2.0 Vrms input (max), 50 Kohm impedance.
MIC Electret condenser microphone input.
KY0013.VSD
PHONES LINE IN MIC
6-pin i.LINK
(IEEE1394)
KY0087.VSD
On rear panel
4-pin i.LINK
(IEEE1394)
On front panel
Ethernet
