Q i (headphones)2 jack
(12)(38)
R REC (record) switch (9)
S i (headphones)1 jack
(12)(38)
T N (play) button (10)(13)

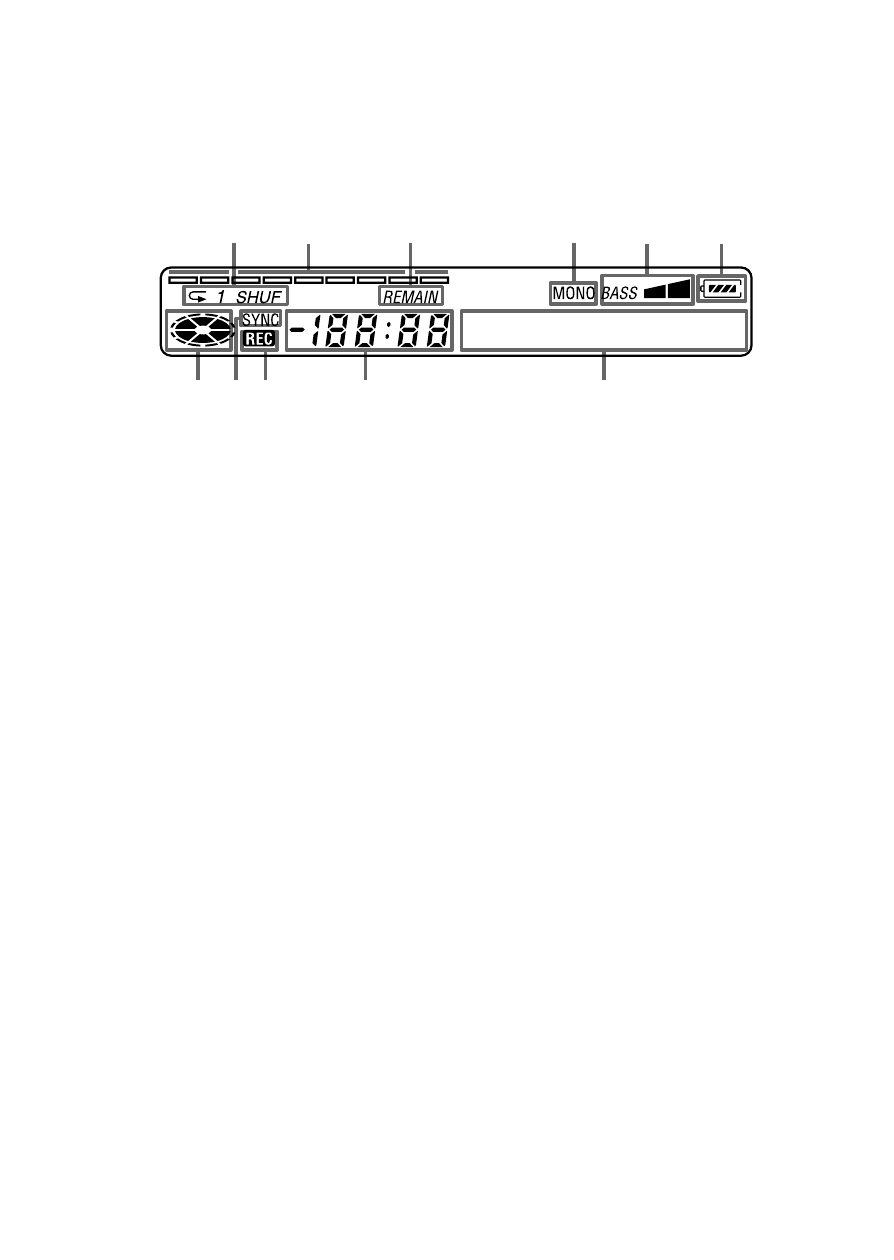

The display window
A Play mode indication (31)
Shows the play mode of the
MD.
B Level meter (24)
Shows the volume of the
MD being played or
recorded.
C REMAIN (remaining time/
tracks) indication (25)(35)
Lights up along with the
remaining time of the track,
the remaining time of the
MD, or the remaining
number of tracks.
D MONO (monaural)
indication
E Mega bass indication (32).
F Battery indication (54)
Shows approximate battery
condition.
G Disc indication
Shows that the disc is
rotating for recording,
playing or editing an MD
H SYNC (synchro-recording)
indication
I REC indication (9)
Lights up while recording.
When flashing, the recorder
is in record standby mode.
J Time display
K Character information
display (26)(31)
Displays the disc and track
names, error messages, track
numbers, etc.
H
D E F
G I K J
A C B
