Chapter 3 Jumper Settings and Connectors
35
3.2 CPU Installation
You can install a Pentium® III CPU up to 850 MHz or Celeron ™ CPU
up to 700 without setting any frequency ratio or voltage.
3.3 COM-port Interface
The IPPC-9120/9150 provides four serial ports (COM1, 3, 4: RS-232;
COM2: RS-232/422/485) in one COM port connector.
3.3.1 COM2 RS-232/422/485 setting (JP3, JP4, JP5)
COM2 can be configured to operate in RS-232, RS-422, or RS-485
mode. This is done via JP3, JP4 and JP5.

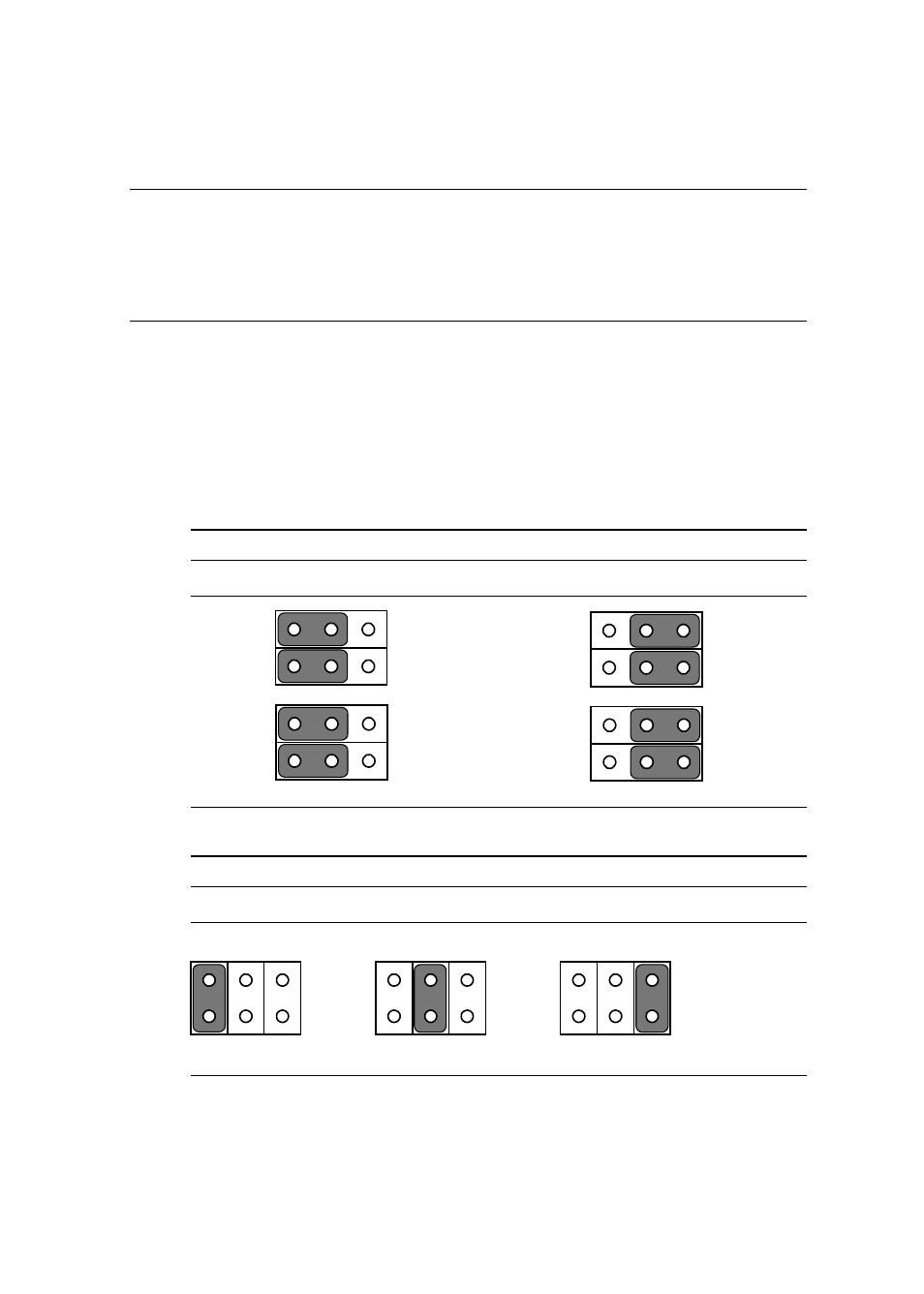

Table 3-3: COM2 RS-232/422/485 setting (JP3, JP4)
*RS-232
RS-422/485
* default setting
Table 3-4: COM2 RS-232/422/485 setting (JP5)
*RS-232
RS-422
RS-485
* default setting
The IRQ and the address ranges for COM1, 2, 3, and 4 are fixed.
2
6
1
5
2
6
1
5
JP4
JP3
2
6
1
5
2
6
1
5
JP3
JP4
2
4
6
1
3
5
2
4
6
1
3
5
2
4
6
1
3
5
