Appendix C Pin Assignments

139

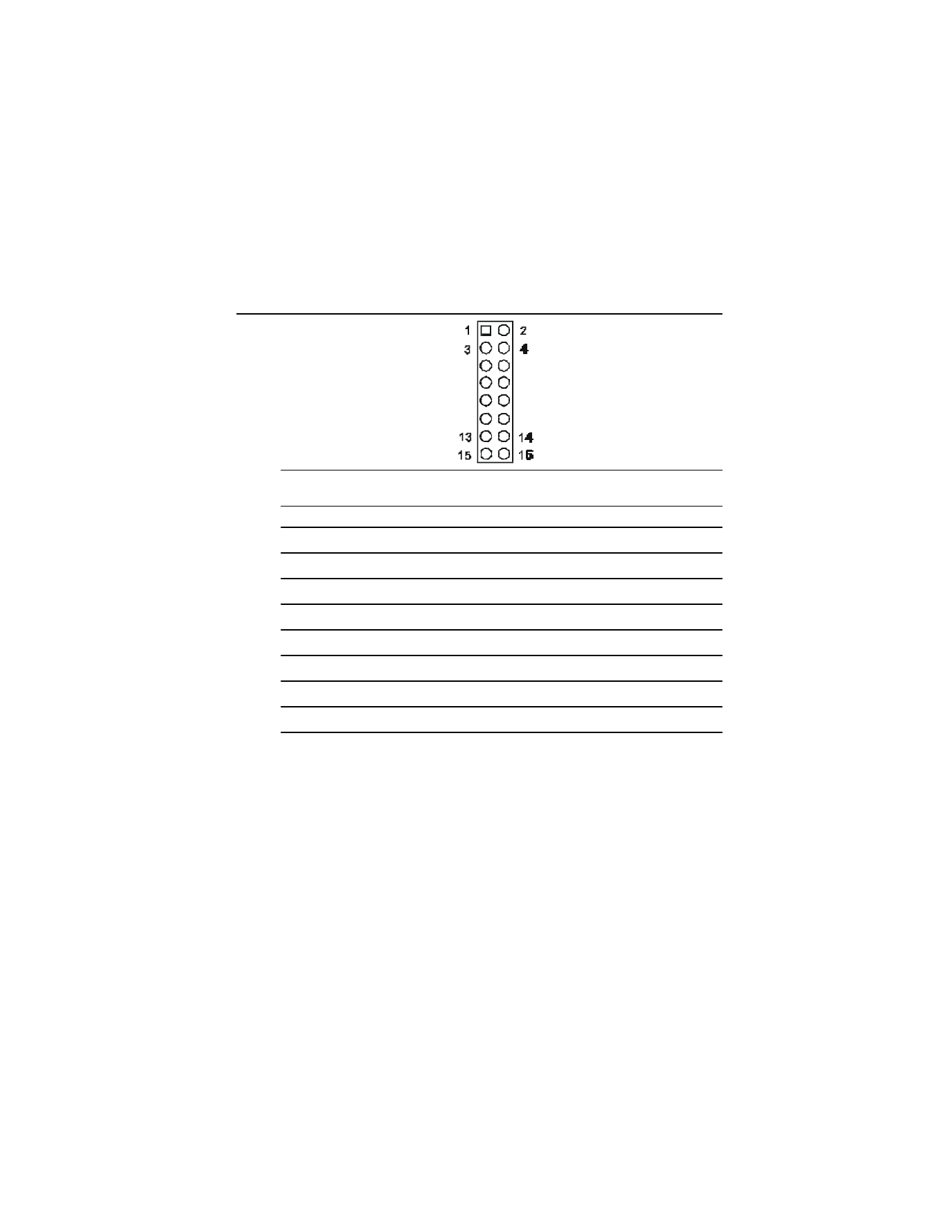

C.11 Internal COM4, mouse and touch

screen power connector (CN23)

Table C-11: Internal COM4, mouse and touch screen

power connector (CN23)

Pin

Signal

Pin

Signal

1

NRLSD

2

DSR

3

NRX

4

RTS

5

NTX

6

CTS

7

NDTR

8

RI

9

GND

10

GND

11

MSDAT

12

EXT MSDAT

13

MSCLK

14

EXT MSCLK

15

V

cc

16

V

cc
