Sony PCG-SRX87 - Manual (Page 91)

Removing a Memory Module
91

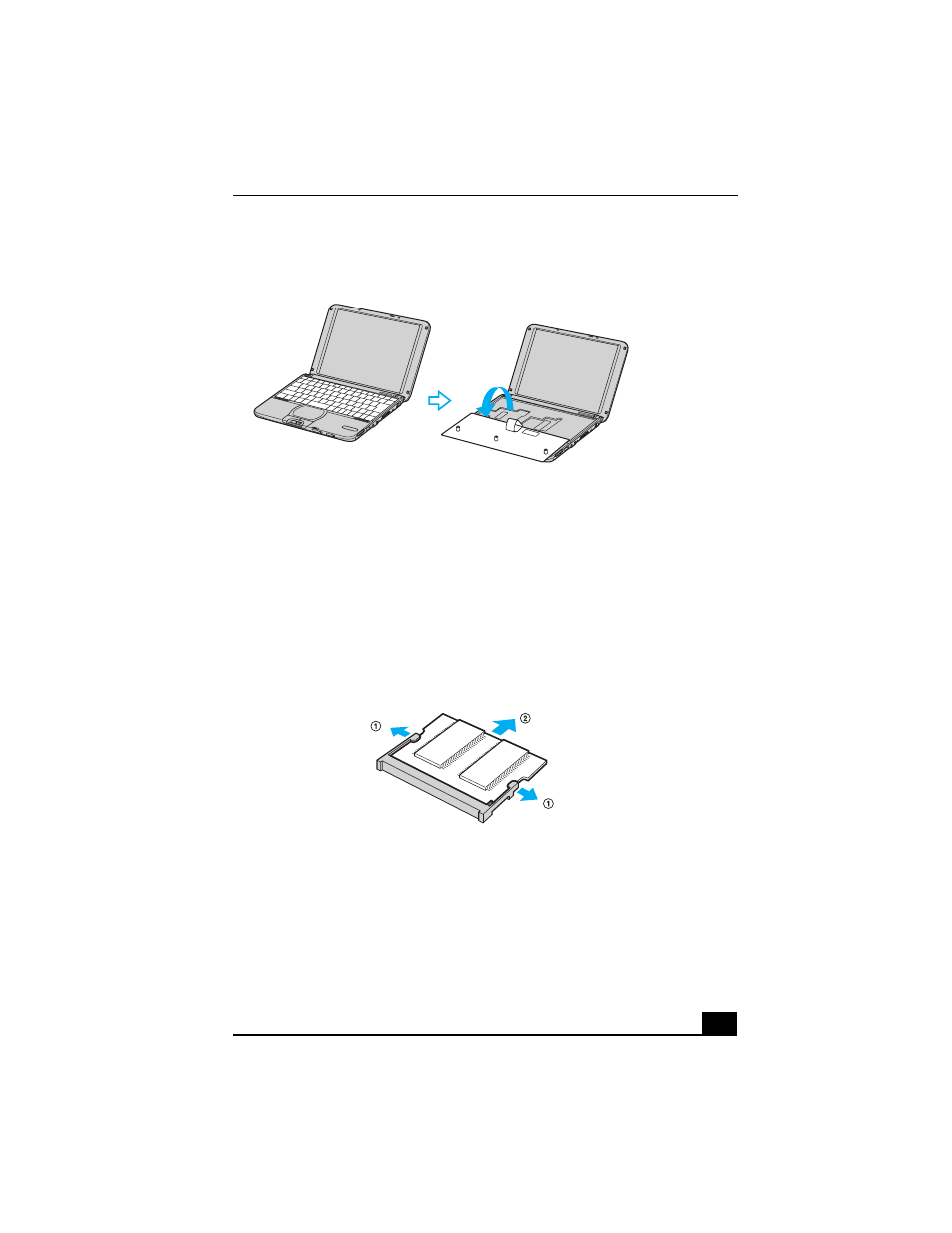

7 Lift the keyboard from the LCD display side.
8 Gently turn the keyboard over the touchpad. Take care not to detach the
cable when lifting the keyboard.
9 Touch a metal object (such as the connector panel on the back of your
computer) to discharge static electricity.
10 Remove the memory module by pulling out the tabs (see arrows No. 1), and
pulling out the module in the direction of arrow No. 2.
11 Gently replace the keyboard, then press it into your computer.
12 Close the computer cover and replace the three (3) fastening screws on the
bottom of the computer.
Lifting the Keyboard
Removing a Memory Module
