6
ENGLISH

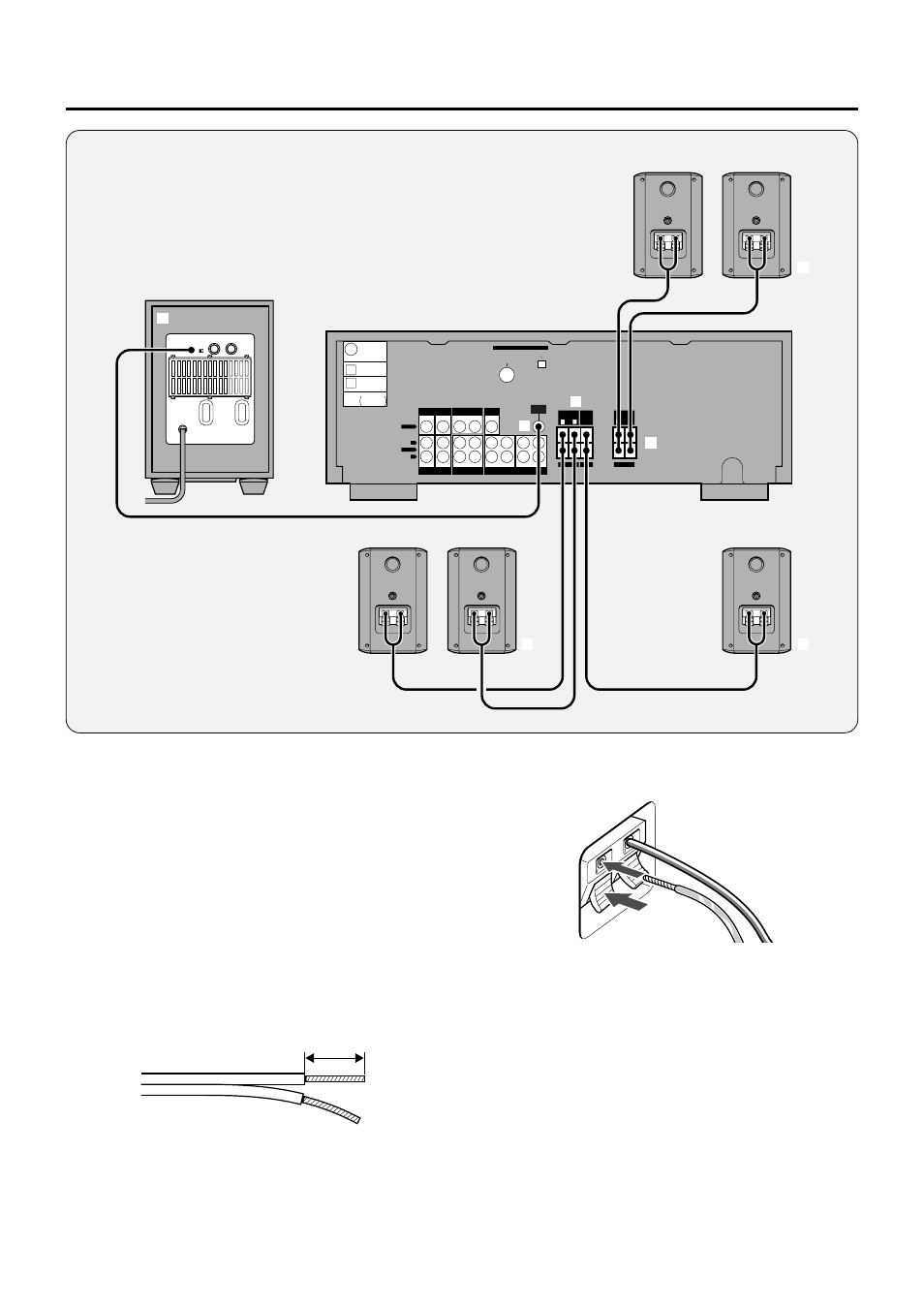

CONNECTION
Before connecting the speakers, turn off the power of your stereo
receiver and the sub woofer.
Refer to the operating instructions of the receiver as well.
[
A
SUB WOOFER]
Connect the INPUT jack on the sub woofer and the SUB
WOOFER output jack on the receiver with the supplied
connecting cord.
[
B
SATELLITE SPEAKERS]
Before connecting the speakers, cut the supplied speaker cord
to the desired length and strip approximately 10 mm of insulation
from each wire.
10 mm
1 Connect the cords to the speakers.
To make sure that the all channels are connected with the
same polarity, connect the cords as follows.
Blue striped cords: to the red or blue
+
terminals
Clear cords: to the
-
black terminals
2 Connect the other ends of the cords to the
speaker terminals on the receiver.
Front speaker cords: to the FRONT SPEAKERS terminals
Centre speaker cord: to the CENTER SPEAKER terminals
Rear speaker cords: to the SURROUND SPEAKERS terminals
Note that the blue stripe cords should be connected to the
+
(red) speaker terminals on the receiver (and the clear cords
to the
-
(black) terminals).
TAPE
VIDEO 1/MD
DVD
CD
IN
IN
IN
OUT
OUT
IN
IN
IN
IN
IN
IN
OUT
OUT
VIDEO OUT
AUX
MONITOR
VIDEO
COAXIAL
(VIDEO 2)
OPTICAL
(VIDEO 1)
OPTICAL
(DVD)
DIGITAL IN
PCM
/DOLBY DIGITAL
/DTS
AUDIO
L
R
ANTENNA
AM LOOP
VIDEO 1/MD
VIDEO 2
/LD/TV
VIDEO 2
/LD/TV
DVD
0
9
0
9
0
9
0
9
FM 75
Ω
(COAXIAL)
SUB
WOOFER
IMP: 8
Ω
CENTER
SPEAKER
IMP: 8
Ω
IMP: 8
Ω
SURROUND
SPEAKERS
R
L
FRONT
SPEAKERS
R
L
B
B
A
A
B
B
B
Front speakers
Left
Right
A/V receiver (AV-NW30)
Centre speaker
Right
Left
Surround speakers
Sub woofer
