Installation
31 10" Modero Widescreen Touch Panels
9. Reconnect the terminal RJ-45, Ethernet, USB, and any optional audio/video wiring to their
respective locations (outside the conduit box) on either the NXA-AVB/ETHERNET Breakout Box,
Ethernet port, or NetLinx Master.
10. Reconnect the terminal power connector on the 12 VDC-compliant power supply and apply power.
Installing the NXD into drywall using Expansion Clips
Expansion clips are mounted through the three oval holes located along the rim of the NXD-1000Vi. As
the screw is tightened, the clip bends toward the insertion hole and into the wall. This bending creates a
"grip" on the wall by either pressing onto the wall or by securing the drywall between the housing and
the drywall clip.
The most important thing to remember when mounting the NXD is that the outer frame (Mounting Tabs)
must be installed flush against the mounting surface.
Refer to SP-2259-03 for detailed installation dimensions (reproduced in FIG. 22).
It is recommended that you cutout the surface slightly smaller than what is outlined in the
installation drawings so that you can make any necessary cutout adjustments.
1. Prepare the area by removing any screws or nails from the drywall before beginning the cutout
process.g.
2. Cut out the drywall surface for the NXD Wall Mount unit using the dimensions shown in FIG. 22.
Be sure to cut out the three notches along the sides to accommodate the three corresponding drywall
expansion clips (included).

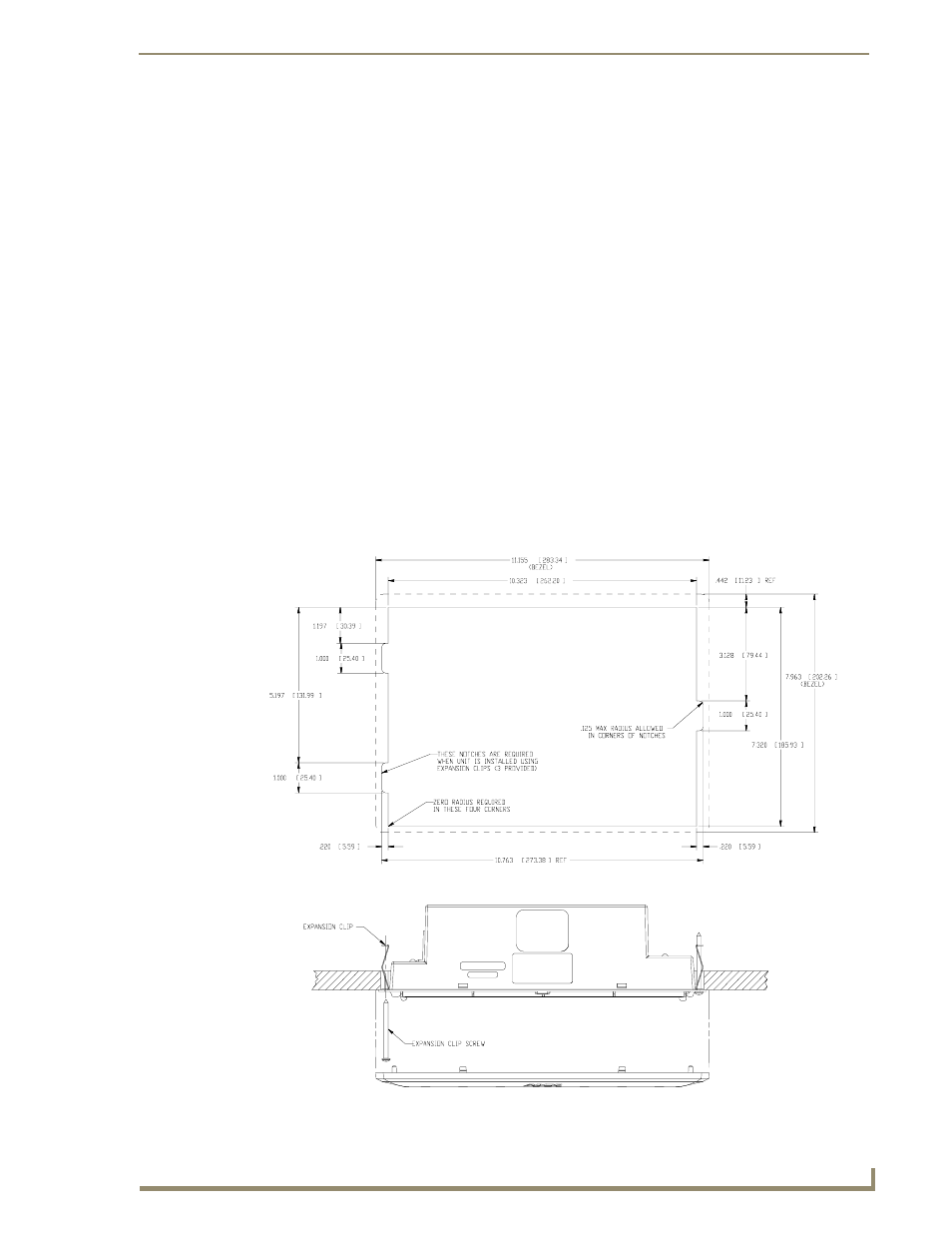

FIG. 22 NXD-1000Vi Wall Mount panel dimensions using expansion clips
