Service Information

4

U2751A User’s and Service Guide

37

Upon replacing the relay(s), reset the relay cycle count to
zero by issuing the following SCPI command:

DIAGnostic:RELay:CYCLes:CLEar (@)

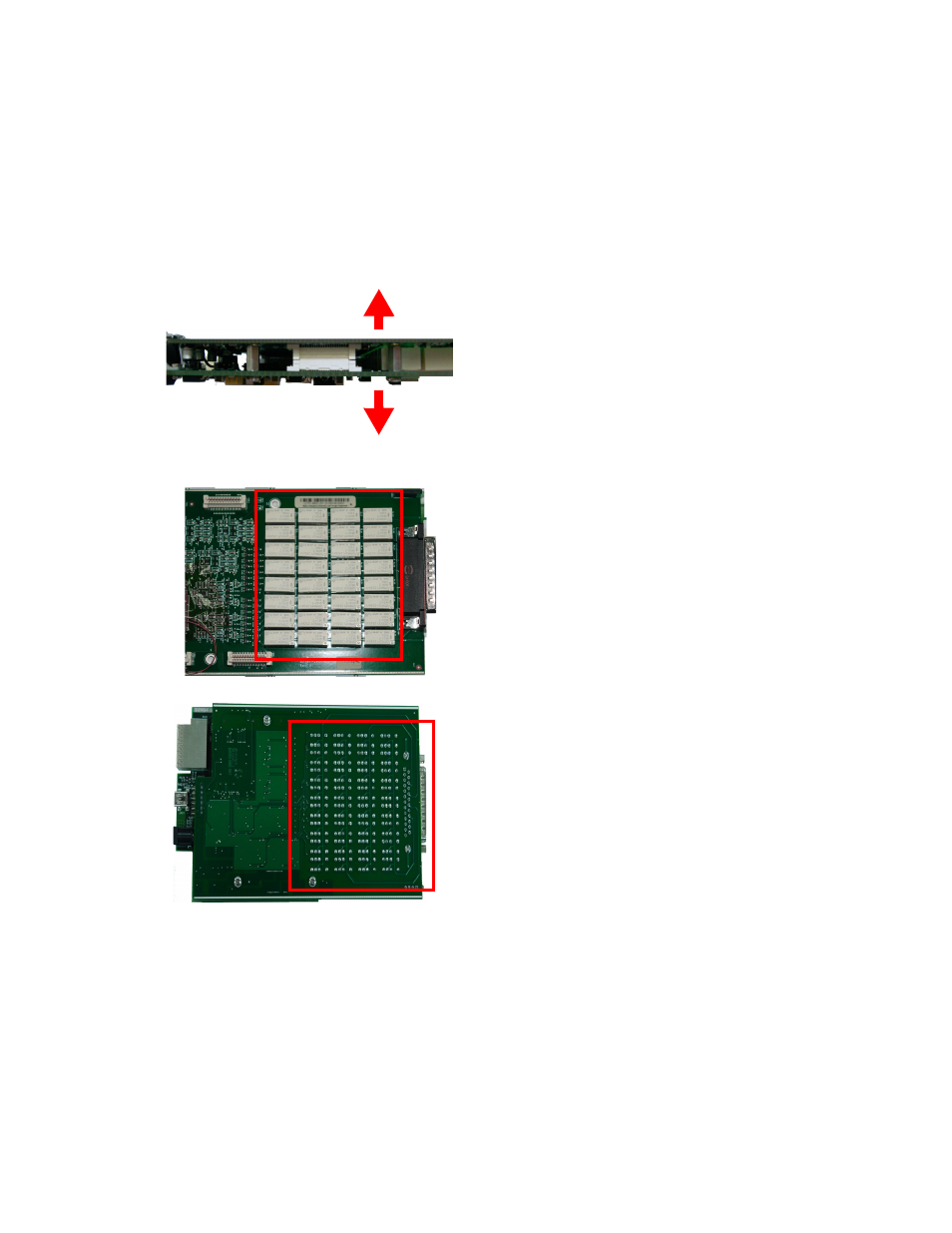

Separate the carrier and measurement
board.

There are 32 relays as shown.

Turn to the opposite side of the
measurement board and ensure that only the
defective relays are desoldered.
