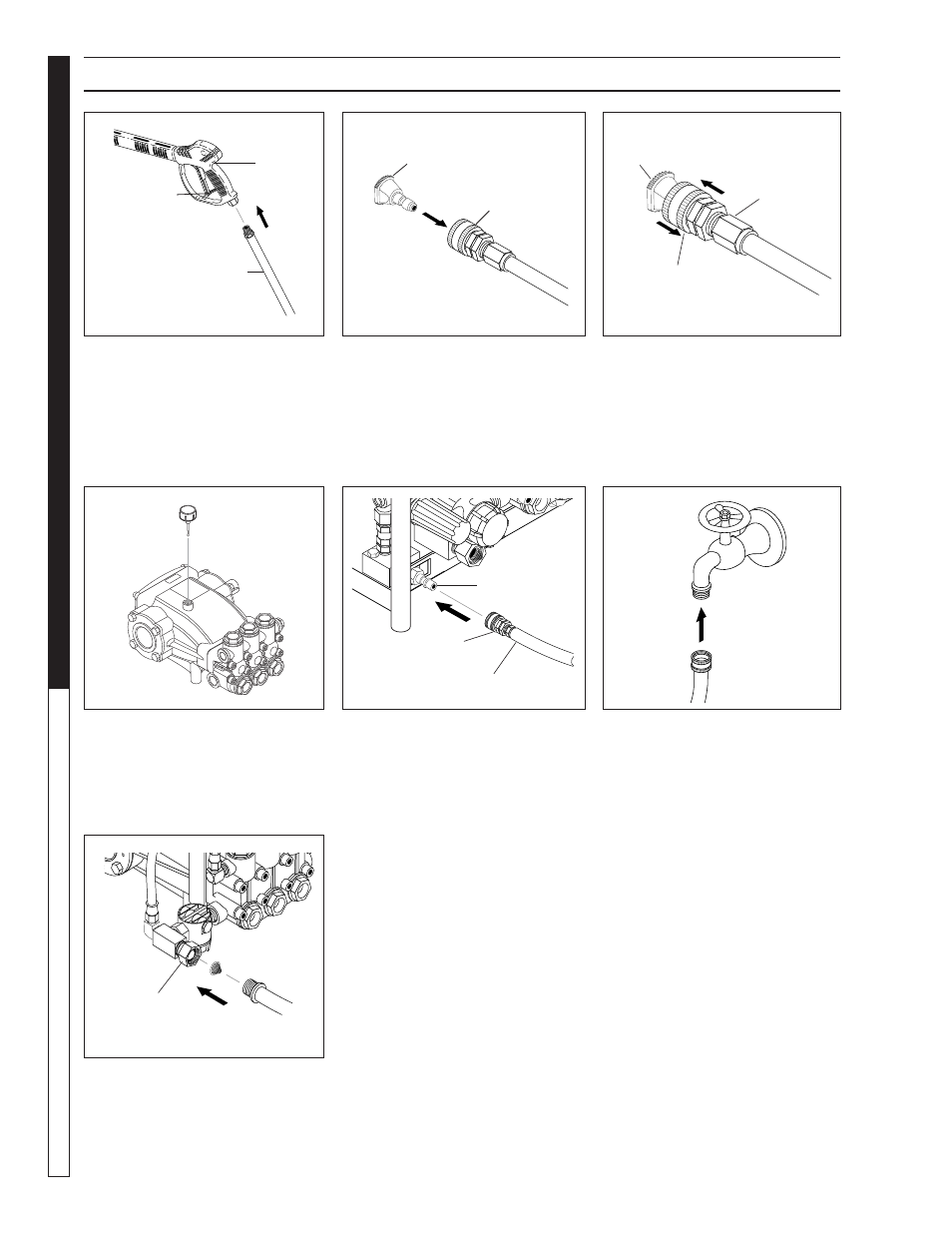

ASSEMBLY INSTRUCTIONS
STEP 1: Attach the high pressure
hose to the spray gun using tefl on
tape on hose threads. STEP 3: Release the coupler collar
and push the nozzle until the collar
clicks. Pull the nozzle to make sure
it is seated properly.
STEP 5: Connect the high pressure
hose to the pump discharge fi tting.
Push coupler collar forward until
secure.
STEP 2: Pull the spring-loaded col-
lar of the wand coupler back to insert
your choice of pressure nozzle.
STEP 6: Connect garden hose to
the cold water source.
STEP 7: Check inlet fi lters, remove
debris, then connect garden hose
to pump water inlet.
CAUTION: Do
not run the pump without water
or pump damage will result.
Safety
Latch
Spray
Gun
High Pressure
Hose
Wand
Coupler
Pressure
Nozzle
Pressure
Nozzle
Wand
Coupler
Wand
Collar
Discharge
Fitting
High Pressure Hose
Cold
Water
Source
Garden
Hose
Pump
Water Inlet
Garden
Hose
Coupler Collar
Dipstick
STEP 4: Remove shipping cap and
install oil dipstick. Check pump oil
level by using dipstick or observe
oil level in oil window (if equipped).
Use 20/40W non detergent oil.
