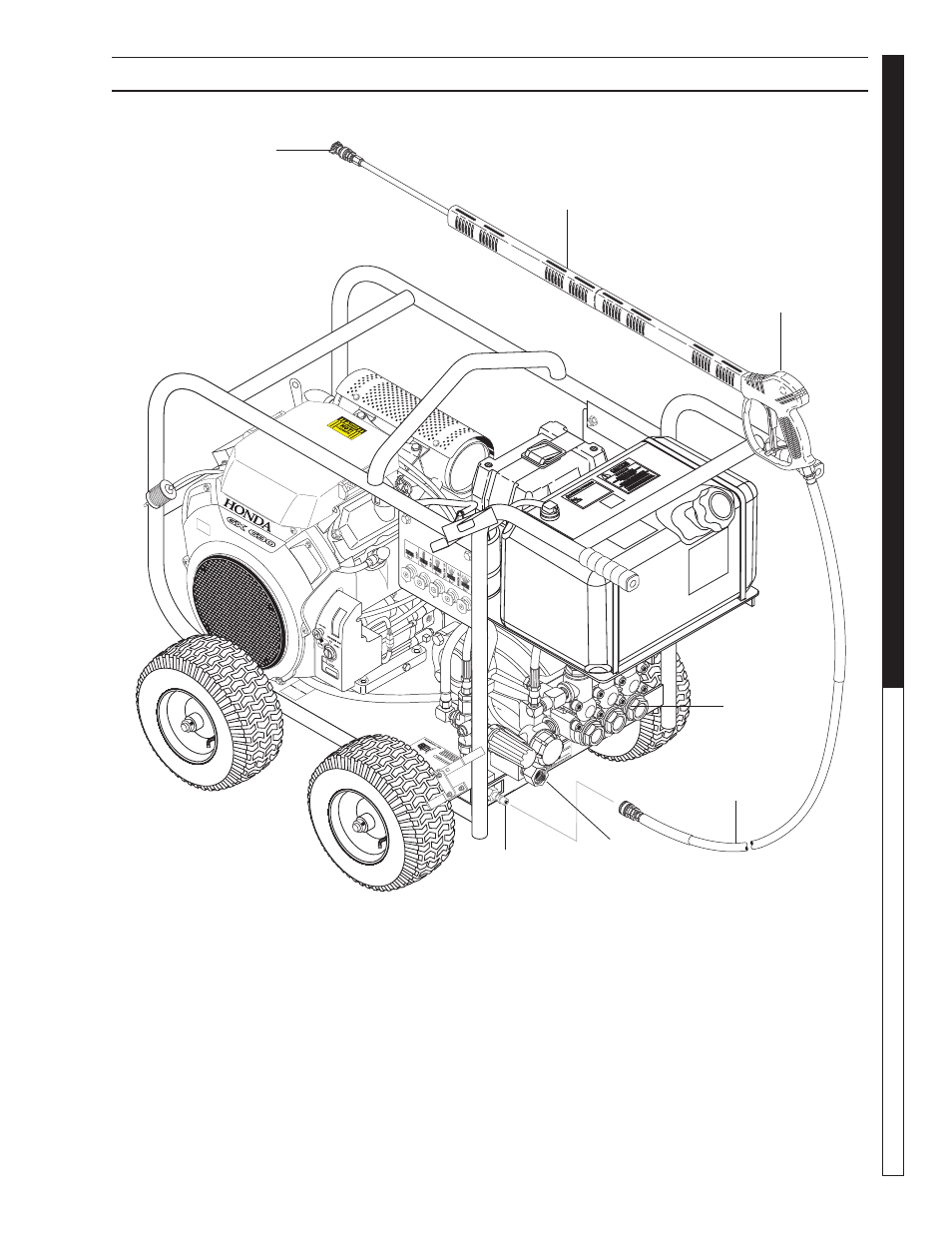

COMPONENT IDENTIFICATION — DUAL AXLE MODELS
Nozzle
Spray Gun
Wand
Water Inlet
High Pressure
Discharge
High Pressure
Hose
Pump
Pump — Develops high pressure.
Spray Gun — Controls the application of water and
detergent onto cleaning surface with trigger device.
Includes safety latch.
Detergent Injector — Allows you to siphon and mix
detergents (not shown).
Wand — Must be connected to the spray gun.
High Pressure Hose — Connect one end to water
pump discharge nipple and the other end to spray
gun.
Note: If trigger on spray gun is released for more
than 2 minutes, water will leak from valve. Warm
water will discharge from pump protector onto fl oor.
This system prevents internal pump damage.
