OPERATING INSTRUCTIONS (CON'T)
WARNING! Never replace
nozzles without engaging the
safety latch on the spray gun
trigger.

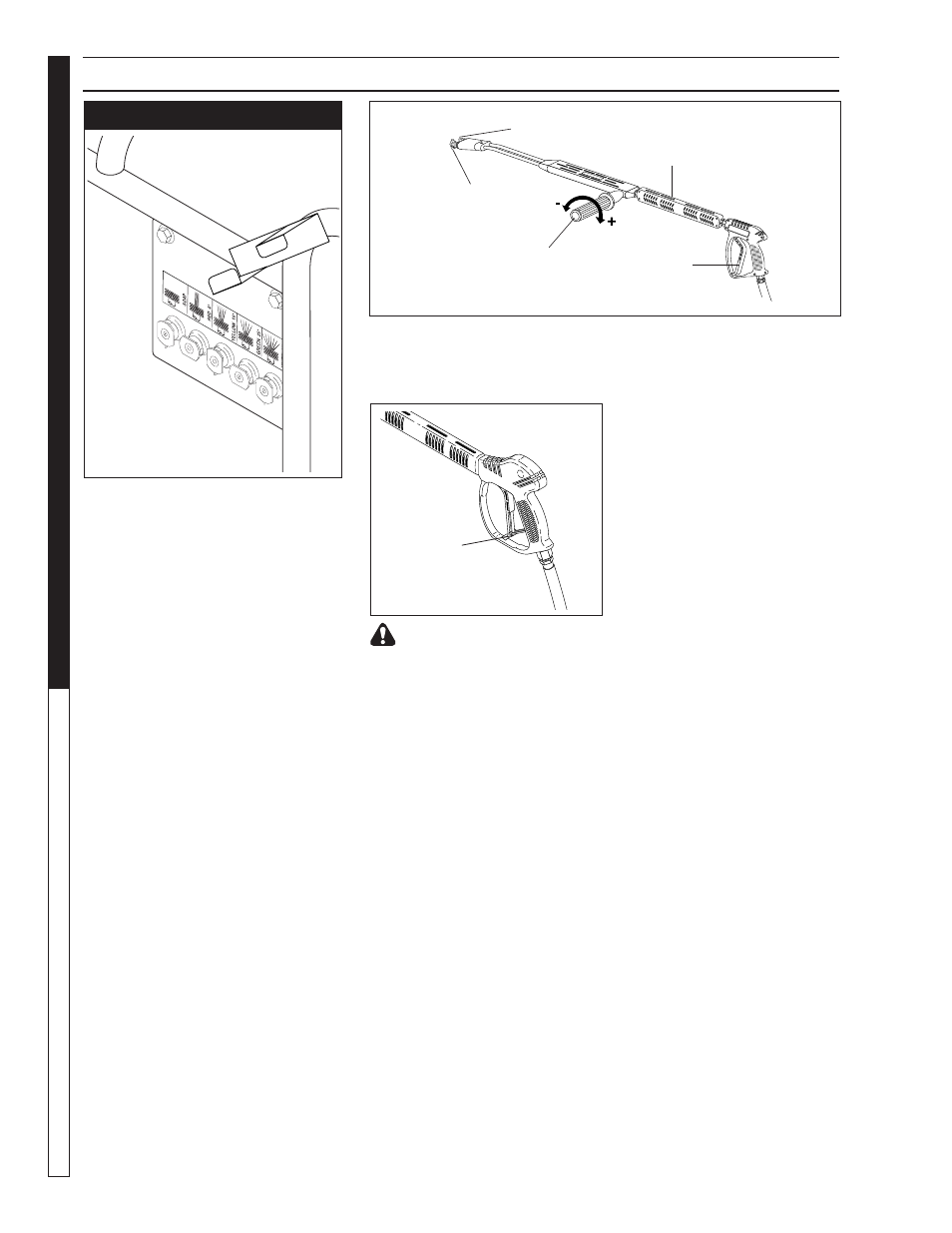

The fi ve color-coded quick connect
nozzles provide a wide array of spray
widths from 0° to 40° and are easily ac-
cessible when placed in the convenient
rubber nozzle holder, which is provided
on the front of the machine.
NOTE: For a more gentle rinse, select
the white 40° or green 25° nozzle. To
scour the surface, select the yellow 15°
or red 0° nozzle. To apply detergent
select the black nozzle.
NOZZLES
Safety
Latch
Selection of high or low pressure is accompanied by turning the handle.
Note: High pressure nozzle must be inserted at end of wand to obtain
high pressure. To apply soap read operator's manual.
Variable Pressure
Control Handle
Trigger
Variable Pressure
Wand (VP)
High
Pressure
Nozzle
Brass Soap
Nozzle
