8.913-996.0 • 8.914-452.0 • 9.807-624.0 • 8.919-013.0 • Rev. 11/13
OPERA
T
OR’S MANU
AL
PRESSURE W
ASHER
16
1
1
2
3
4
5
6
7
8
2
1
9
9
9
BD Versions
MP, BR, HD
Versions
Detergent Injector
Assembly

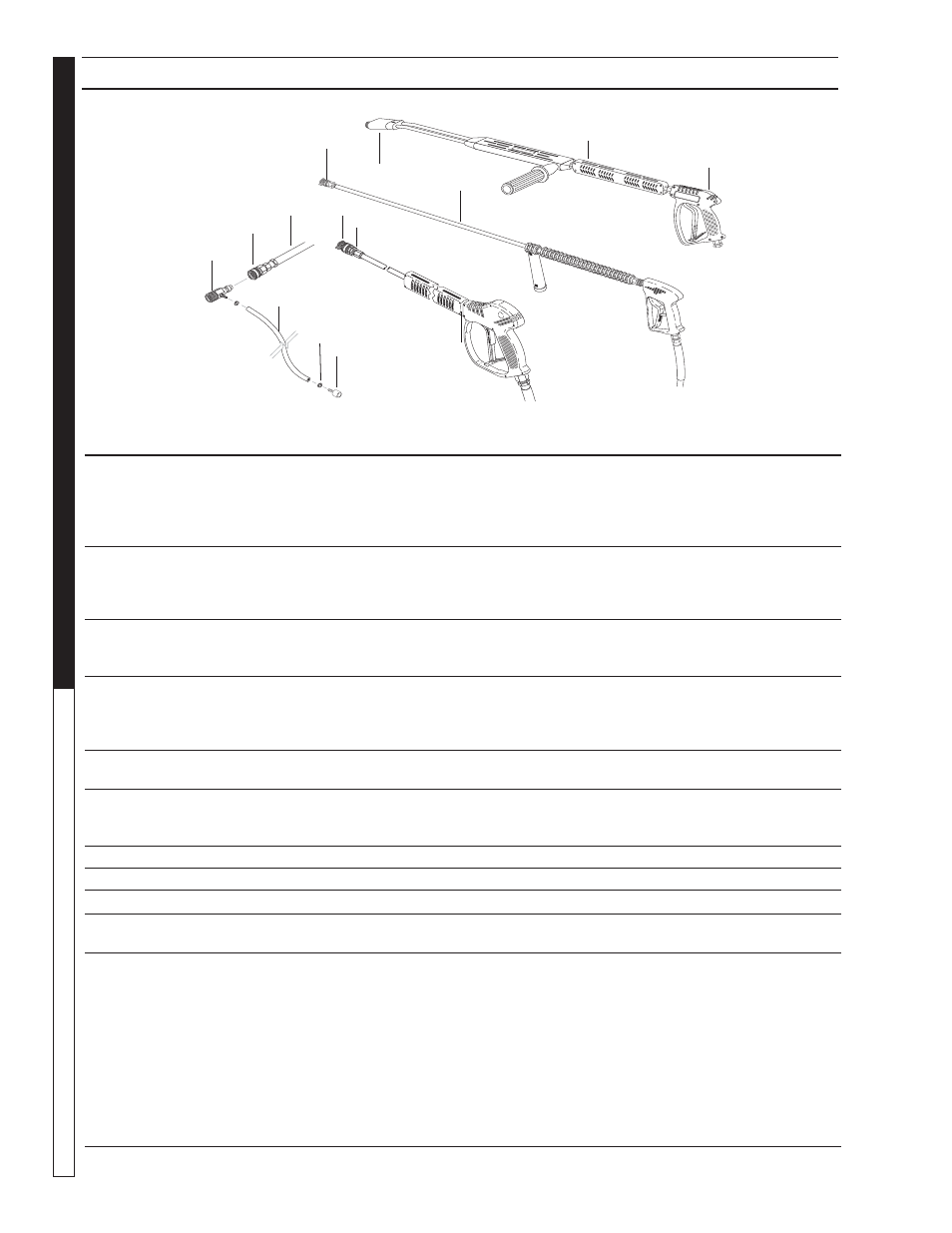

HOSE & SPRAY GUN ASSEMBLY AND PARTS LIST
5000 PSI
Models
ITEM PART NO. DESCRIPTION QTY
1 9.802-222.0 Wand, VP W/Coupler & Nozzle X-Series (BR and HD Models) 1
8.711-293.0 Wand, VP Lance, AL344 w/Coupler & Soap Nozzle (MP Models) 1
8.904-425.0 Wand, Side Grip, 47.5" w/Couplers (BD Models) 1
8.725-388.0 Wand, Single, 48", Insulated W/ Side Grip 1
9.802-164.0 Coupler, 1/4" Female Brass (BD Models) 1
8.710-384.0 Gun, St-1500, 5000 PSI, 10.4 Gpm (BR and HD Models) 1
8.751-234.0 Gun, Landa, L1050, 5000 PSI, 10.4 Gpm 1
8.904-490.0 Spray Gun Assembly with Nipple, Hotsy 1
8.751-235.0 Gun, Hotsy, H1050, 5000 PSI, 10.4 GPM 1
2 9.802-228.0 Spray Gun Assy w/ Wand & Coupler (5000 PSI Models) 1
9.802-227.0 Spray Gun Wand 5000 PSI, 52" (5000 PSI Models) 1
9.802-165.0 Coupler 1/4" Male Brass 1
3 8.739-331.0 Hose, 3/8" x 50', 2w, Tf, Ka, So-sw, Cp (BR and HD Models to 4000 PSI) 1
8.739-330.0 Hose, 3/8" x 50', 2w, Tf, La, So-sw, Cp (MP Models to 4000 PSI) 1
8.918-088.0 Hose, 3/8" x 50', 2w, TS, So-sw, High Press Cp (MP, BD, BR and HD Models to 5000 PSI) 1
8.739-347.0 Hose, 3/8" x 50', 2W, TF, HO, SO-SW, CP (BD Models to 4000 PSI) 1
4 9.802-225.0 Injector Assembly, 3-5 GPM, 0.083 (Models to 4000 PSI) 1
9.802-216.0 Injector Chem Non Adj. 3-5 GPM. 0.083 1
9.802-217.0 Injector Assembly, 5500 PSI (5000 PSI Models) 1
9.802-167.0 Coupler, 3/8" Female, 11,000 PSI 1
9.802-168.0 Nipple, 3/8" Fem, 11,000 PSI 1
5 8.707-057.0 Strainer, Plastic, 1/4" Hose Barb 1
6 9.802-251.0 Tube, 1/4" X 1/2", Clear Viny 6 ft.
7 6.390-126.0 Clamp, Hose, .46-.54 ST 2
8 9.802-167.0 Coupler, 3/8" Female, 11,000 PSI Snap-Tite (5000 PSI Models) 1
9.802-166.0 Coupler, 3/8" Female 1
9 9.802-295.0 Nozzle SAQCMEG, 0004, Red (All Except 4 GPM/5000 PSI Models) 1
9.802-296.0 Nozzle SAQCMEG, 1504, Yellow (All Except 4 GPM/5000 PSI Models) 1
9.802-297.0 Nozzle SAQCMEG, 2504, Green (All Except 4 GPM/5000 PSI Models) 1
9.802-298.0 Nozzle SAQCMEG, 4004, White (All Except 4 GPM/5000 PSI Models) 1
8.708-713.0 Nozzle Kit, Size 04, 4-Pack (All Except 4 GPM/5000 PSI Models) 1
9.802-291.0 Nozzle SAQCMEG, 0003.5, Red (4 GPM/5000 PSI Models) 1
9.802-292.0 Nozzle SAQCMEG, 1503.5, Yellow (4 GPM/5000 PSI Models) 1
9.802-293.0 Nozzle SAQCMEG, 2503.5, Green (4 GPM/5000 PSI Models) 1
9.802-294.0 Nozzle SAQCMEG, 4003.5, White (4 GPM/5000 PSI Models) 1
8.708-712.0 Nozzle, Kit, Size 03.5, 4-Pack (4 GPM/5000 Models) 1
9.802-311.0 Nozzle, COMPL, QCHEM-6540, Brass 1
Not Shown
