5006426 — DOOR ASSEMBLY
- NON-CONTROL SIDE
5005773 — DOOR ASSEMBLY
- CONTROL SIDE
FASTENERS REQUIRED
(1) 1002143 WASHER, DOOR
SPACE, BOTTOM
(1) WS-22298 WASHER, FLAT, M8
(3) SC-2900 SCREW , 5/16-18 x 5/8
(1) PI-26350 PIN, DOOR, TOP
(1) PI-26352 PIN, DOOR, BOTTOM
(1) NU-25897 NUT, HEX JAM 5/16-18
(1) SC-25781
SCREW, INSERT
(6) SC-22378 SCREW , 8-32 x 3/8
FASTENERS REQUIRED
(1) 1002143 WASHER, DOOR
SPACE, BOTTOM
(1) WS-22298 WASHER, FLAT, M8
(3) SC-2900 SCREW , 5/16-18 x 5/8
(1) PI-26350 PIN, DOOR, TOP
(1) PI-26352 PIN, DOOR, BOTTOM
(1) NU-25897 NUT, HEX JAM 5/16-18
(1) SC-25781
SCREW, INSERT
(6) SC-22378 SCREW , 8-32 x 3/8
5008322
(
INNER GLASS )
5008322
(
INNER GLASS )
REV 02/09
HINGE SIDE
HINGE SIDE
5007824
(
OUTER GLASS )
5007824
(
OUTER GLASS )
HD-26900
(DOOR HANDLE)

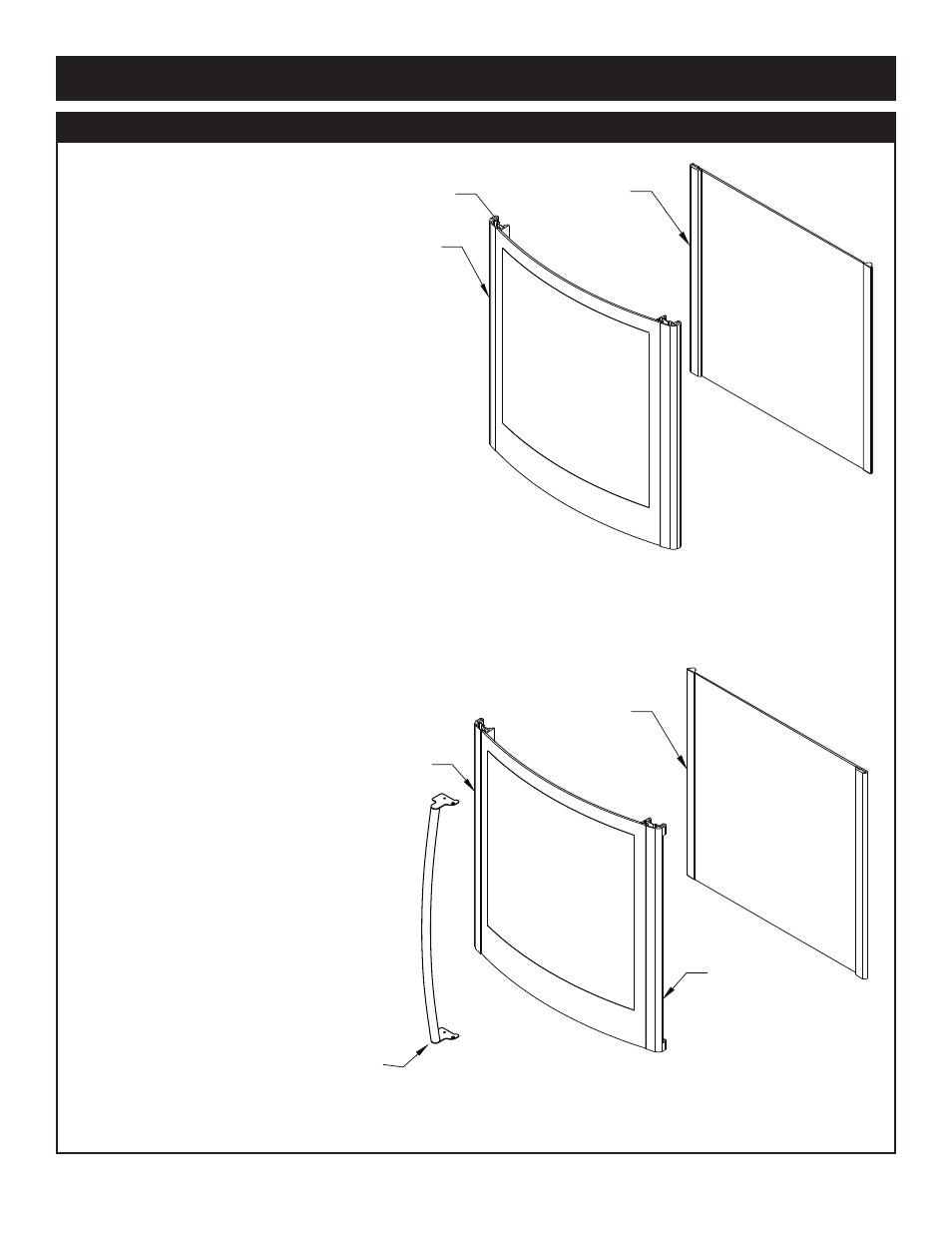

S E R V I C E V I E W 4 A : D O U B L E PA N E C U R V E D G L A S S D O O R
A R - 7 E R o t i s s e r i e w i t h A R - 7 V H Ve n t l e s s H o o d O p e r a t i o n & C a r e M a n u a l • 3 1
S E R V I C E
