GS-25753
GASKET, DOOR
A
“A”
DETAIL A
DETAIL B
B
5006996
DOOR ASSEMBLY
— NON CONTROL SIDE
5006806
DOOR ASSEMBLY
— CONTROL SIDE
(1) PI-26352
PIN, DOOR
(1) WS-22298
WASHER
(1) 1002143
SPACER
(1) PI-26350
PIN, DOOR
“B”
1002596 top
HINGES
— CONTROL SIDE
1002597 bottom

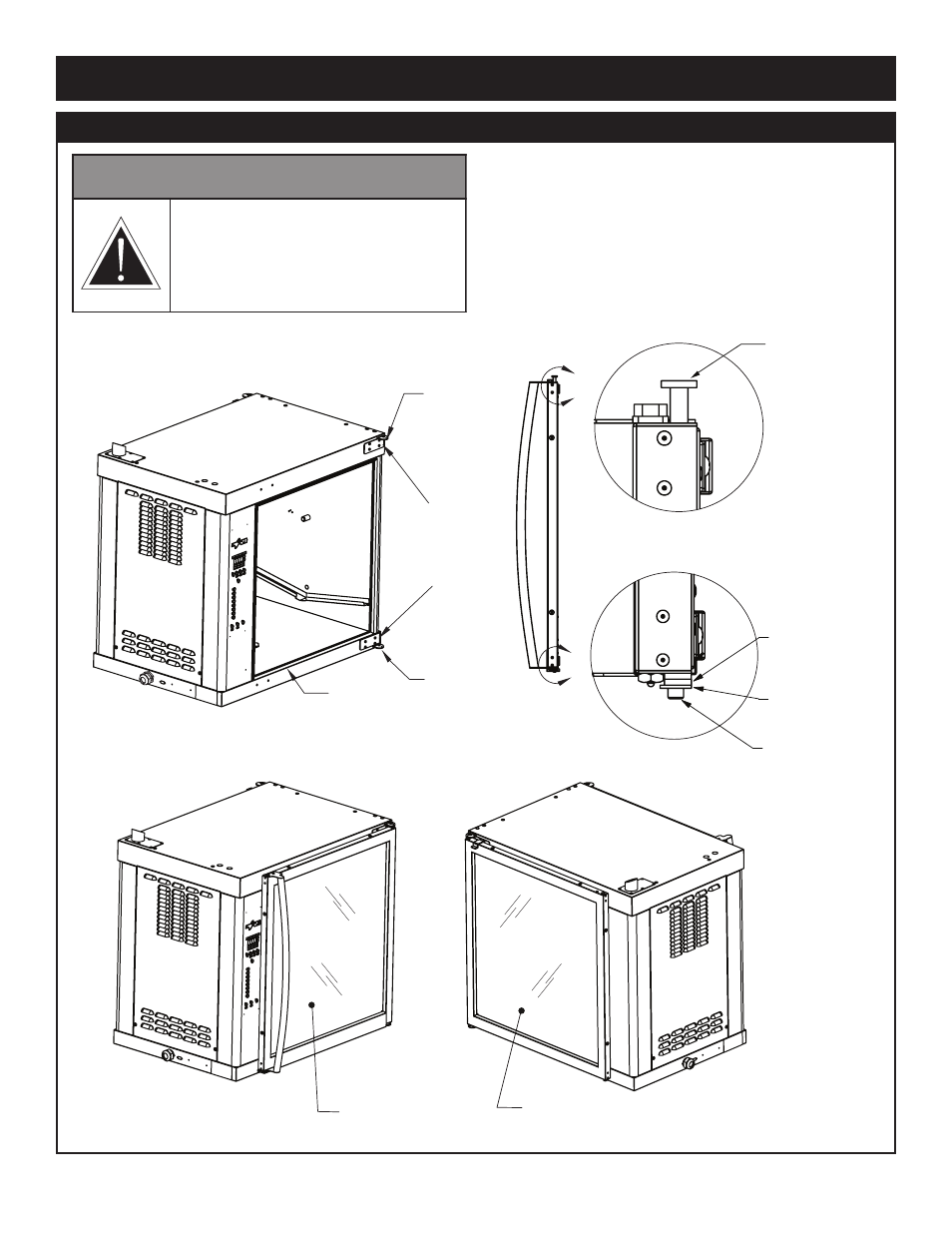

S E R V I C E V I E W 2 : S I N G L E PA N E F L AT G L A S S D O O R
DOOR REPLACEMENT:
STEP 1: REMOVE TOP PIN (PI-26350) FROM
BRACKET "A" USING A SMALL
SCREWDRIVER.
STEP 2: ASSEMBLE DOOR ON UNIT WITH
SPACERS AS SHOWN (DETAIL B).
STEP 3: MAKE CERTAIN DOOR IS ALIGNED AND
REINSERT TOP PIN.
W A R N I N G
DO NOT ATTEMPT TO REMOVE THE
DOOR WITHOUT ASSISTANCE. THE
DOOR IS EXTREMELY HEAVY, WILL
BE DAMAGED IF DROPPED, AND
MAY CAUSE SERIOUS INJURY.
A R - 7 E R o t i s s e r i e w i t h A R - 7 V H Ve n t l e s s H o o d O p e r a t i o n & C a r e M a n u a l • 2 8
S E R V I C E
