62 ICX-250 Diagnostics LED Indicators
ADCP-62-023 Issue 1, September 1998
© 1998, ADC Telecommunications, Inc.
Self Check (Red LED) Failed Power-Up Self Test or System Failure

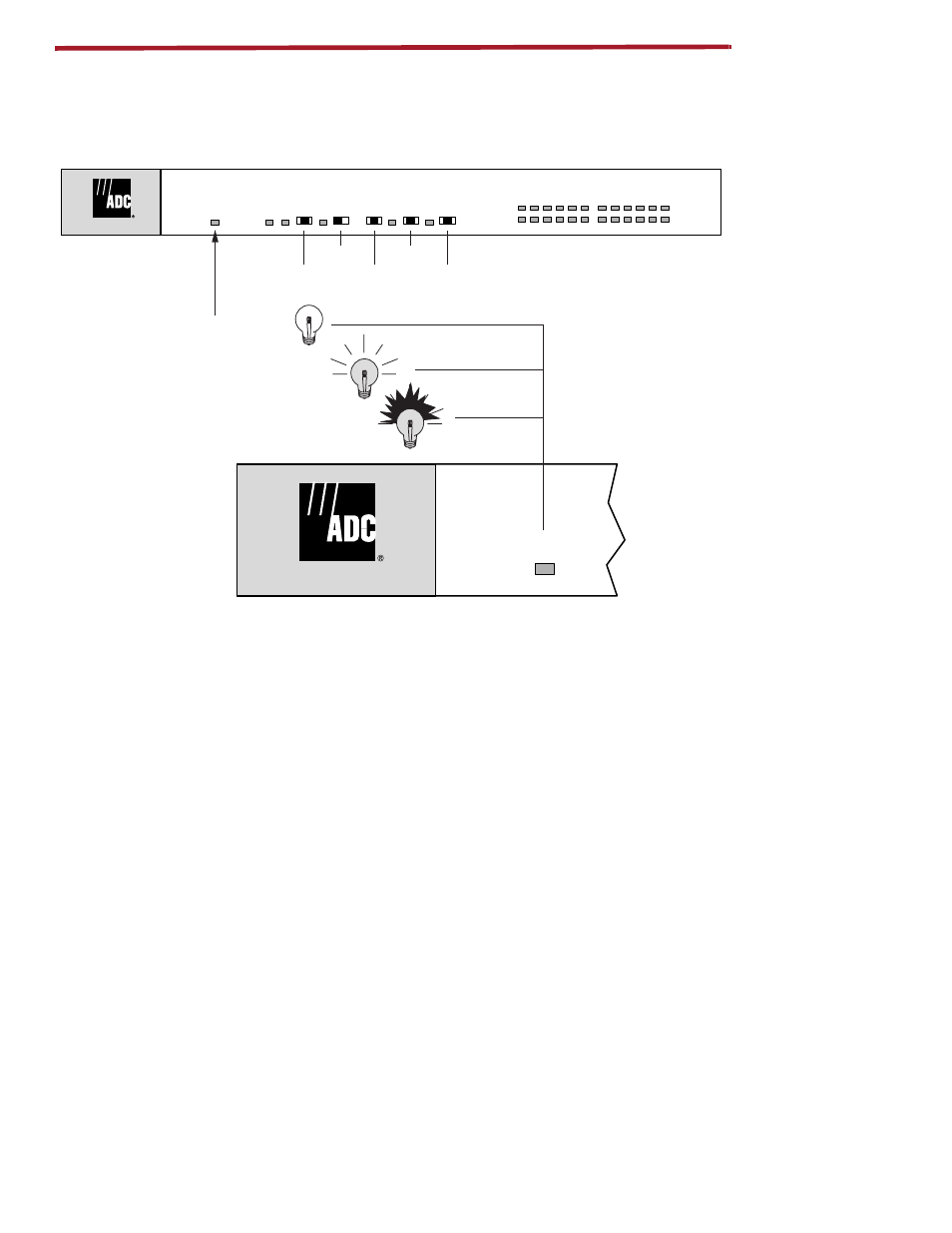

ICX-250 - Front Panel
ICX-250
1 3 5 7 9 11 13 15 17 19 21 23
2 4 6 8 10 12 14 16 18 20 22 24
FXS Status Channel
Data Loop 2
Lcl. / Off / Net.
Data Loop 1
Lcl. / Off / Net.
T1 Loop
Net. / Off / Lcl.
1 / Off / 2 Off / QRSS
T1 Status T1 Loop Test Pattern Test Pattern T1 T
est
Self Check
11283-A
ICX-250
Self Check
OFF: Normal
ON: Failed Self Test during power up
or a system failure occured during
normal operation.
BLINKING: Invalid Configuration
