58 ICX-250 Diagnostics Testing
ADCP-62-023 Issue 1, September 1998
© 1998, ADC Telecommunications, Inc.

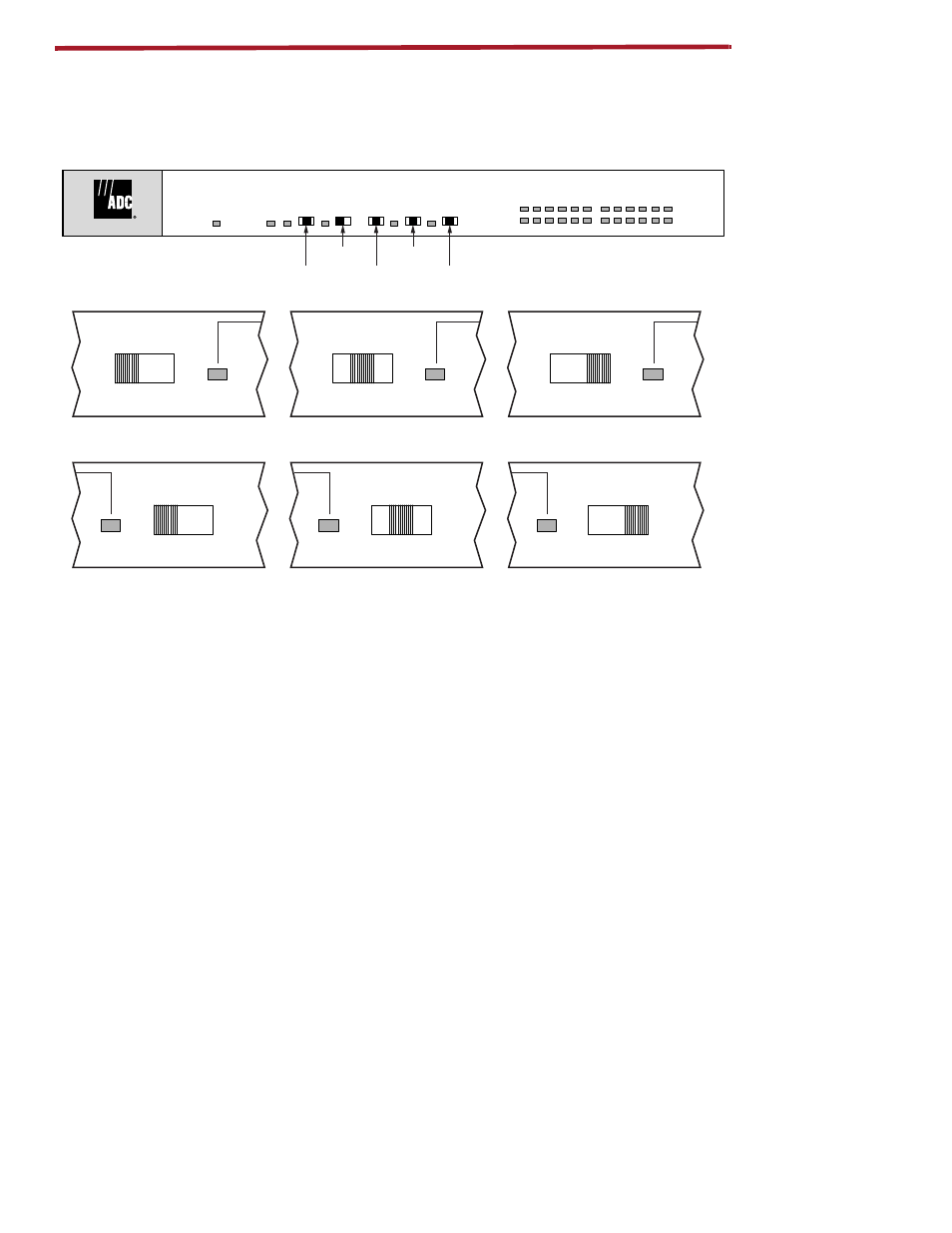

Data Port 1 and 2 - Loopback (Slide switches - front)
ICX-250 - Front Panel
Description: This is a three position slide switch used for Data Port 1 and 2 to receive and transmit
T1 loopback information.
Factory Setting: OFF
Local: Breaks the receive signal on the network side between the Data Port (1 or 2) and the T1
interface and loops the Data Port (1 or 2) transmit signal onto the receive side.
Network: Breaks the transmit signal on the network side between the Data Port (1 or 2) and the T1
interface and loops the Data Port (1 or 2) receive signal onto the transmit side.
