External DIP Switches
Configuring the ICX-250 39
Issue 1, September 1998
ADCP-62-023
© 1998, ADC Telecommunications, Inc.
Data Port 1 and 2 Data Rate -
(DIP switch - back)

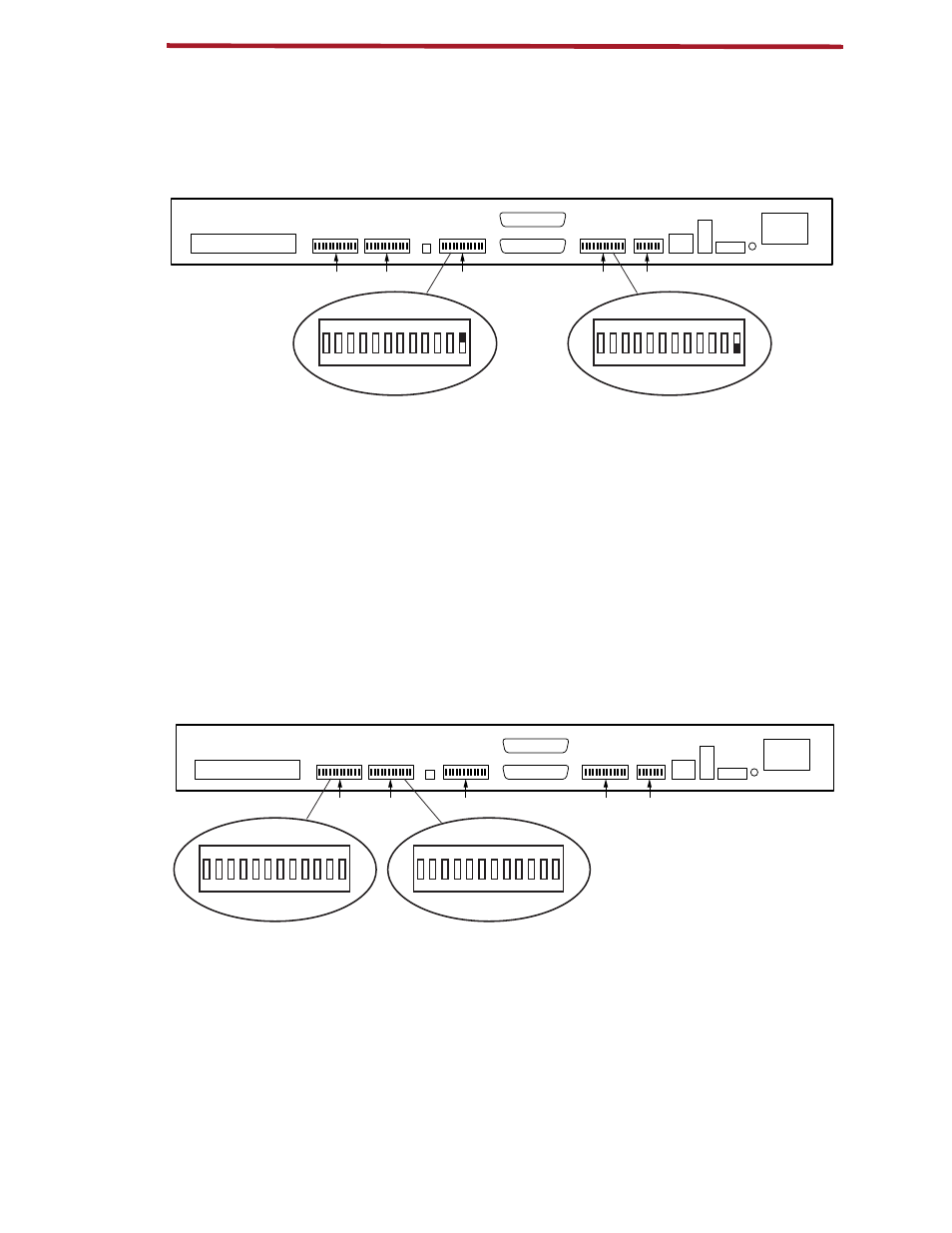

ICX-250 - Rear Panel
Switch numbers S1 through S5 are shown on the board within the unit.
Description: S2 and S3 position 12 selects the data rate for Data Ports 2 and 1, respectively.
Factory Setting: 56Kbps
64 Kbps: Data Ports1 or 2 receive and transmit data at a multiple of 64 Kbps.
56 Kbps: Data Ports 1 or 2 receive and transmit data at a multiple of 56 Kbps.
The options shown on this page do not have to be matched. i.e. Port 1 can have a different interface
and speed than Port 2.
FXS Ports (per line) - Loopback Operation and/or Channel Unassigned
(DIP switch - back)
ICX-250 - Rear Panel
Switch numbers S1 through S5 are shown on the board within the unit.
Description: Used to set loopback for each FXS channel.
Factory Setting: OFF
ON: Breaks the connections to and from the FXS Ports and loops the receive data back onto the
transmit path towards the T1. In the case of unassigned channels, provides an idle termination.
