ENGLISH

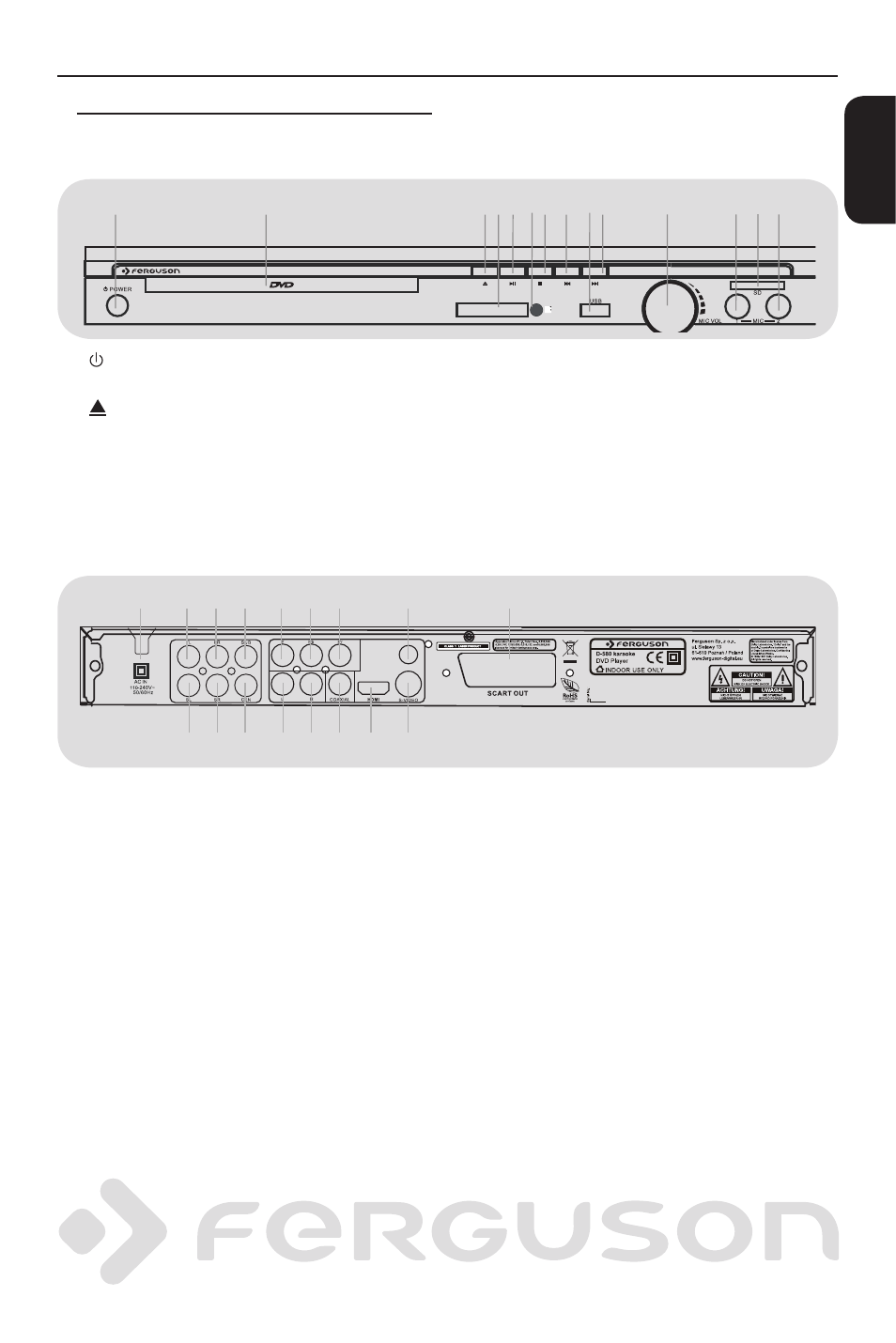

Functional Overview
Front and Rear panels
A
POWER - Turns the player on
B
Disc tray
C
EJECT - Open / close the disc tray
D
Display - Shows information about
the current status of the DVD Player
E
PLAY
- Starts playback
F
IR Sensor - Point the remote control
towards this sensor
G
STOP - Stops playback
H
PREV
- previous track/file
I
USB port - Input the supported USB
device
J
NEXT - next track/file
K
MIC VOL - microphone volume
L
MIC 1 2 - microphone 1 and 2
M
SD - flash card reader
A
Main (AC Power Cord) - connect to a
standard AC outlet
B
FL Multichannel Audio Out - connect
to front left input of an amplifier
C
FR Multichannel Audio Out - connect
to front right input of an amplifier
D
SUB Multichannel Audio Out
- connect to subwoofer input of an
amplifier
E
Y (Component Video Out) - connect
to Y input of a TV
F
Pb (Component Video Out) - connect
to Pb input of a TV
G
Pr (Component Video Out) - connect
to Pr input of a TV
H
CVBS (Video Out) - connect to CVBS
video input of a TV
I
SCART - connect to SCART input of a TV
J
SL Multichannel Audio Out - connect
to left surround input of an amplifier
K
SR Multichannel Audio Out - connect
to right surround input of an amplifier
L
CEN Multichannel Audio Out -
connect to center input of an amplifier
M
L Stereo Audio Out - connect to audio
left input of a stereo system
N
R Stereo Audio Out - connect to audio
right input of a stereo system
O
COAXIAL (Digital Audio Out) - connect
to coaxial audio input of an amplifier
P
HDMI - Audio and video output socket
for the high definition television set
Q
S-Video - connect to S-Video
compatible device
