Ferguson D-580 - Manual (Page 13)

7
AUDIO ANALOG
5.1
COMPONENT CVBS
10W max
MULTICHANNEL AUDIO IN
SUBW. REAR FRONT
CENTER REAR FRONT
L
R
AUDIO ANALOG
5.1
COMPONENT CVBS
10W max
AUDIO
IN
DIGITAL
ENGLISH
AV Receiver
Connections

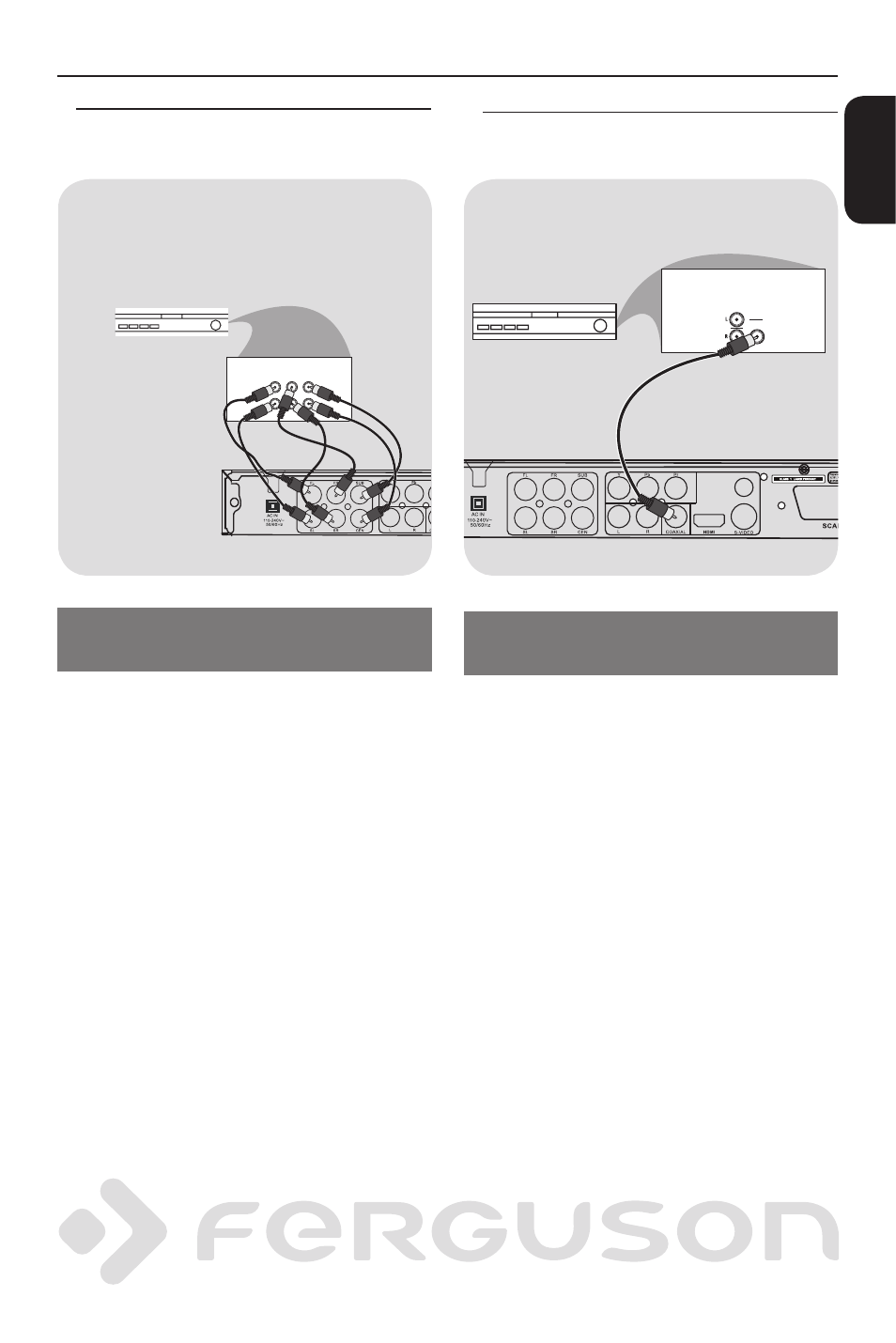

Optional: Connecting to a Multi-
channel Receiver
Receiver has multichannel analog
input
A
Select one of the video connections
(CVBS VIDEO, SCART or COMPONENT
VIDEO) depending on the options
available on your TV.
B
Connect the Audio Out Left and Right
jack for Front and Rear speakers to the
corresponding input sockets on your
Receiver.
C
C onnect the Audio Out for center
speaker, surround left, surround right and
subwoofer to the corresponding inputs
on your Receiver (cable not supplied).
D
Set the DVD Player’s Analog Output
(menu AUDIO SETUP PAGE > SPEAKER
SETUP > Downmix) to ‘5.1 CH’ to enable
playback of DVDs recorded in Multi-
channel.
Helpful Hint:
- If the subwoofer is equipped with its
own amplifier, the Subwoofer connection
should be connected directly to the
subwoofer.
Optional: Connecting Digital AV
Receiver
Receiver has a PCM, Dolby Digital, or
MPEG2 decoder
A
Select one of the video connections
(CVBS VIDEO IN, SCART or COMPONENT
VIDEO IN) depending on the options
available on your TV.
B
Connect the COAXIAL or OPTICAL jack
of the DVD player to the corresponding
Digital Audio In jack on your Receiver
(cable not supplied).
C
Set the DVD Player’s Digital Output to
PCM-Only or RAW depending on the
capabilities of your Receiver.
Helpful hint:
– If the audio format of the Digital Output
does not match the capabilities of your
receiver, the receiver will produce a
strong, distorted sound or no sound at all.
AV Receiver
