4. Press [ENTER] to confirm or Press [MODE/ESC] to return to the main menu.

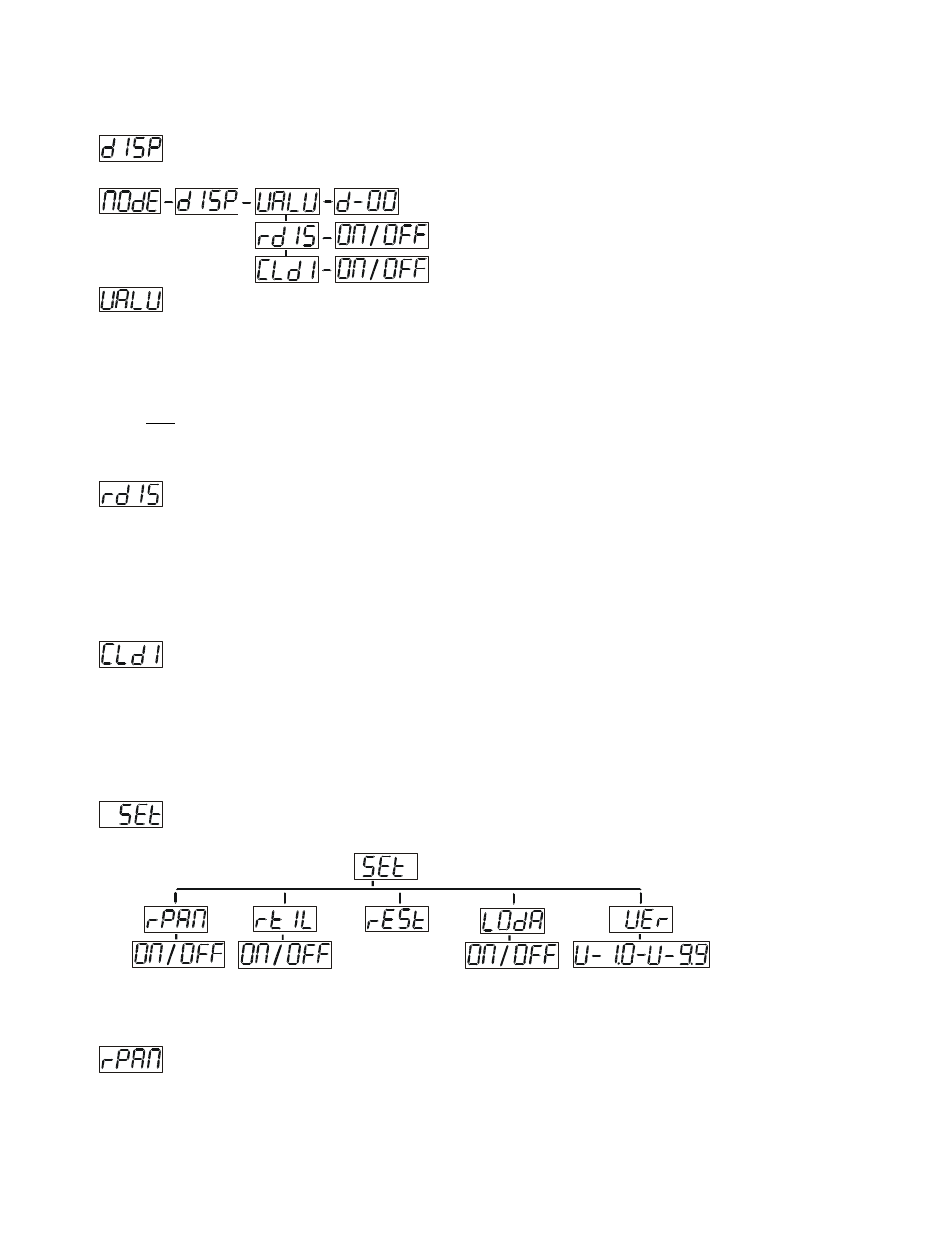

- Display the DMX-value, Reverse display, Shut off LED display
- Display the DMX 512 value of each channel
With this function you can display the DMX 512 value of each channel.
1. Select
"VALU" by pressing [UP] or [DOWN] button.
2. Press [ENTER] to confirm; the display shows“D-00”. In this setting, the DMX-adjustment of every
channel will be displayed.
3. Press [UP] or [DOWN] button in order to select the desired channel. If you select “D-08” the display
will only show the DMX-value of the 8 th channel.
4. Press [ENTER] to confirm or Press [MODE/ESC] to return to the main menu.
5. The display shows "D- XX“, ”X” stands for the DMX-value of the selected channel.
- Reverse display (Kinda useful when your staring up at the display from the ground).
With this function you can rotate the display by 180°.
1. Select
"RDIS" by pressing [UP] or [DOWN] button.
2. Press [ENTER], the display shows “ON” or “OFF”.
3. Press
[UP] to select “ON” if you wish to enable this function or press [DOWN] button to “OFF” if you
don’t; the display will rotate by 180°.
4. Press
[ENTER] to confirm or Press [MODE/ESC] to return to the main menu.
- Shut off LED display
With this function you can shut off the LED display after 2 minutes.
1. Select
"CLDI" by pressing [UP] or [DOWN] button.
2. Press [ENTER], the display shows “ON” or “OFF”.
3. Press
[UP] to select “ON” if you wish to enable this function or press [DOWN] button to “OFF” if you don’t.
4. Press [ENTER] to confirm or Press [MODE/ESC] to return to the main menu.
- Main menu 2
1. Press [MODE/ESC] to enter the main menu (display flashing).
2. Press [UP] or [DOWN] button. to select “SET”. Press [ENTER].
- Pan Reverse
With this function you can reverse the Pan-movement.
1. Select
“RPAN” by pressing [UP] or [DOWN] button.
