Instrucciones de uso y mantenimiento, Esquema eléctrico – ROTHENBERGER ROREC v.1 User Manual
Page 36
35
ESPAÑOL
INSTRUCCIONES DE USO Y MANTENIMIENTO

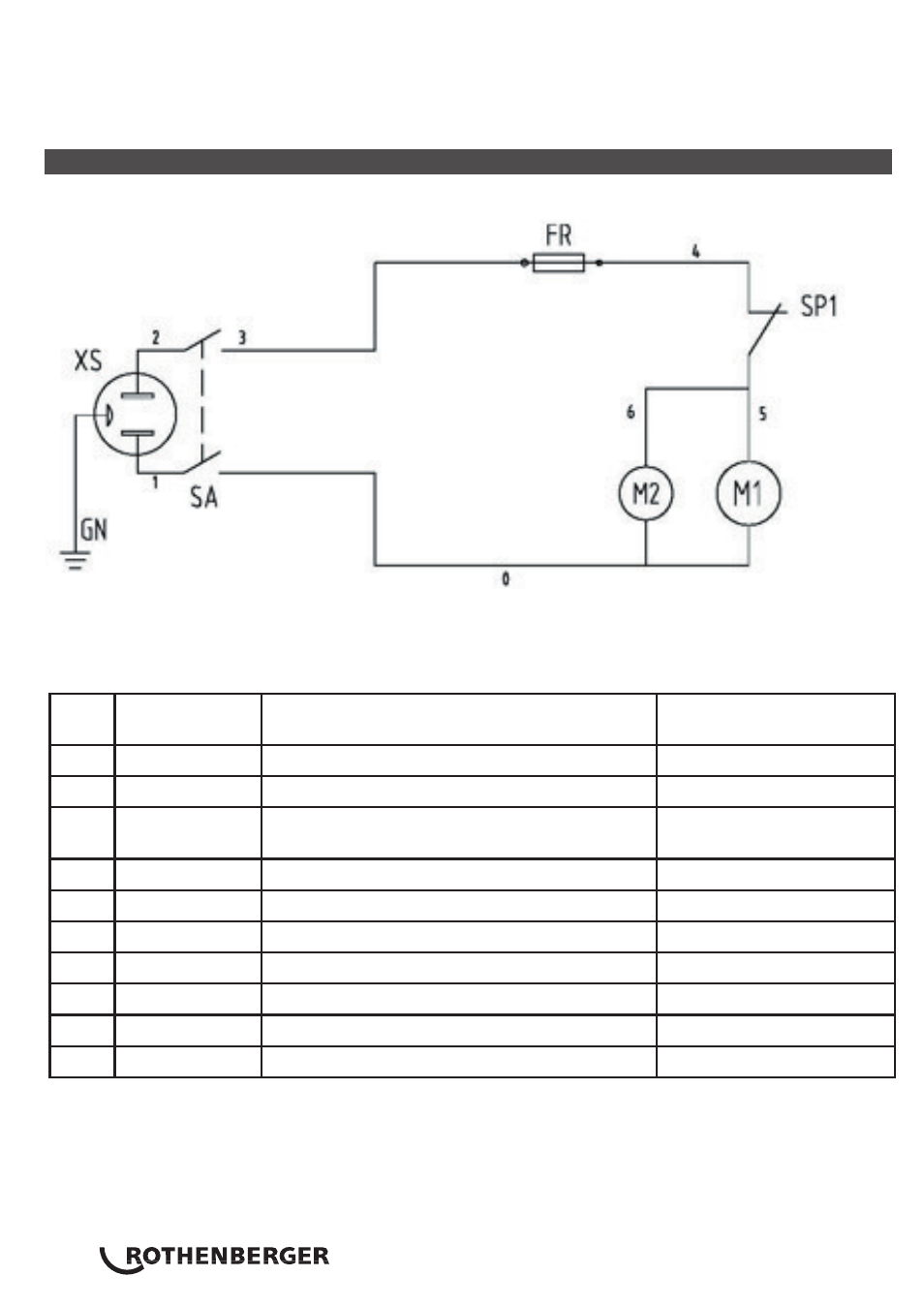

3. Esquema eléctrico
PIEZA
Código del
esquema
DESCRIPCIÓN
Notas
1
XS
Salida de alimentación
2
SA
Interruptores oscilantes
3
FR
Dispositivo de protección frente a
sobrecargas
4
M1
Motor del compresor
5
M2
Ventilador axial
6
SR
Interruptor centrífugo
7
C1
Condensador de arranque
8
C2
Condensador de funcionamiento
9
SP1
Conmutador de alta presión
10
ST
Protectores térmicos del motor
