Remote LOS and AIS Response
Figure 26 shows the different ways the H2TU-R can respond to the network, depending on the configuration of
the NLBP, TLOS, RDA, and ALMP configuration options described in Table 5 on page 17 and Table 6 on
page 18 .

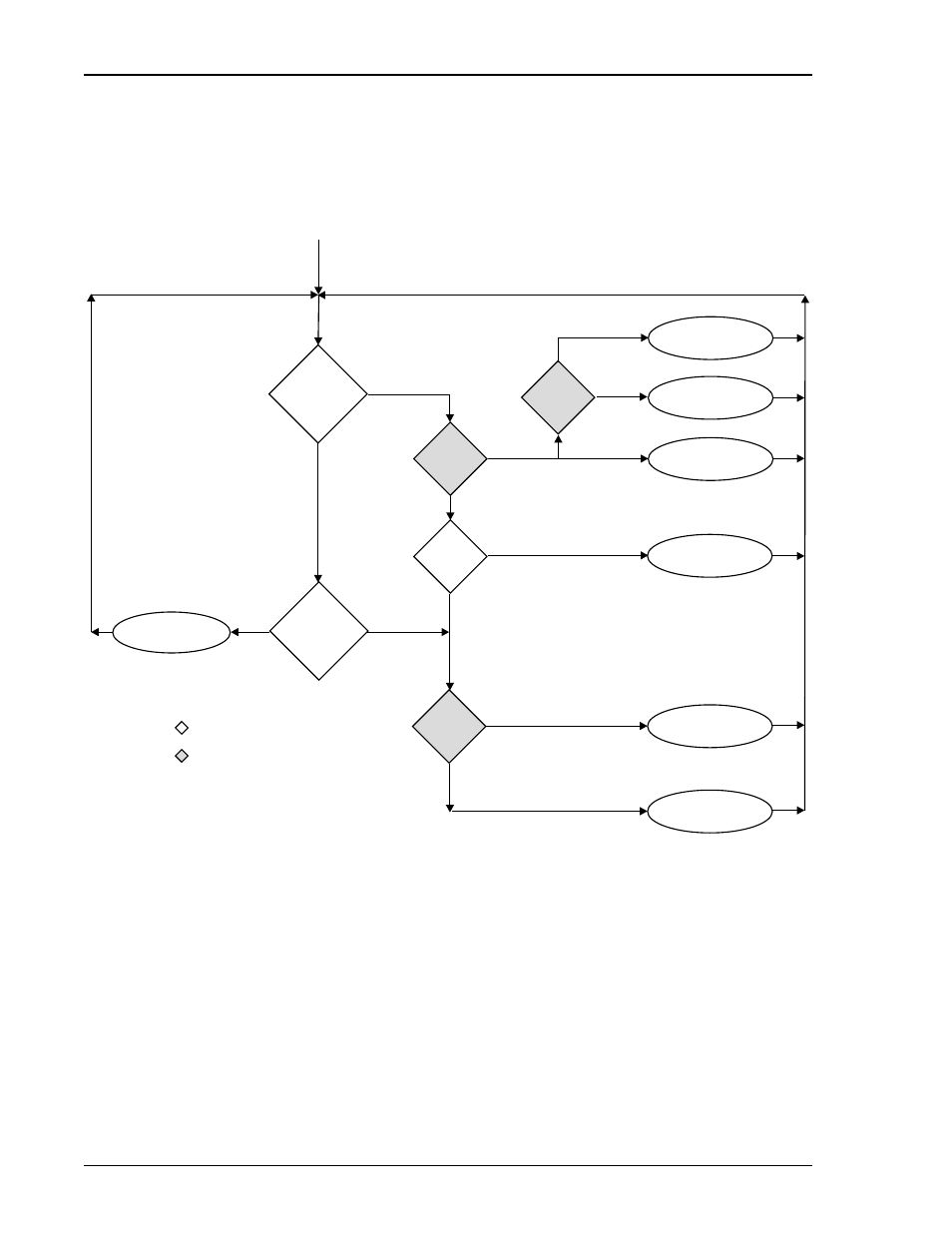

Figure 26. H2TU-R LOS and AIS Response Priorities
OCT55 T
EST
P
ATTERN WITH
AMI L
INE
C
ODE
The OCT55 test pattern can be used in unframed mode to stress the system and verify data integrity. In an SF or
ESF framing mode, excessive zero anomalies may occur which cause the H2TU-C to report ES, SES, and UAS
errors according to ANSI T1.231-1997.
LOS event?
AIS event?
Remove alarm
pattern
TLOS
RDA
NLBP
ALMP
DIS
ENA
ENA
DIS
AIS
AIS
LOS
LOS
YES
YES
NO
NO
Loopback to Network
AIS to CPE
LOS to CPE
Pass on LOS to
Network, no alarm
report
Pass on LOS to
Network
AIS to Network
HDSL2 Standard Option
ADC Option
Default configurations are in bold.
H2TU-R, DS1 Input
