Mechanical Specifications

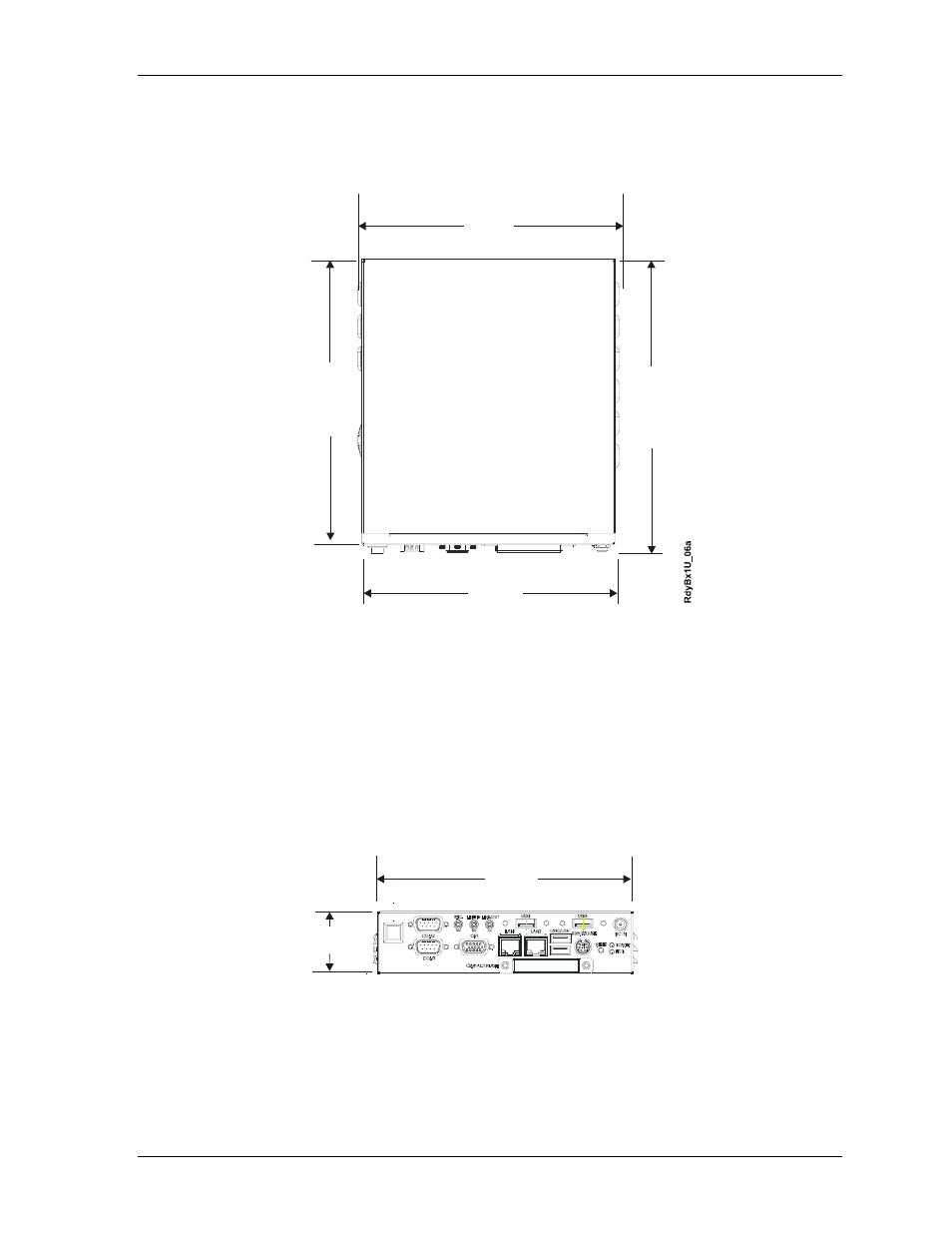

Figures B-5 through B-10 show the ReadyBox 1U enclosure dimensions and mounting dimensions.
186mm
7.32”
8.00”
203.2mm
180mm
7.09”
Top View
8.244”
209.4mm
Figure B-5. Width and Depth Dimensions (Top view)
R
d
yB
x1U
_07a
1.73”
44mm
180mm
7.09”
I/O Panel (Front) View
Figure B-6. Width and Height Dimensions (Front view)
