Appendix B System Overview
26 Users Guide ReadySystem 1U
• Mechanical
♦ Flexible mounting – benchtop (surface)
♦ Rack mounting (optional)
♦ All cabling provided internally
• Certification
♦ Designed for EMI standards
♦ Designed for UL/CSA/CE approval (depends on the exact system assembled)
• Power
♦ AC to DC power adapter (optional)
♦ Power On/Off switch
♦ DC power screw-type coaxial input connector
R
d
yB
x1U
_01a
Momentary
Power Switch
Connector/Indicator
Openings for ReadyBoard
Compact Flash Card
Cover and Opening
DC Power In
Connector
ReadyBox 1U
I/O Panel
ReadyBox 1U
Top Cover
Connectors with
Internal Cables
for ReadyBoard
Headers

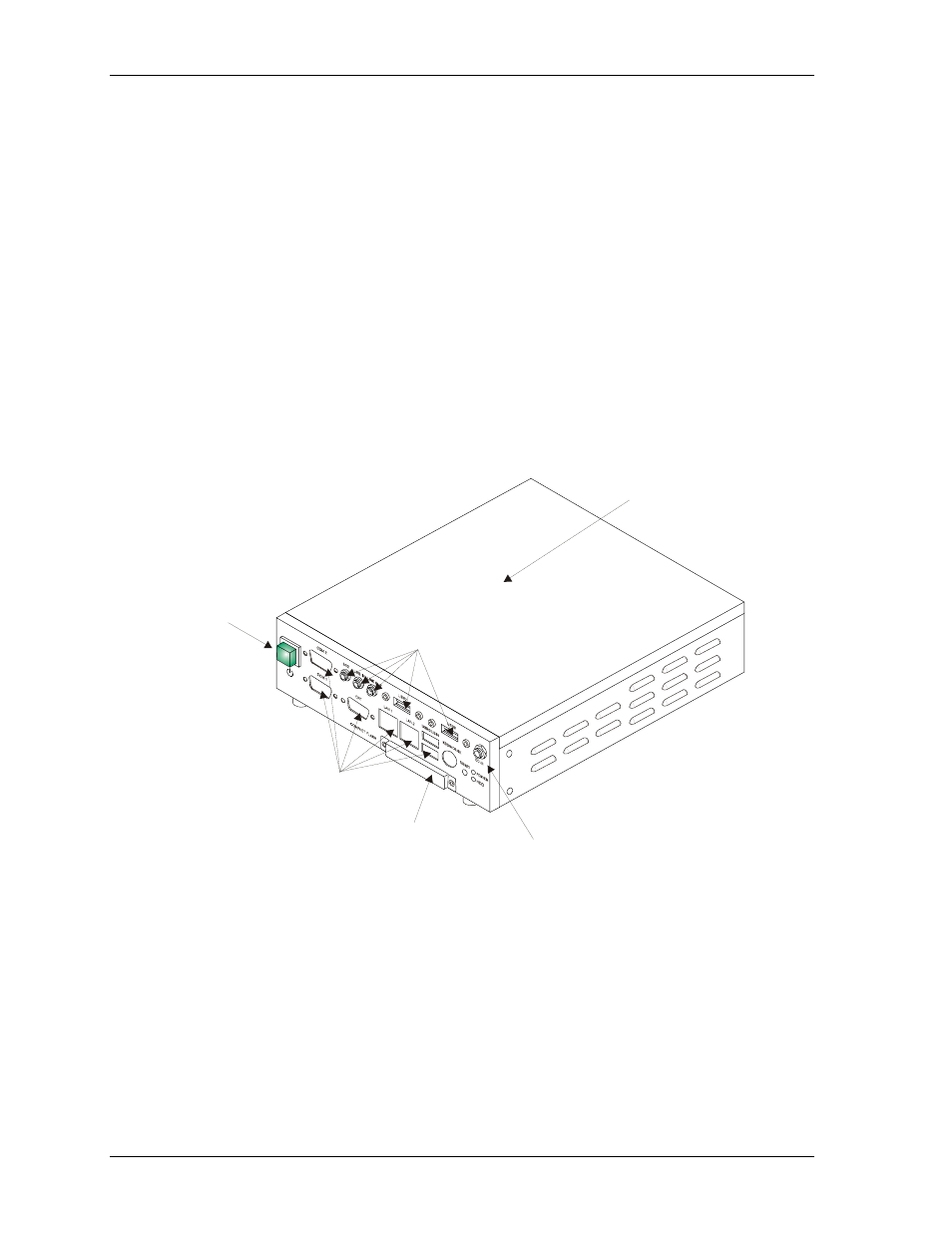

Figure B-1. ReadyBox 1U Enclosure
