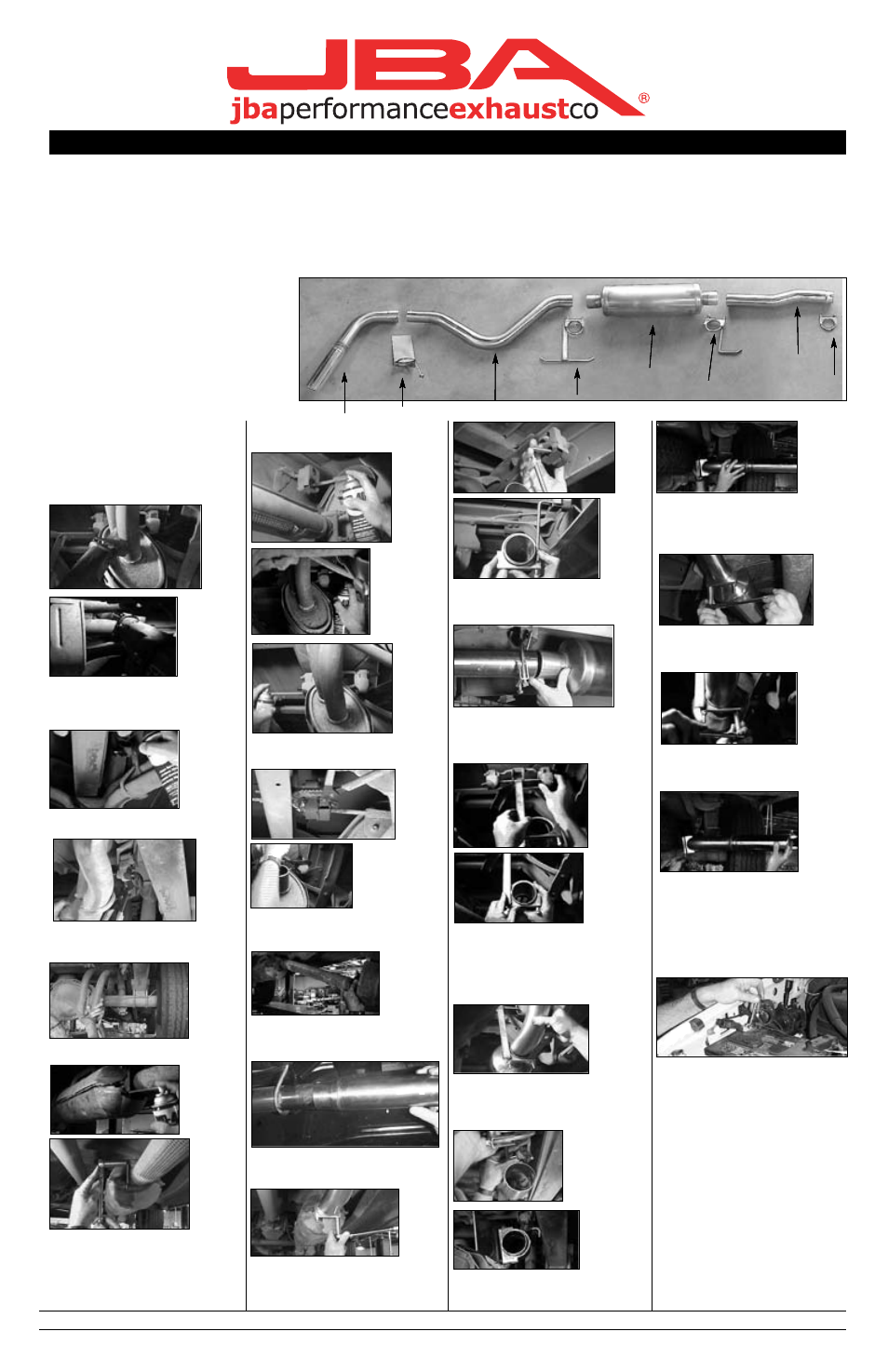

INSTALLATION INSTRUCTIONS

1988-94 Ford F-250, F-350
V8-5.8L, 7.5L Ext. cab/Long bed

T OOLS RECOMMENDED:

T O ST ART :

ratchet
9/16 deep socket
15mm deep socket
9/16" box wrench
reciprocating saw or hack saw
pair of channel lock pliers, 12"
spray lubricant or penetrating oil
anti-seize
