PerTronix Ignitor MR-162 - Manual (Page 2)

909-599-5955 www.pertronix.com
Page 2 of 4
The Ignitor II ignition can be used in conjunction with most ignition coils rated at 0.45 ohms or greater. For opti-
mum performance purchase and install the Flamethrower II high performance coil.

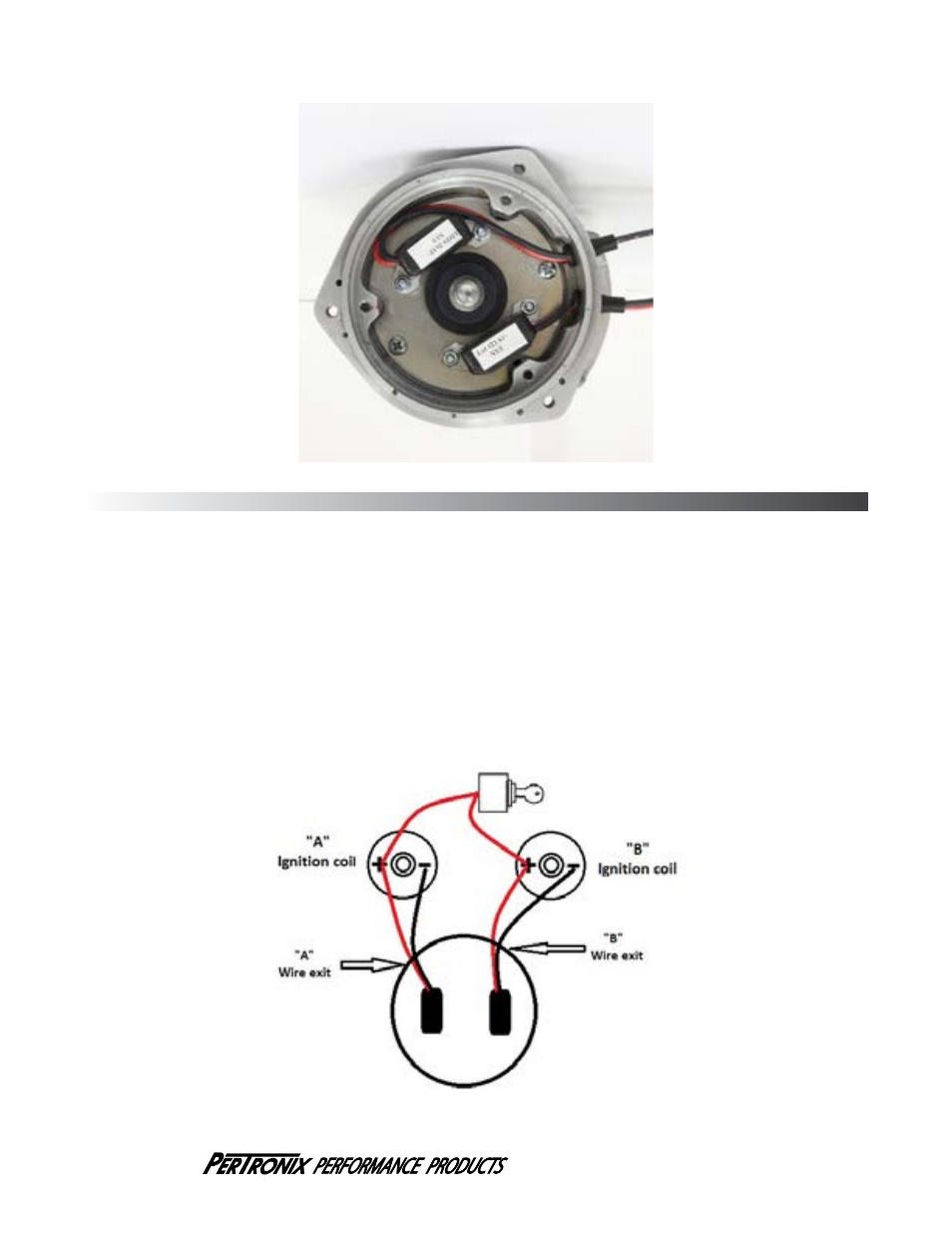

1. Use the provided ring terminals to attach each of the black Ignitor wires to the negative (-) terminal of each
coil.
2. Attach each of the red Ignitor wires to the positive (+) terminal of each coil.
3. The module wires that exit the distributor at the “A” location should be attached to the “A” coil and the mod-
ule that exit the “B” location should be connected to the “B” coil.
4. Check and insure that the polarity is correct, and that all connections are tight.
5. Reconnect battery and make sure all wires are connected.
6. The engine can now be started. Let the engine run for a few minutes and then set the Ignition timing in the
conventional manner.
WIRING INSTRUCTIONS
