Chapter 1. Introduction
9

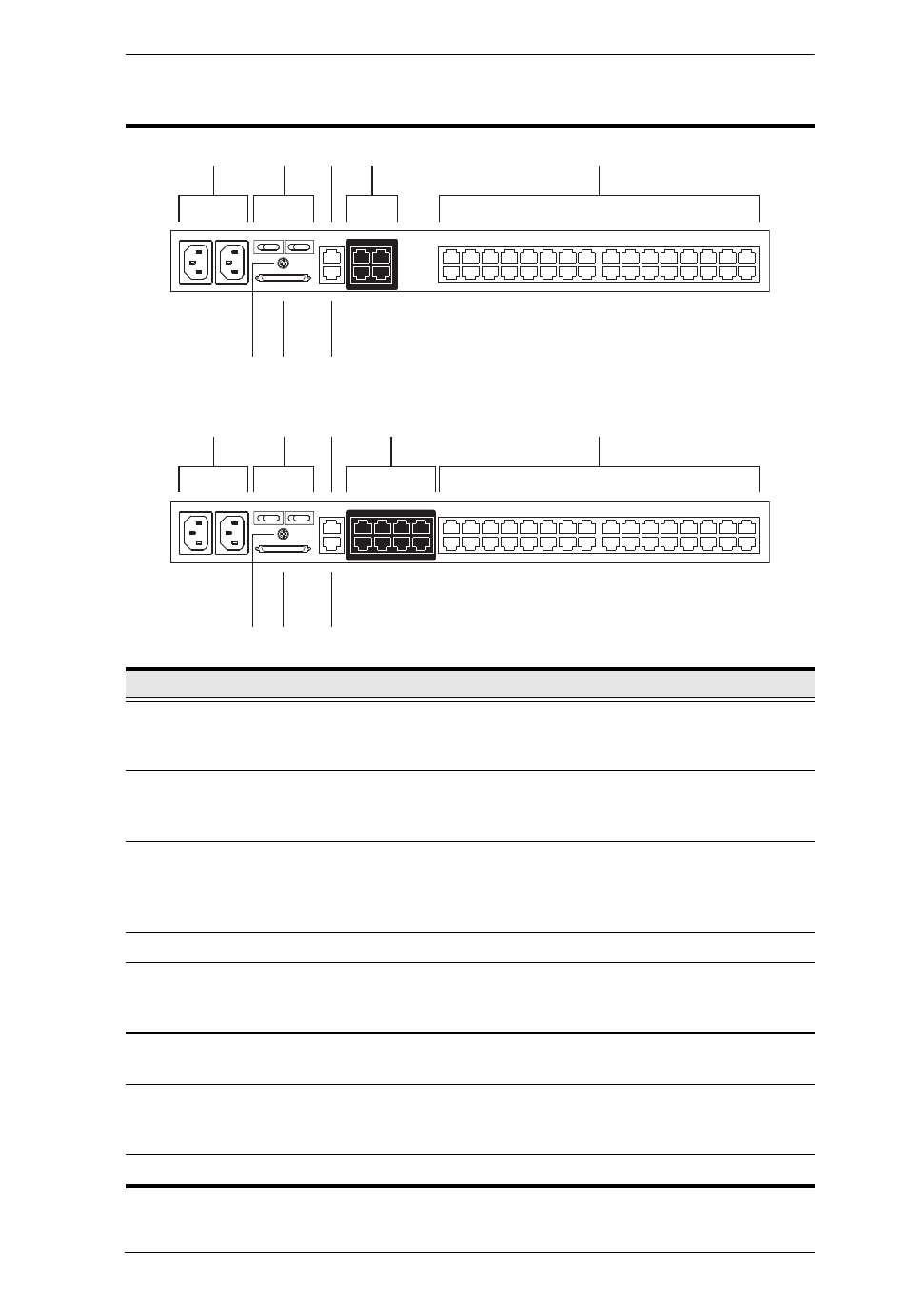

KM0532 / KM0932 Rear View
No. Component Description
1 Power Sockets The power cords from the AC source plug in here. The
socket on the left is Socket 1; the socket on the right is
Socket 2.
2 Power Switches These switches power the KM0532 / KM0932 on and off.
The switch on the left is Switch 1 and governs Socket 1; the
switch on the right is Switch 2 and governs Socket 2.
3 PON Port This connector is provided for a Power over the Net™ (PON)
unit to plug into. A PON device allows computers attached to
the switch to be power-managed remotely over the net.
Contact your dealer for more details.
4 Console Ports The Cat 5e cables from the console modules plug in here.
5 KVM Ports The Cat 5e cables that link the KM0532 / KM0932 to the
KVM Adapter Cables (which connect to the computers – see
page 18), plug in here.
6 Grounding
Terminal The wire used to ground the switch attaches here.
7 CHAIN OUT Port The CHAIN OUT port is used to connect the daisy chain
cable to the CHAIN IN port of a daisy chained KM0032
switch (see page 26).
8 LAN Port The cable from the LAN, WAN, or Intranet plugs in here.
3 4 1 2 5
6 7 8
3 4 1 2 5
6 7 8
KM0532
KM0932
