KM0032 / KM0532 / KM0932 User Manual
136

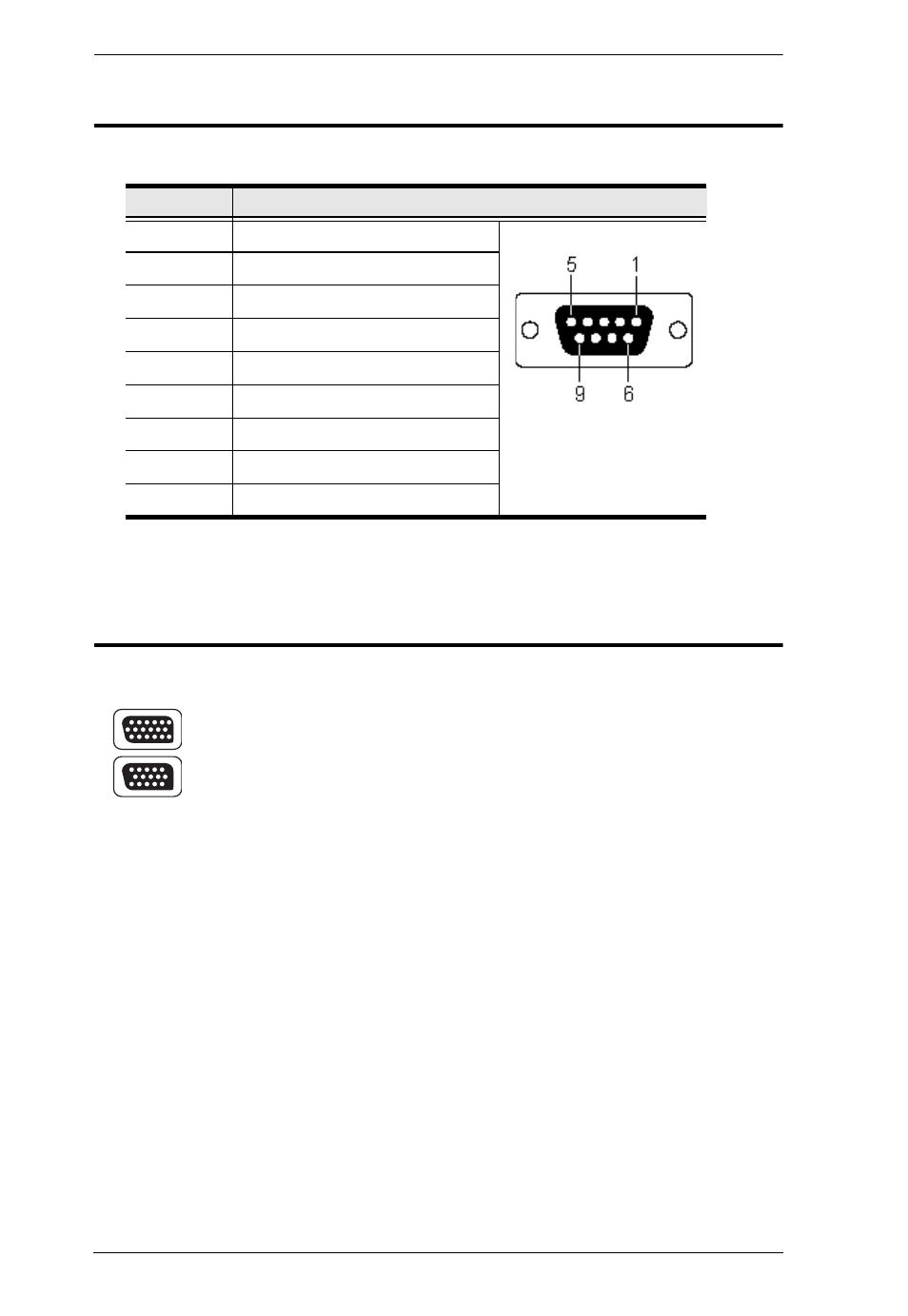

KA7140 Pin Assignments
Pin assignments for the KA7140 Adapter are given in the table, below:
About SPHD Connectors
Pin Assignment
1 DCD
DB9 Female
2 RXD
3 TXD
4 DTR
5 GND
6 DSR
7 RTS
8 CTS
9 N/A
This product uses SPHD connectors for its KVM and/or
Console ports. We have specifically modified the shape of these
connectors so that only KVM cables that we have designed to
work with this product can be connected.
