4
EN
Installation
In gas and glow aircraft, install the X-Plus 8 module by wrapping it in protective
foam and fastening it in place using rubber bands or a hook and loop strap. In
electric airplanes or helicopters, you can use thick double-sided foam tape to
fasten the module in place.
When using an X-Plus receiver and module it is recommended that the X-Plus 8
module be mounted as near to the receiver as possible. When using the jumper
lead to power the module, mounting the X-Plus 8 module near the receiver system
will minimize the current loss from the receiver. Servo extensions can be used
with each servo, but we recommend using heavy 22 gauge wire with gold-plated
connectors.
A power jumper plug must be installed in one of the BATT/JMPR ports of the
module if the module is powered from the receiver through the SRXL port.
Always remove the power jumper when an auxiliary battery or auxiliary batteries
are used. When the auxiliary battery option is used, the X-Plus 8 module can be
mounted as far away from the receiver as needed to be near connected servos.

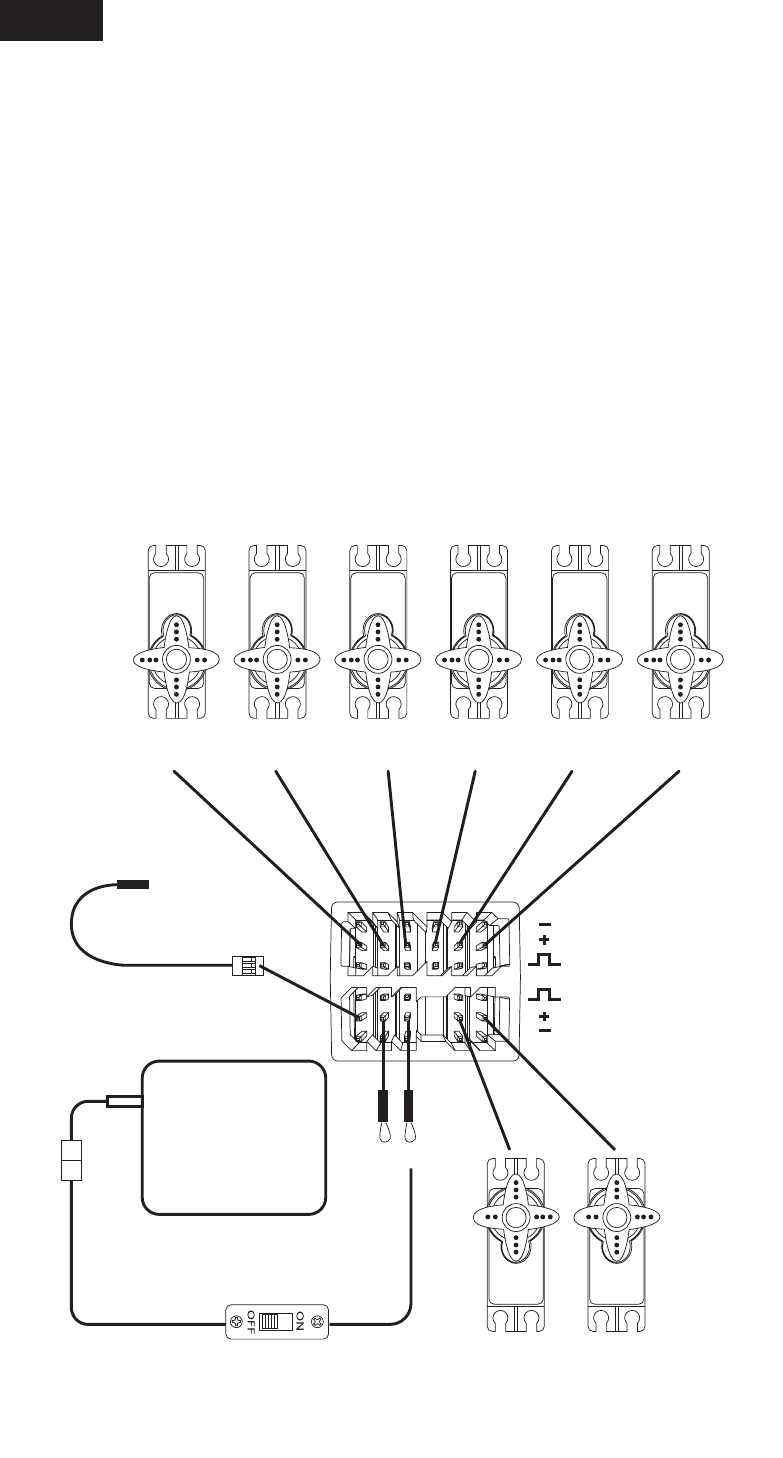

X+1 Servo X+2 Servo
X+7 Servo X+8 Servo
Jumper
To SRXL Port
Auxiliary Battery Pack
(optional)
On/Off Switch Harness (optional)
X+3 Servo X+4 Servo X+5 Servo X+6 Servo
