EN
AR6400L Specifications:
Type: DSM2 Ultra-Micro receiver with integrated brushed speed controller and two linear
servos
Channels: 6 channels or 4 channels plus X-Port
Modulation: DSM2
Dimension (WxLxH): 27.75 x 27.15 x 8.10mm
Weight: 3.9 g
Input Voltage Range: 1-cell LiPo 3.2 to 4.2V
Antenna Length: 31mm
Resolution: 1024
Compatibility: All DSM2 aircraft transmitters
Servos:
Force: 2.8 oz (79 g)
Stroke: 9.1mm
Speed: 0.14 sec
Speed Controller:
Type: Integrated brushed
Max continuous current: 2.0 amps
US Patent D578,146. PRC patent ZL 200720069025.2. Other Patents Pending.

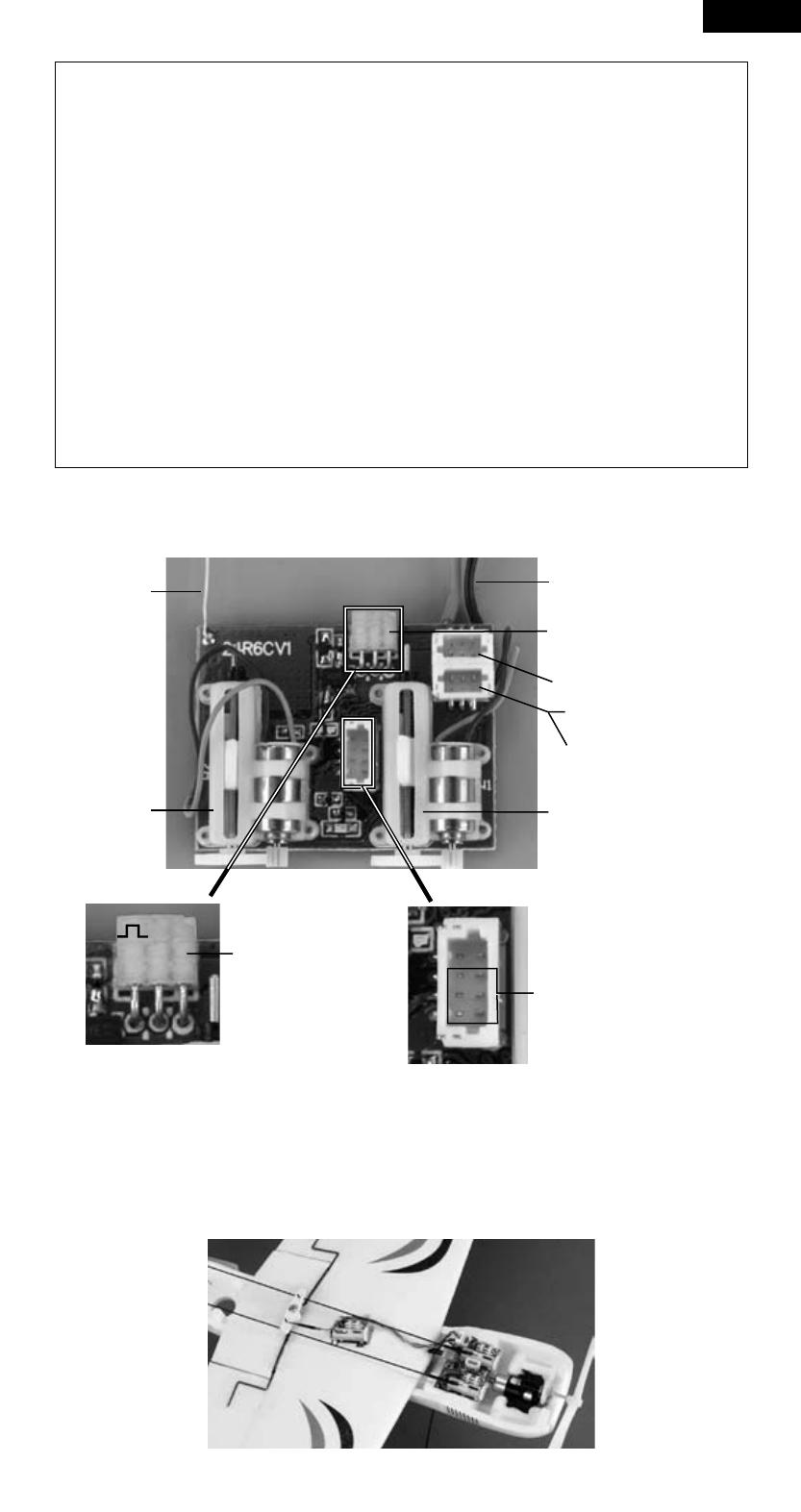

AR6400/AR6400L Features and Ports
Antenna
Rudder (CH4)
servo
X-Port (all 4 pins)
OR
Gear (CH5) (lower 3 pins)
Aileron (CH2)
Battery input
Reversed Aileron (CH2)
or
Aux1 (CH6)
Elevator (CH3)
servo
Brushed Motor output
(– + open)
– + open
+ –
ESC Brushless
(signal + – )
Receiver Installation
It is recommended to use double-sided foam tape strips and/or minimal hot glue in the corners to
install your receiver in the fuselage. Note that the servos need to be in the appropriate position to
attach to and drive the elevator and rudder pushrods. Note: Installation will vary depending upon
application.
