13
EN

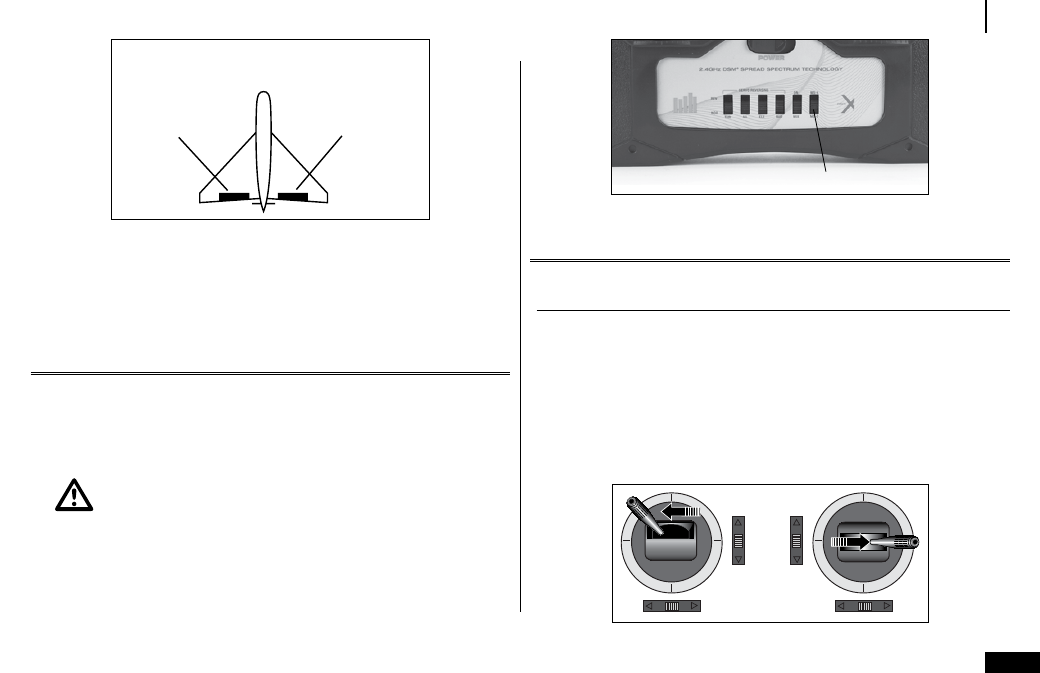

AILE Servo Port
(Left Elevon)
ELEV Servo Port
(Right Elevon)
Elevon Wing Type Connection
• ELEV servo port (right aileron)
• AILE servo port (left aileron)
Note: If proper servo direction cannot be achieved with the servo reversing
switches, swap the servo input leads from AILE to ELEV or vice versa.
MODES
Two versions of the DX4e are available: mode 1/3 and mode 2/4. The mode
switch changes the transmitter from mode 1 to mode 3 or from mode 2 to mode
4. See the Transmitter Control Identification section for more details about the
differences between modes.
CAUTION: Check the mode switch before flight to be sure it
is in the correct mode.
FRANCE RF SETTING
TO SET FRANCE MODE:
Push and hold the trainer button on the top of the transmitter while pushing and
holding the two sticks as shown below, then turn on the power switch.
After hearing a series of descending beep tones, release the trainer switch and
the sticks. The France setting is now turned on.
Bind the transmitter to the receiver for the change to take effect. See page 9 for
binding instructions.
mode switch
