8 SPEKTRUM DX7s • RADIO INSTRUCTION MANUAL
EN
E
G I
K

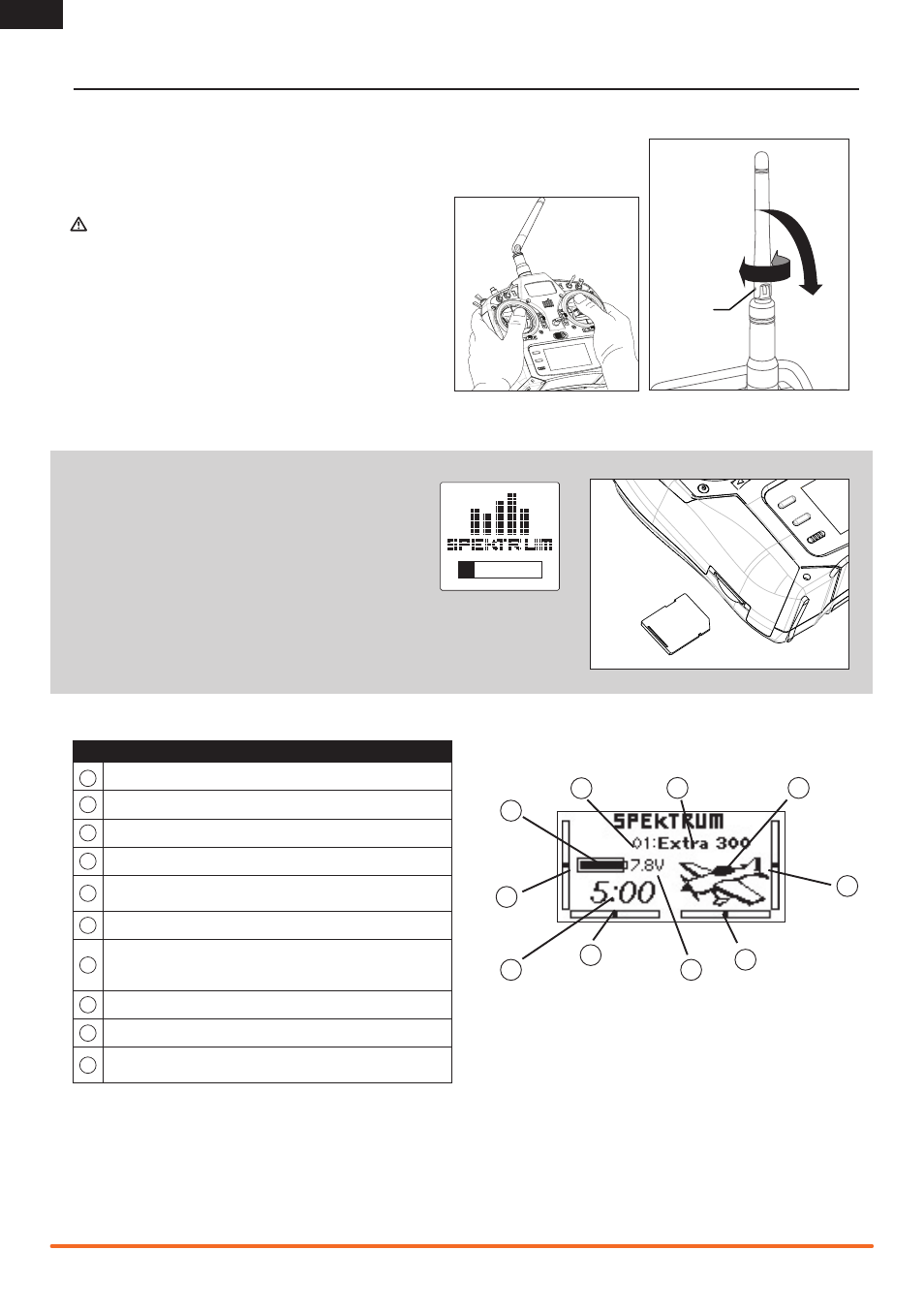

Main Screen
USING THE TRANSMITTER
Antenna
The transmitter antenna bends and turns at the hinge (A) and only bends
and turns to the front of the transmitter. The antenna cannot point to the
back of the transmitter. Turn the antenna tip to point away from the model
and ground. Signals transmit strongest from the antenna shaft, not the tip.
WARNING: Do not pick up the transmitter by the antenna.
Do not alter or put weight on the antenna. Damage to antenna
parts can decrease transmitter signal strength, which can result
in loss of model control, injury or property damage.
NOTICE: While DSMX allows you to use more than 40 transmit-
ters simultaneously, when using DSM2 receivers, DSMX receiv-
ers in DSM2 mode or transmitters in DSM2 mode, do not use
more than 40 transmitters simultaneously.
A
SD Card
Use an SD Card and the Transfer SD Card screen in the
System Setup list to to do the following:
• Import (copy) models from another DX7s transmitter
• Export (transfer) models to another DX7s transmitter
• Update AirWare™ software in the transmitter
• Share model files among DX7s transmitters.
Put an SD card in the SD card slot on the left side of the transmit-
ter with the card’s label facing forward.
Function
A Transmitter Battery Charge Level
B Model Memory
C Model Name
D Model Type
E
Elevator Trim (Mode 2)
Throttle Trim (Mode 1)
F Aileron Trim
G
Digital Battery Voltage
(an alarm sounds and the screen flashes when battery charge gets
down to 4.3V when using an NiMH battery or 6.4V for a LiPo battery.)
H Rudder Trim
I Timer
J
Throttle Trim (Mode 2)
Elevator Trim (Mode 1)
J
I
H
G
F
E
D C B
A
