SPEKTRUM DX4C • TRANSMITTER INSTRUCTION MANUAL
EN
INSTALLING BATTERIES
CAUTION: NEVER remove the transmitter batteries
while the model is powered on. Loss of model control,
damage or injury may occur.

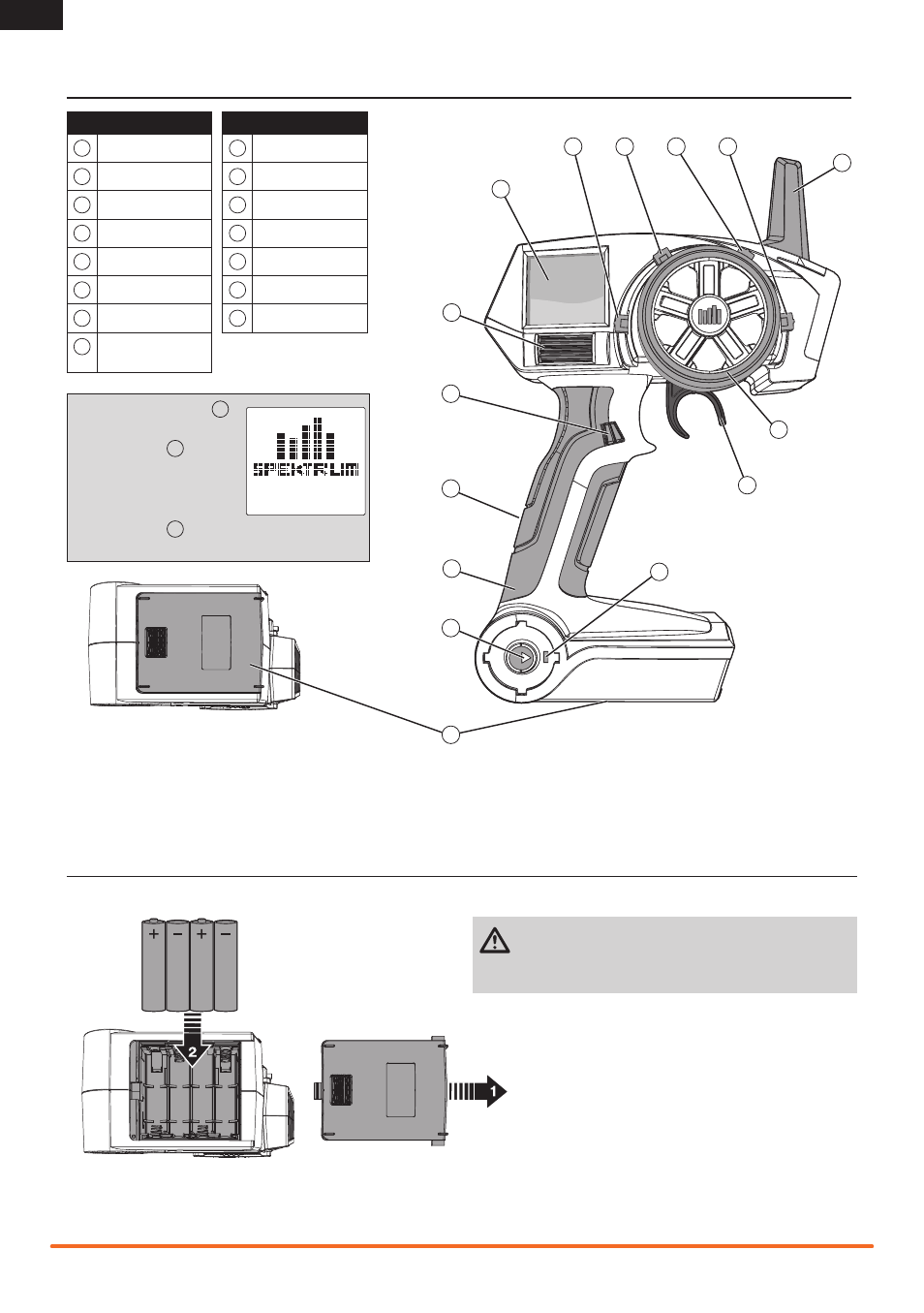

IDENTIFYING CONTROLS AND SWITCHES
Function
A Button A
B Button B
C Button C
D Button D
E Button E
F LCD Screen
G Roller Selector
H
Memory Card Port
(under rubber grip)
Function
I Rubber Grip
J Power Switch
K Power LED
L Battery Cover
M Throttle Trigger
N Steering Wheel
O Antenna
O
N
M
J
I
H
G
F
E
D C B A
L
Press the power switch to
power ON the transmitter.
The Power LED will
come on, a Spektrum logo
screen will show, then the
Main Screen will show on
the LCD screen .
K
K
F
J
