2 SPEKTRUM DX2E USER GUIDE
EN
RECEIvER COMPATIBILITy
The DX2E is compatible with all Spektrum ™ DSM ® , DSM2 ™
and Marine surface receivers.

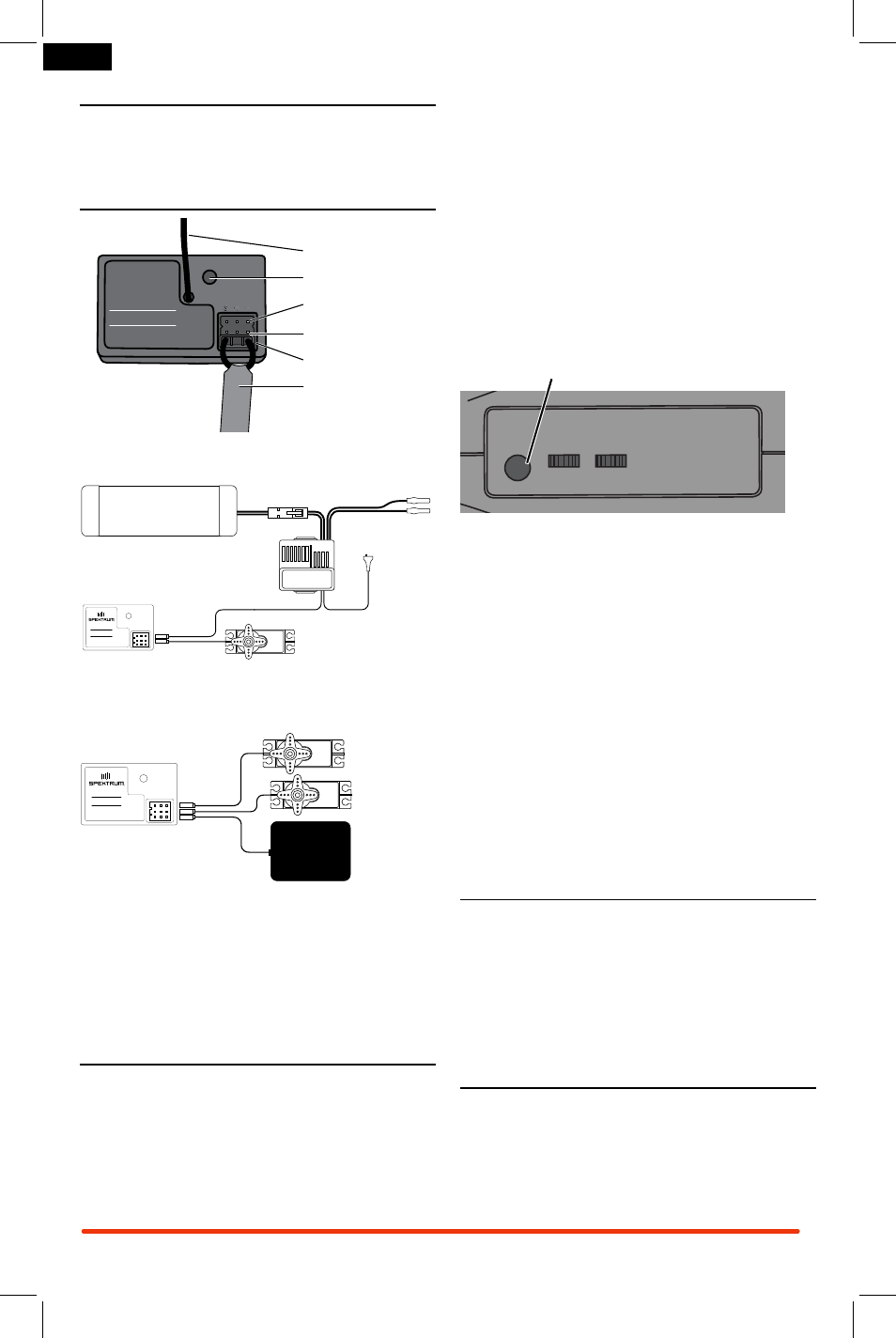

RECEIvER CONNECTION
AND INSTALLATION
Antenna
LED
Throttle Port
Steering Port
Bind/Battery Port
Bind Plug
Typical Electric Installation
Battery
To Motor
Electronic
Speed Control
Receiver
Steering Servo
SR200
THR
STR
BIND
2.4Ghz DSM
SPORT SURFACE RECEIVER
Typical Gas Installation
Receiver
Steering Servo
Throttle Servo
SR200
THR
STR
BIND
2.4Ghz DSM
SPORT SURFACE RECEIVER
Battery
Install the Receiver in your vehicle using double-sided foam
servo tape. Foam servo tape will hold the receiver in place
and help isolate it from vibrations. Mount the antenna up
and away from the vehicle in an antenna tube. The higher
up the antenna is, the better signal it will receive.
NOTICE: Do not cut the antenna.
BINDING A RECEIvER
Binding is the process of programming the receiver to
recognize the GUID (Globally Unique Identifier) code of a
single specific transmitter. When a receiver is bound to
a transmitter, the receiver will only respond to that specific
transmitter. The DX2E and SR200 are bound at the factory,
but if you need to rebind for any reason, please follow
these steps:
1. With the receiver off, insert the bind plug into the BIND
port on the receiver.
2. Power the receiver through any other port. The green
LED will flash continuously, indicating the receiver is
in bind mode.
3. With the steering wheel and throttle trigger in the desired
preset failsafe positions (see the Failsafe section on this
page for more information), press and hold the bind
button and turn on the transmitter. The green LED on the
front of the transmitter will flash within three seconds,
indicating the transmitter is in bind mode. Release the
bind button when the green LED flashes. Continue to
hold the failsafe positions until the binding process
is complete.
Bind Button
BIND TH ST
N R N R
4. The LED on the receiver will glow solid when the
transmitter and receiver are bound.
5. Remove the bind plug and store it in a convenient place.
You must rebind when:
• Different failsafe positions are desired e.g., when throttle
or steering reversing has been changed.
• Changing receiver types e.g., changing from a DSM
receiver to a DSM2 or Marine receiver.
• Binding the receiver to a different transmitter.
Some Spektrum receivers, like the SR3001, use a bind
button rather than a bind plug. The binding process is the
same with this receiver; however, instead of inserting the
plug before powering up the receiver, press and hold the
bind button while powering up the receiver to enter bind
mode.
FAILSAFE
Failsafe positions are also set during binding. In the unlikely
event that the radio link is lost during use, the receiver will
drive the servos to their preprogrammed failsafe positions
(normally full brakes and straight steering). If the receiver
is turned on prior to turning on the transmitter, the receiver
will enter failsafe mode. When the transmitter is turned on,
normal control is resumed. For more information on setting
the failsafe, refer to the Binding a Receiver section above.
SERvO REvERSING
If a right steering command does not result in the wheels
turning right (and vice versa), the channel may need to be
reversed. To reverse a channel, switch the position of the
correlating switch—“N” is for normal, “R” is for reverse. You
can use a small screwdriver to move the switch if necessary.
THR
STR
BIND
SR200
