AT-MCF6xx and AT-MCF12xx Installation Guide
9
10Base-T, Management, and RS232 Ports
These ports (see Figure 6) are reserved for future development.

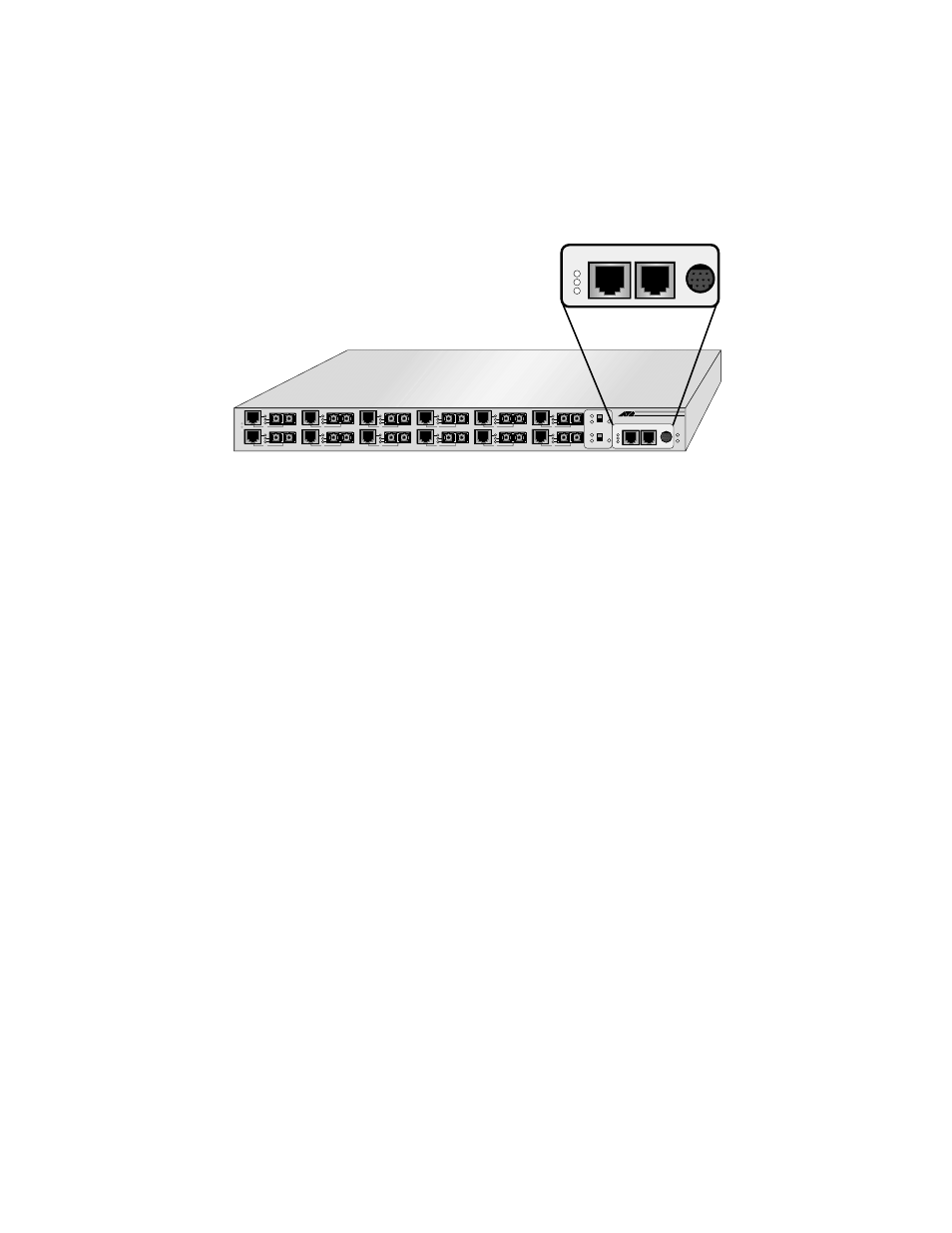

Figure 6 10Base-T, Management, and RS232 Ports
Network Topology
The value of the AT-MCF6xx and AT-MCF12xx Multichannel Media
Converters is that they allow you to extend the reach of your network and to
interconnect widespread network devices and subnetworks into one
integrated network.
Figure 7 illustrates an example of a network that incorporates a model
AT-MCF6SC unit to interconnect dispersed network devices. The model has
SC type fiber optic connectors and a range of 2 kilometers (1.24 miles) on the
fiber optic ports. At the top of the topology is an AT-8224XL Fast Ethernet
switch. Six of the twisted pair ports on the switch are connected to the six
twisted pair ports on the AT-MCF6SC media converter. Fiber optic cabling
from the AT-MCF6SC unit connects the media converter to the switches,
hubs, and workstation that comprise the network.
