AT-MCF6xx and AT-MCF12xx Installation Guide
3
Features and Components
This section describes the features and components of the AT-MCF6xx and

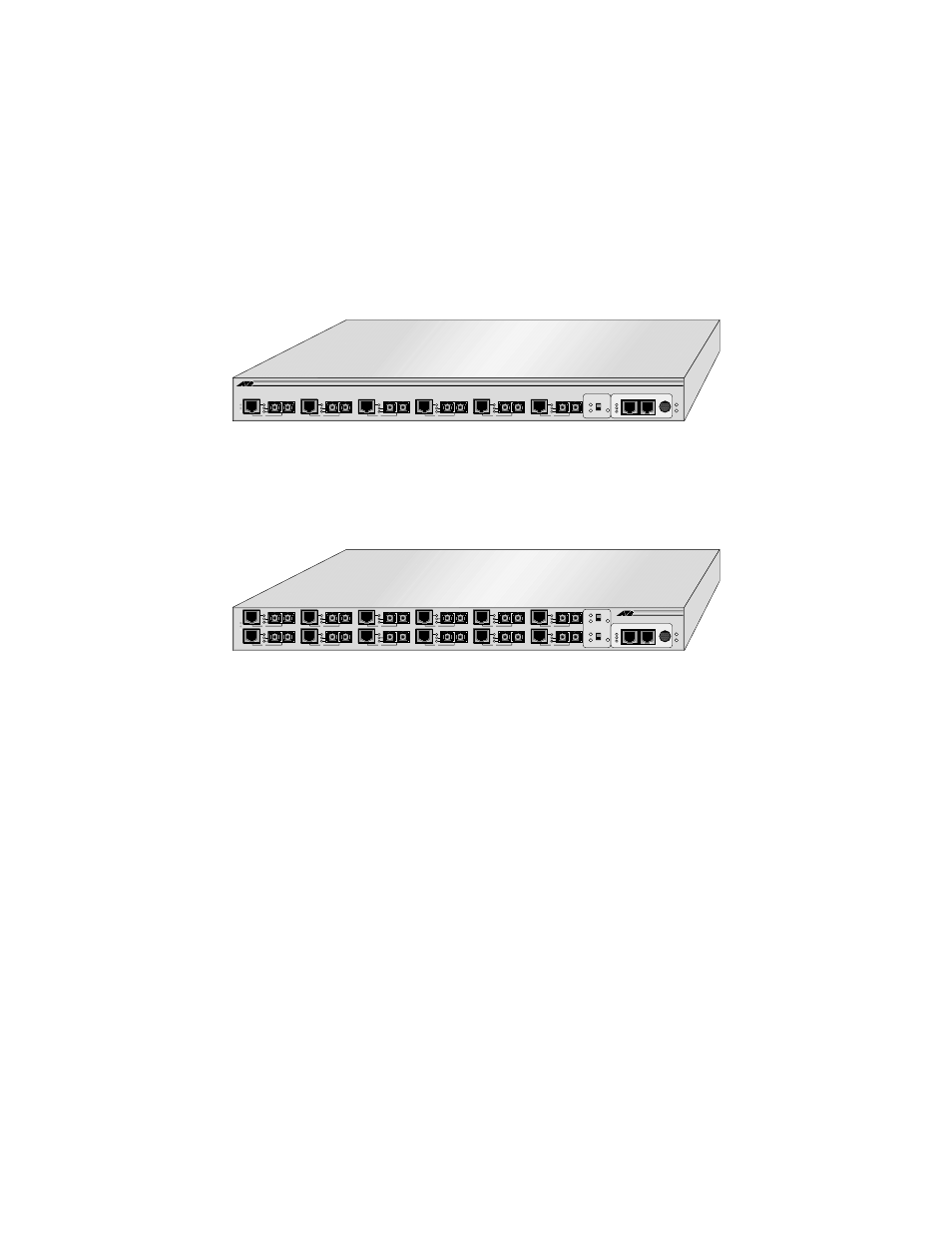

AT-MCF12xx Multichannel Media Converters. Figure 1 illustrates the front
panel of an AT-MCF6xx system.
Figure 1 Front Panel of the AT-MC6xx Multichannel Media Converter (Model AT-MCF6SC)
Figure 2 illustrates the front panel of an AT-MCF12xx system.
Figure 2 Front Panel of the AT-MCF12xx Multichannel Media Converter (Model AT-MCF12SC)
