Page 6
3. Click Add Port. On Windows 95/98, you will see the
following Add Port screen:

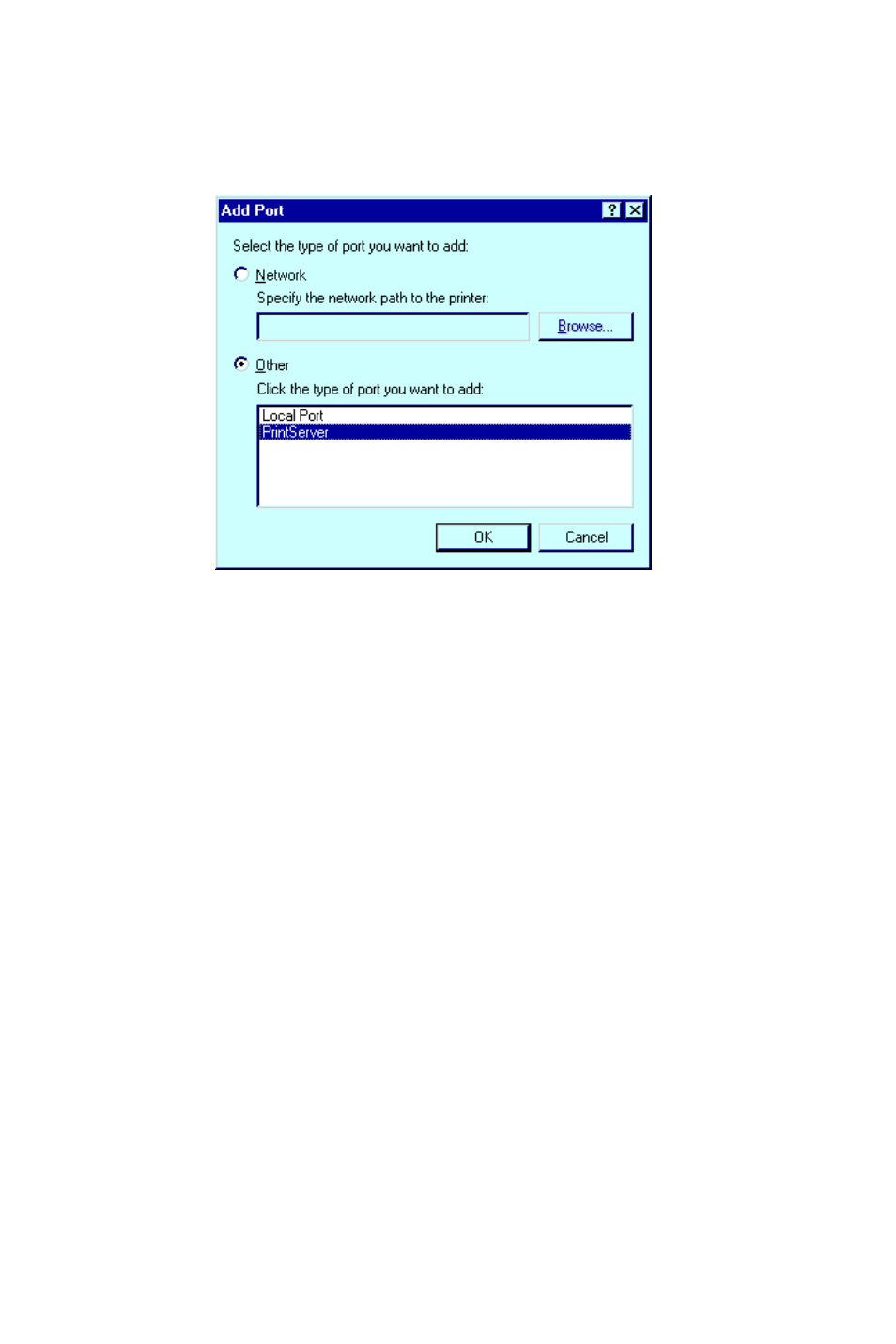

Figure 3 Add Port (Win95 PtP)
4. Select Other as the type of port you want to add and select
the PrintServer port. Then click OK and the Configure
PrintServer window (see Figure 1) will appear.
5. On the Configure PrintServer screen (see Figure 1):
•
Select the correct Print Server.
•
Use Select Device Port to select the a port which is
not yet installed.
6. Repeat steps 3 to 5 to add the 3
rd
port, if required.
7. Run the Add Printer wizard to install the correct printer for
each port, as you did for the first port.
•
On the Available Ports screen (below), ensure that
you select the port to which the printer is connected,
as shown below.
•
For Windows NT, ensure that ONLY the correct
PrintServer port is selected.
