AT-8116 Installation Guide

3

Front Panel

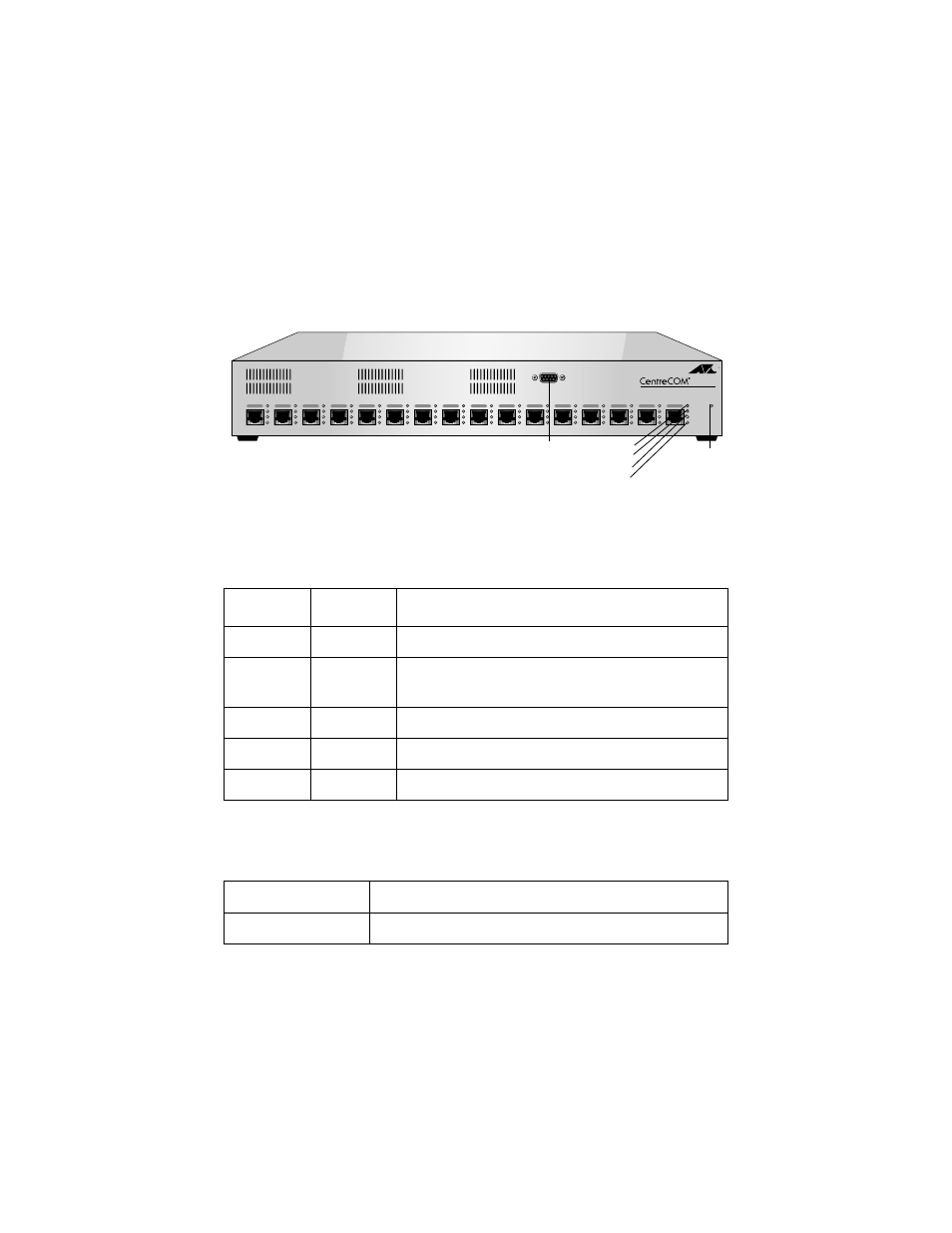

The front panel of the AT-8116 is illustrated below in Figure 2. The
following tables describe its various LEDs and components and their
functions.

Figure 2:

AT-8116 Front Panel

Table 1:

AT-8116 LEDs and Ports

LED

Color

Description

100M

Green

ON

indicates 100Mbps mode

COLN/
FULL DUP

Yellow or
Green

Yellow

Blinking

for port collision; Green

ON

when

port is configured for Full Duplex

LINK

Green

ON

indicates a valid link connection

ACT

Green

Blinking

indicates port activity

Power

Green

ON

indicates normal operation mode

Table 2:

RJ45 and RS232 Ports

RJ45

16, RJ45 10/100 Mb UTP ports

RS232

One, RS232 connection for NMS

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

POWER

100M

COLN/FULL DUP

LINK

ACT

8116

10BASE-T/100BASE-TX 16 PORT ETHERNET SWITCH with Management

TERMINAL

RS232C

RS232C

100M

COLN/Full DUP

LINK

ACT

Power
