6
Installing the Switch in a Rack
To install the switch in a standard 19-inch rack, perform the following
procedure:
1. Remove all components from the shipping package and store the
packaging material in a safe location.
2. To prepare the switch, place it on a level, secure surface.
3. If you purchased an expansion module for the switch, install the module by
following the instructions in the AT-A15/SX, AT-A15/LX, AT-A16,
AT-A17, AT-A18, and AT-A19 Quick Install Guide. However, do not power
on the switch until you complete the installation steps.

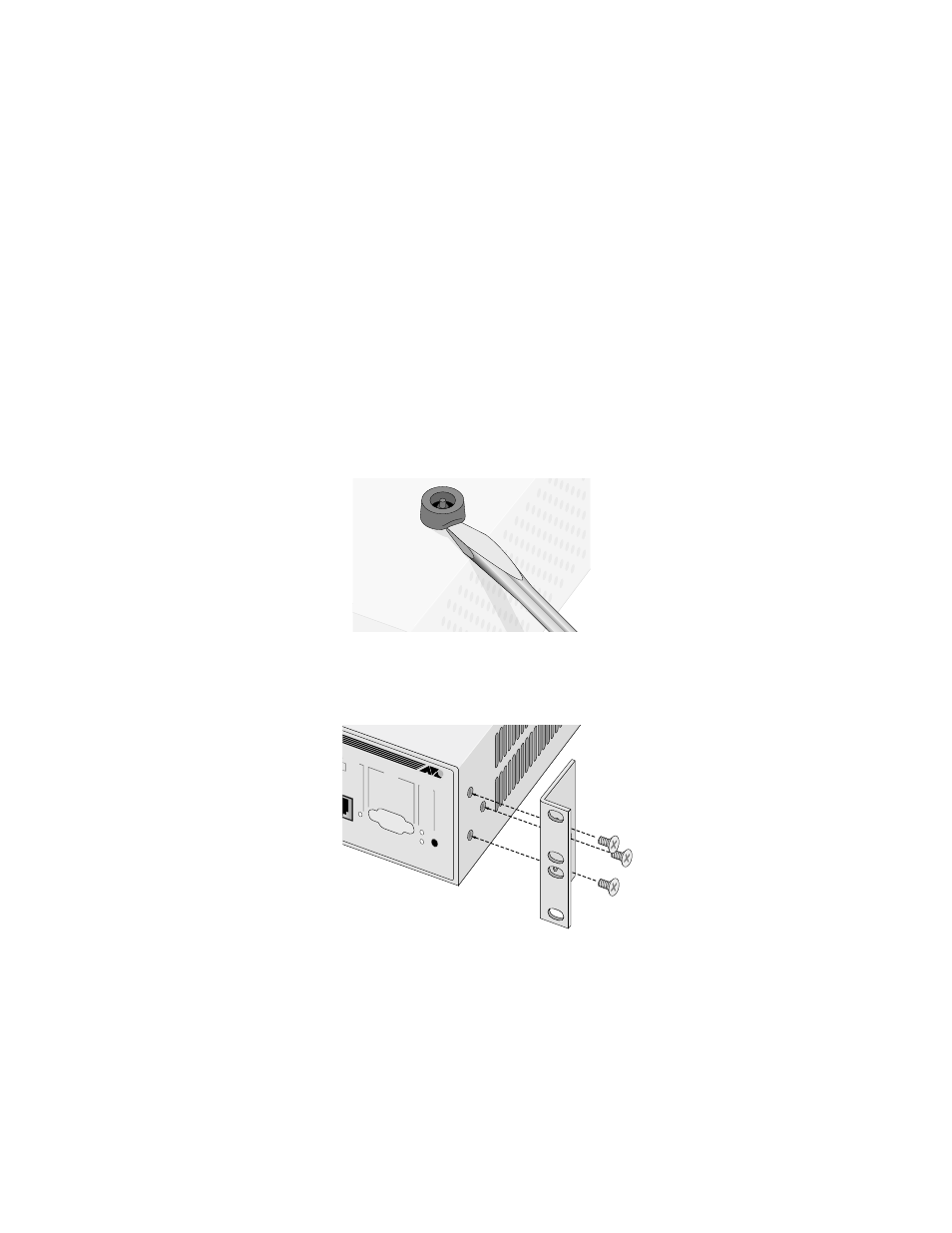

4. Remove the snap-on plastic feet from the bottom of the switch, as shown in
Figure 5.
Figure 5 Removing the Feet
5. Attach the rackmounting brackets to each side of the switch, using the six
flathead screws that came with the switch package as shown in Figure 6.
Figure 6 Attaching Rackmounting Brackets
6. Mount the switch in the rack using standard screws (not provided).
