AT-FS716L Fast Ethernet Switch Installation Guide
31
7. Position and hang the switch onto the wall using the two keyhole slots
located in the bottom of the switch, as illustrated in Figure 9.

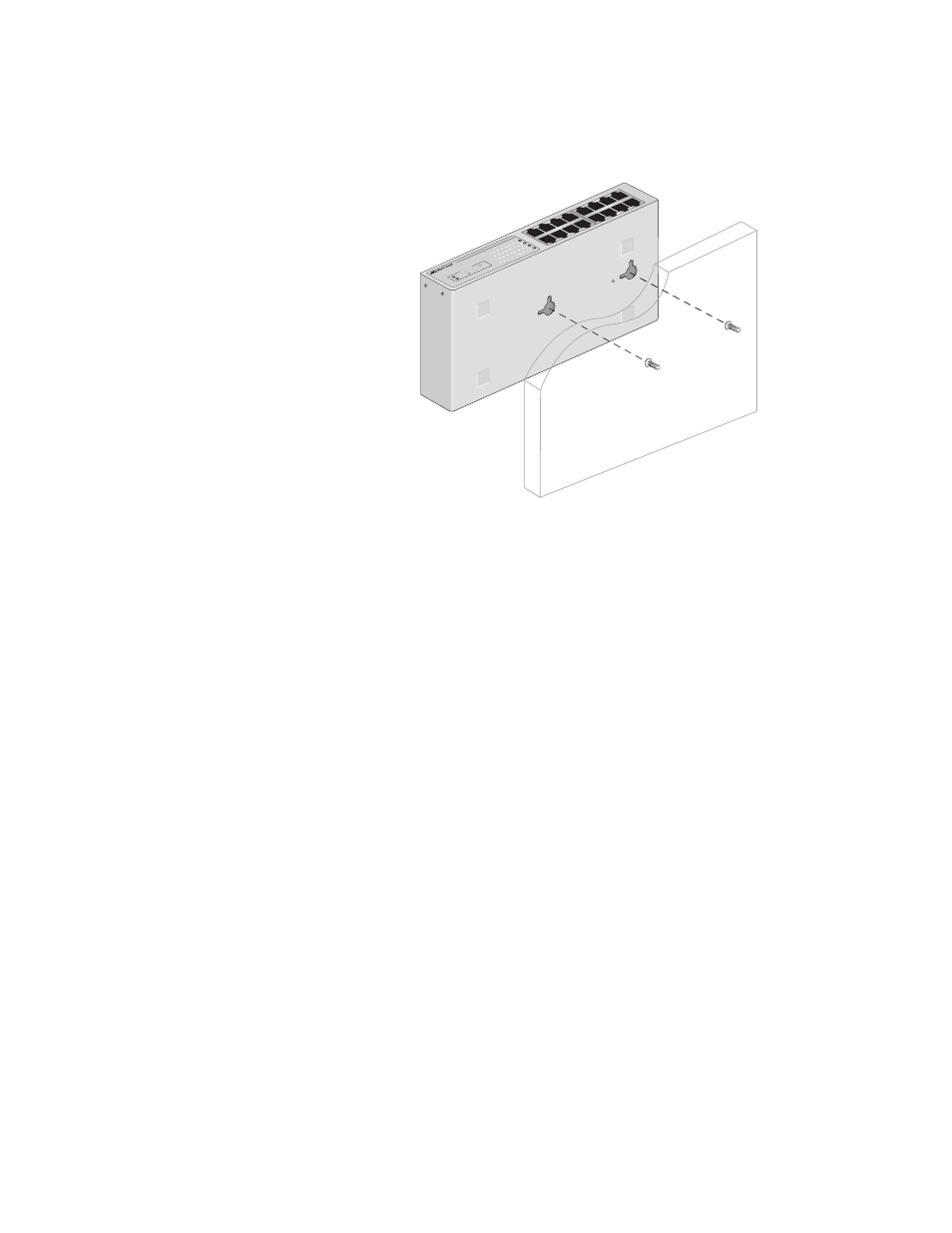

Figure 9. Wallmounting an AT-FS716L Switch
8. Make sure that the switch is securely mounted onto the wall.
The switch is now ready for cabling.
1016
1 3 5 7 9 11 13 15
2 4 6 8 10 12 14 16
AT- FS716L
16 Port 10/100 M
bps Fas t Ether net Switch 10 L INK ACT
100 LIN K ACT
FDX
HDX POR T A CTIVITY CO L POW ER
1
3
5
7
9
11
13 15
2
4
6
8
10
12 1 4
16
