Chapter 1: Product Description
12
Overview
The AT-FS716L switch is an unmanaged sixteen-port Fast Ethernet
switch.
This switch offers a range of features and capabilities that can be used in
a variety of network configurations and topologies, such as:
ˆ Creating small workgroups with dedicated 10 megabits per second
(Mbps) and 100 Mbps links to your network devices, such as
workstations, servers, printers, and routers.
ˆ Interconnecting Ethernet hubs or switches to provide a bridge between
the different workgroups of your network.
ˆ Connecting to other Ethernet switches so that they can be part of a
larger Ethernet network.
ˆ Maximizing your existing network by providing full-duplex operation
over a twisted pair port.

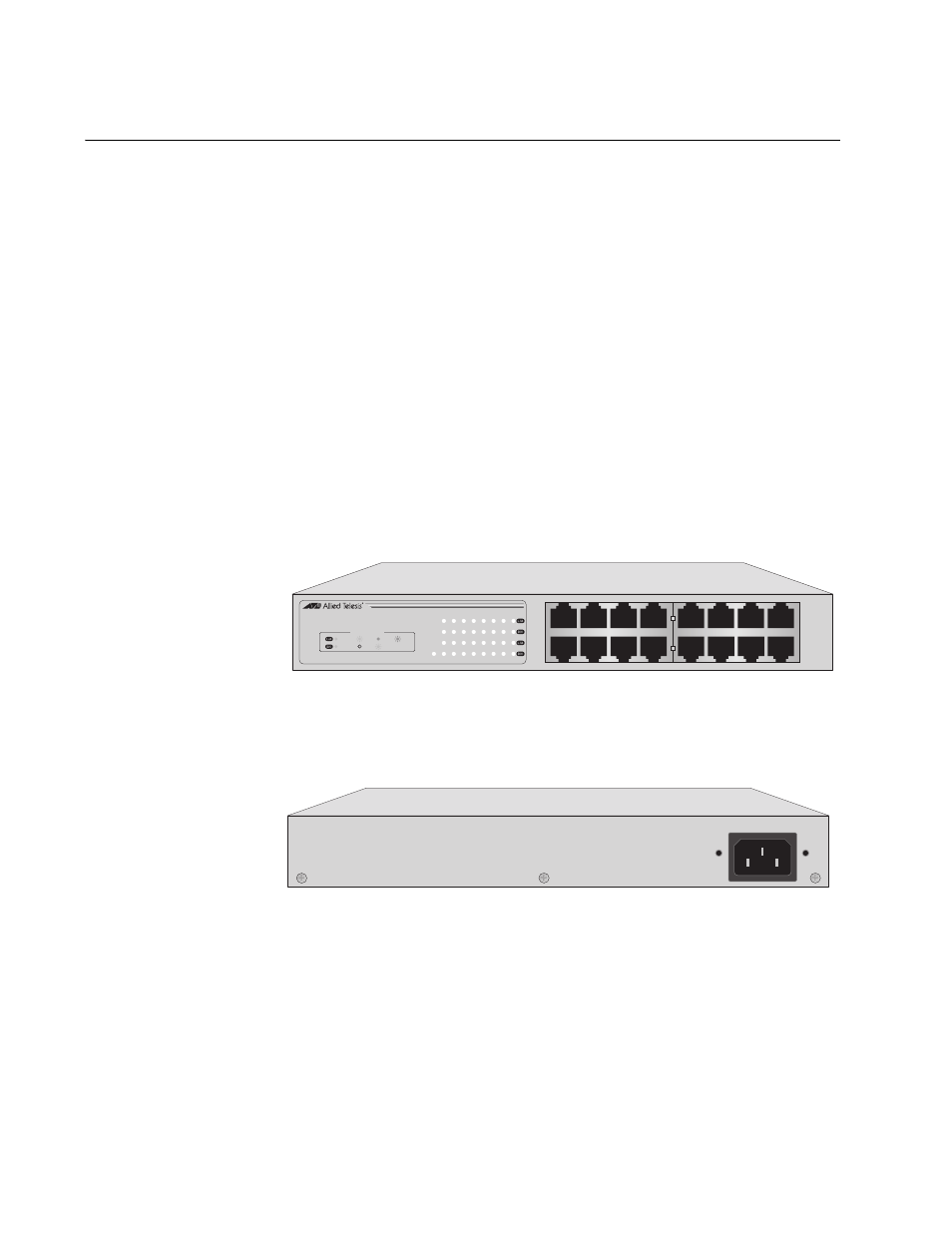

Figure 1 illustrates the front panel of the AT-FS716L switch.
Figure 1. AT-FS716L Front Panel
Figure 2 illustrates the back panel of the AT-FS716L switch.
Figure 2. AT-FS716L Back Panel
The AT-FS716L switch features sixteen 10/100 Mbps ports with RJ-45
connectors. Each twisted pair port has an RJ-45 connector with a
maximum operating distance of 100 meters (328 feet). The twisted pair
port can operate at 10 Mbps or 100 Mbps, and in half- or full-duplex mode.
The AT-FS716L switch can be used on a desktop, or mounted to a wall or
in a rack. The switch is easy to install and does not require software
configuration or management.
1010
1 3 5 7 9 11 13 15
2 4 6 8 10 12 14 16
AT-FS716L
16 Port 10/100 Mbps Fast Ethernet Switch
10 LINK ACT 100 LINK ACT
FDX HDX
PORT ACTIVITY
COL
POWER
1 3 5 7 9 11 13 15
2 4 6 8 10 12 14 16
1011
100-240V~ 50-60Hz 0.5A
