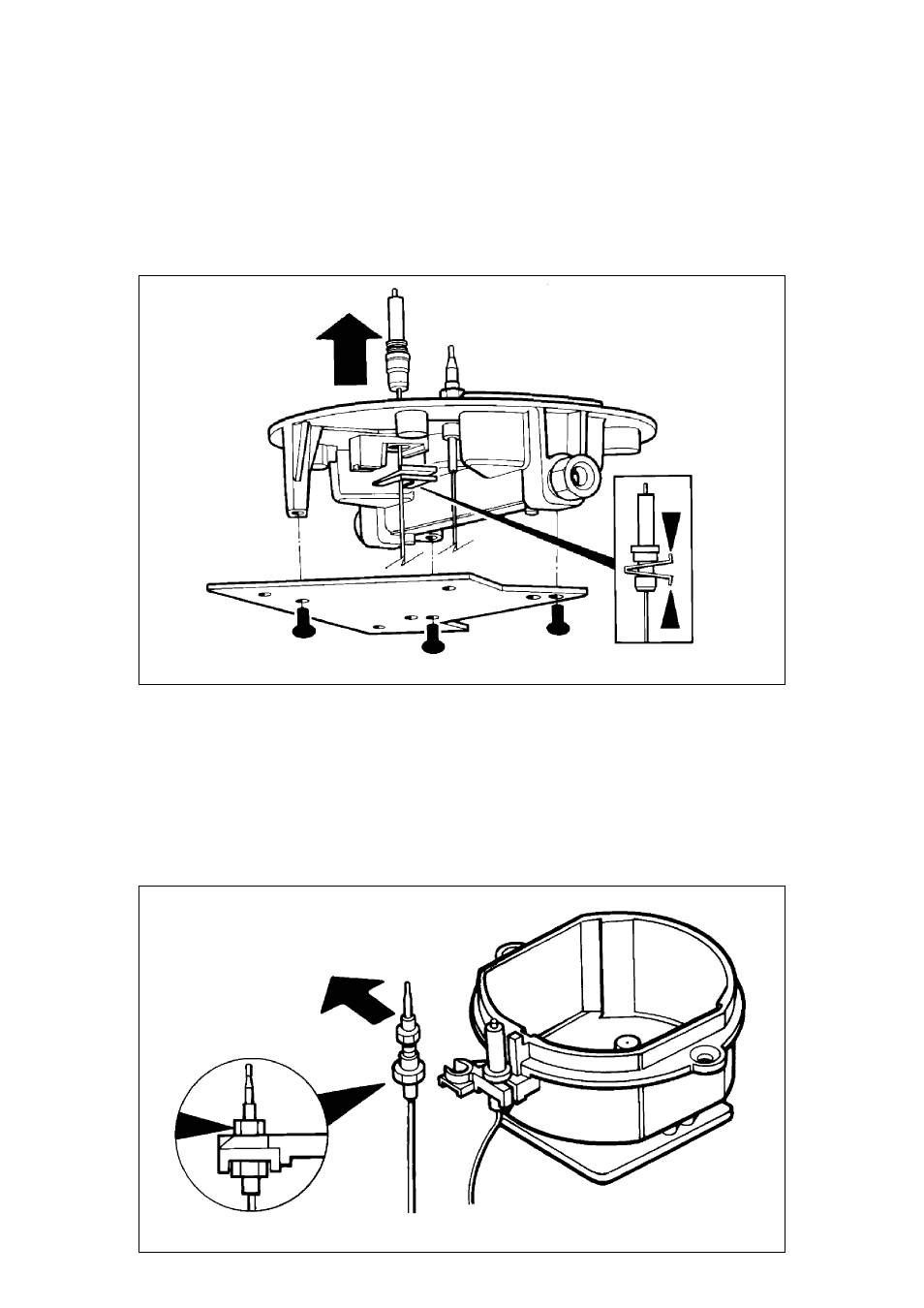

L. TO REMOVE THERMOCOUPLE (LHF BURNER)
1. Isolate from electric supply.
2. Proceed as ‘TO REMOVE THE HOTPLATE’.
3. Undo the nut fixing the thermocouple in place.
4. Push the thermocouple down and pull out from under the burner.
5. Disconnect the other end of the thermocouple cable from the gas valve. This is a push on
jack connector.
6. Re-assemble in reverse order.
M. TO REMOVE THERMOCOUPLE (LHR, RHR, RHF BURNERS)
1. Isolate from electric supply.
2. Proceed as ‘TO REMOVE THE HOTPLATE’.
3. Undo the nut fixing the thermocouple in place.
4. Push the thermocouple down and slide to the side to remove from the burner.
5. Disconnect the other end of the thermocouple cable from the gas valve, this is a push on
electrical terminal.
6. Re-assemble in reverse order.
51
Fig. 30 DESN 513531
Fig. 29 DESN 513532
