HOTPLATE CASTINGS

1. Attach earth cable from LH casting to cooker chassis and located over burner bodies. Repeat

for RH casting and ensure that the gasket is fitted where the castings overlap. Ensure that
earth cables are attached. (See Fig. 6A)

2. Secure castings using 4 profiled fixing nuts. DO NOT OVERTIGHTEN. (See Fig. 6B).

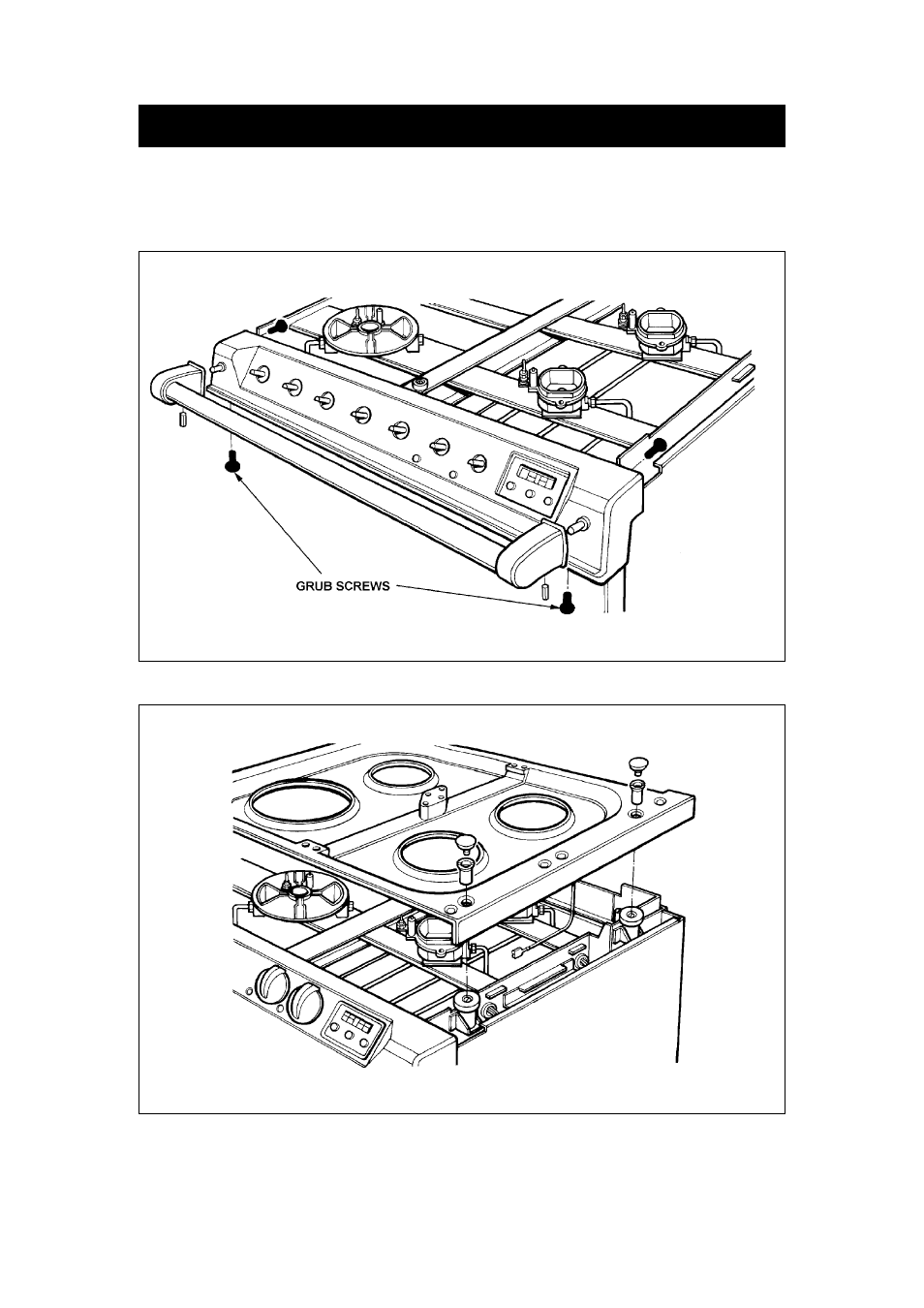

FITTING OF HOTPLATE CASTING AND PAN SUPPORTS

Fig. 6B

Fig. 6A

DESN 513510

DESN 513509
