NOTE: THESE INSTRUCTIONS SHOULD BE LEFT
WITH THE APPLIANCE AND THE USER TO RETAIN
FOR FUTURE REFERENCE.
Aga Gas Fired ranges are delivered unassembled.
Before installation can be made the site is inspected for
suitability by an Authorised Aga Distributor and corrected
where necessary to conform with local installation codes
or in the absence of local codes with:
In Canada:
The CAN/CGA-B149 installation codes.
In U.S.:
The National Fuel Gas Code ANSI Z223. 1-latest edition.
Assembly is undertaken on site by the same Aga
Distributor to ensure correct performance and safety.
It is essential that the base or hearth on which the range
stands should be level and strong enough to support the
weight of the range.
Approximate weights:-
Models GC (Open Flue) and GC (Direct Vent)
- 408kg (900lb)
Models GE (Open Flue) and GC (Direct Vent)
- 585kg (1290lb)
The top face of the hearth must be of non-combustible
material for a minimum thickness of 12mm (1/2in) and
comply with current Building Regulations and National
Fire Laws.
The wall behind the cooker draft hood and flue connector
must have a minimum air gap of 57mm (2 1/4”). Any
openings in the wall behind the range or in the floor under
the range must be sealed before appliance installation.
Ensure the draft hood is securely bolted to the support
spigot as shown in Fig. 2.
NOTE: THIS IS NORMALLY FITTED AND SECURED BY
THE FACTORY BEFORE DESPATCH.
The wall behind the range must be the outside wall for
the venting of flue products. Wall thickness between
150mm (6 in) and 355mm (14 in) can be catered for at the
same time as site inspection.
Alternatively, special lengths can be offered to order up to
a maximum of 610mm (24 in) long.

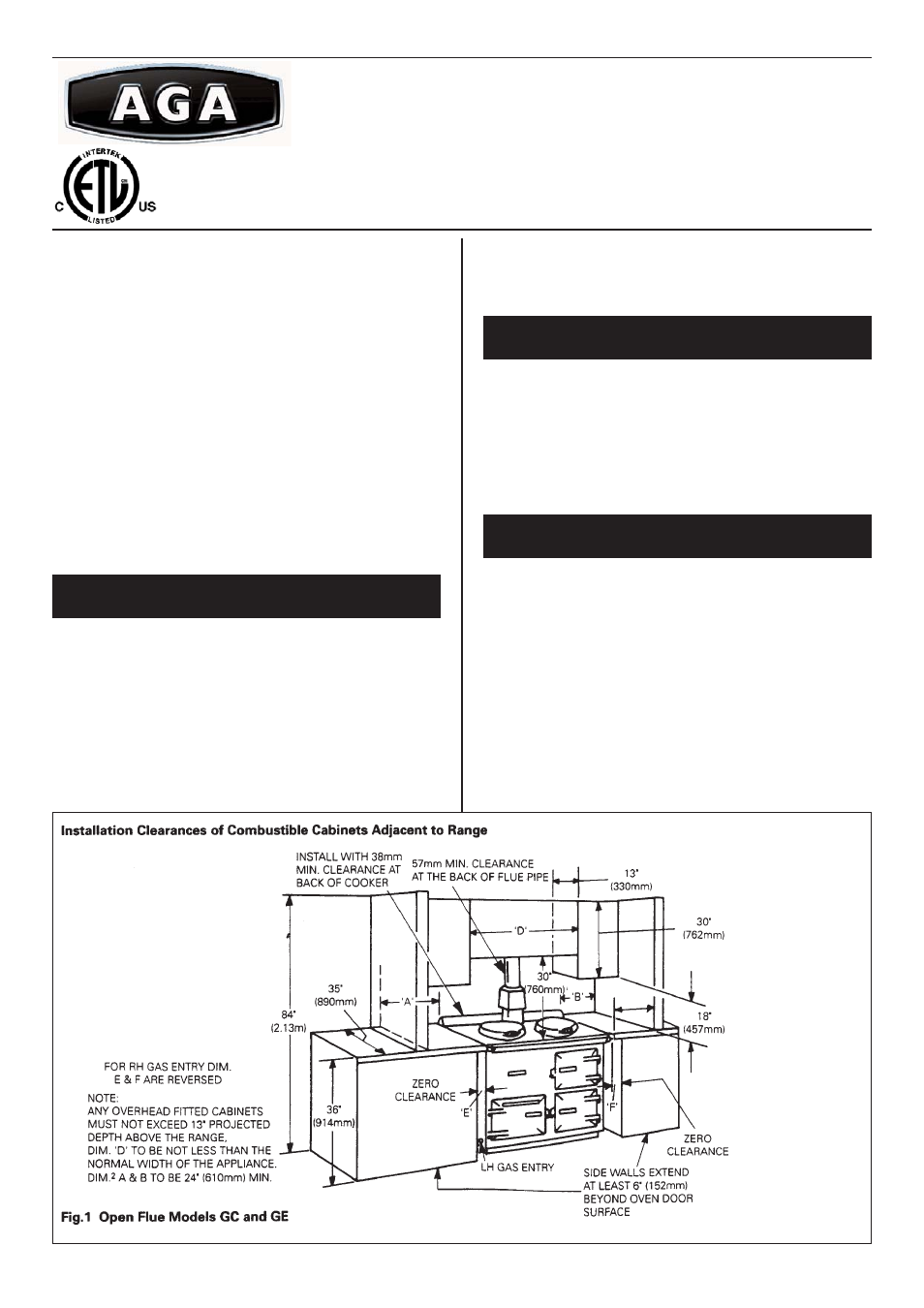

Open Flue - Models GC and GE
Installation Instructions for Aga Gas Fired Range
Models:
GC Open Flue Range (2 Oven)
GC Direct Vent Range (2 Oven)
GE Open Flue Range (4 Oven)
GE Direct Vent Range (4 Oven)
For U.S. and Canadian Markets
1 04/08 EINS 33644
BASE OR HEARTH
OPEN FLUE RANGE -
MODELS GC AND GE
DIRECT VENT RANGE-
MODELS GC AND GE
